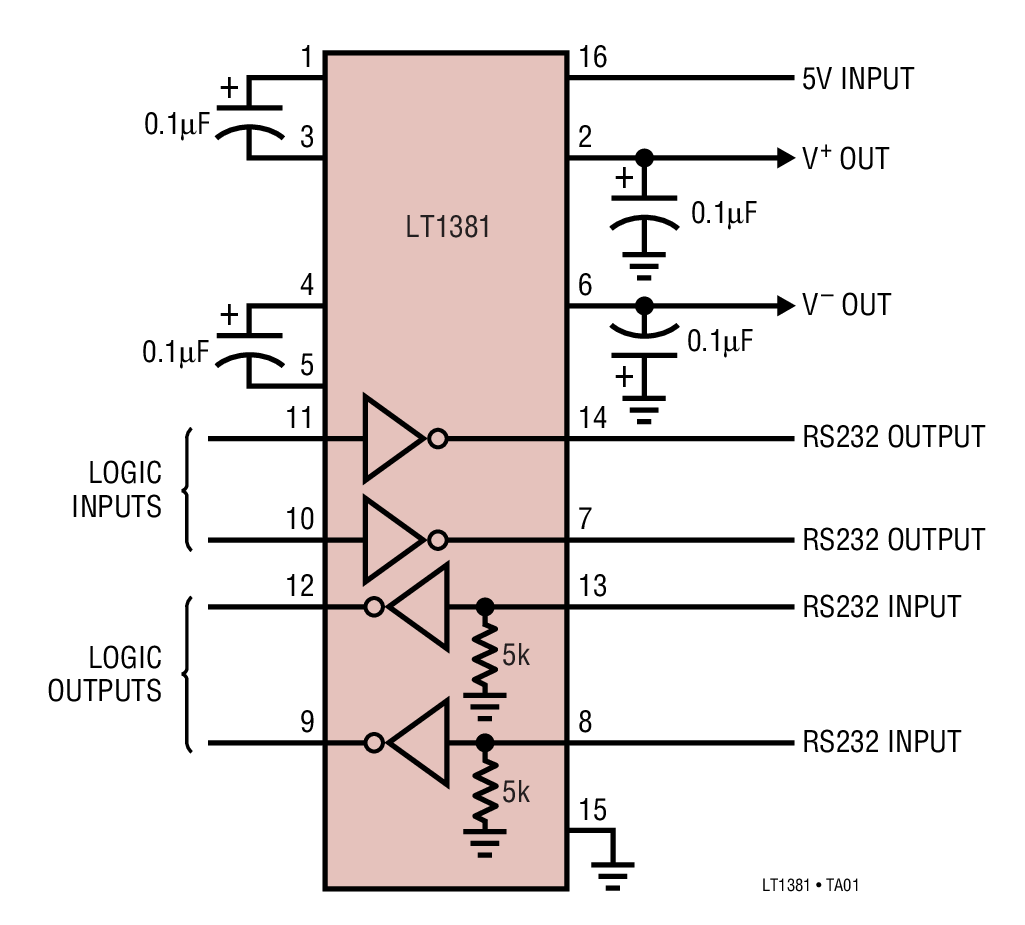

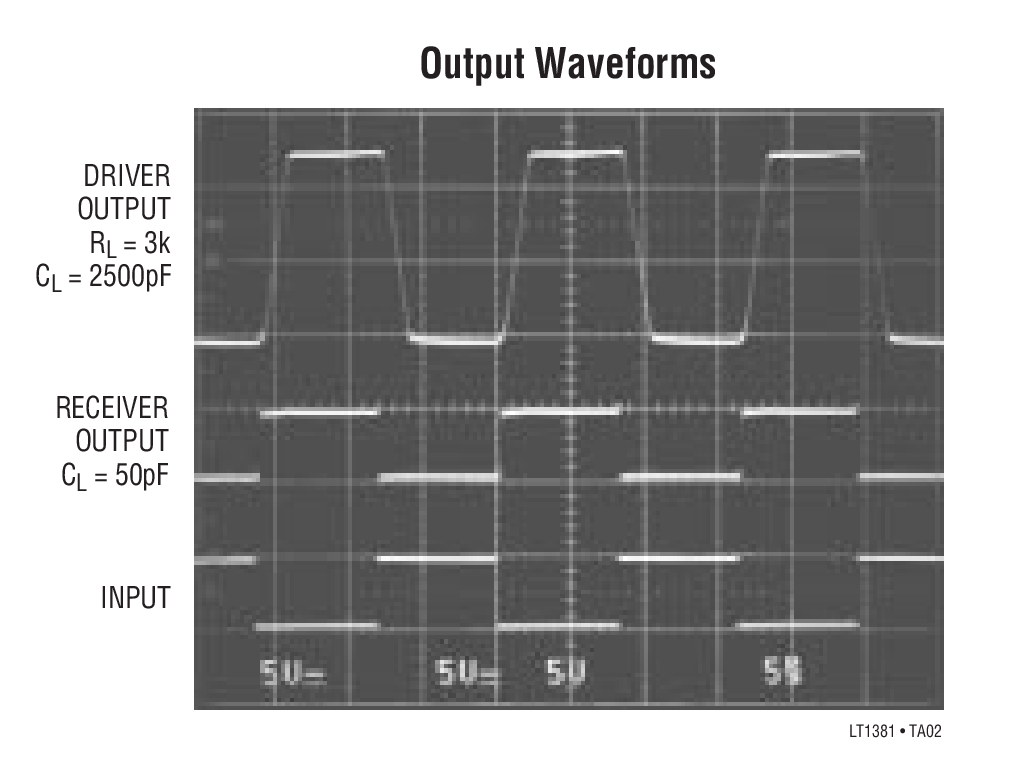

LT1381 - 典型应用图例：
LT1381典型应用图例一
LT1381典型应用图例二

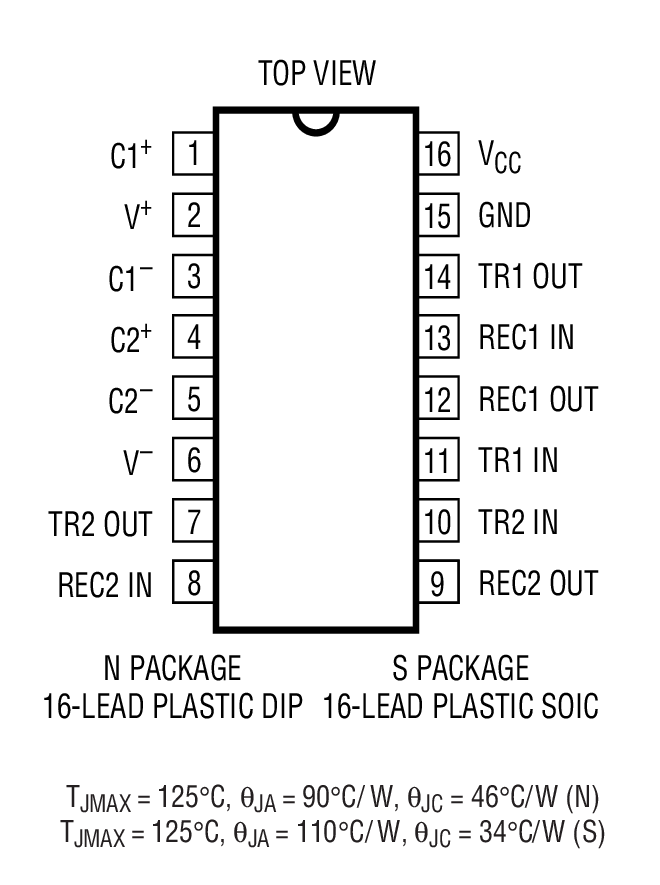

LT1381 - 封装图解：
LT1381封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1381介绍

LT1381 - LT1381是Low Power 5V RS232 Dual Driver/Receiver with 0.1µF Capacitors

LT1381是LINEAR凌力尔特公司的一款RS232 / RS562 收发器产品，LT1381是LT1381是Low Power 5V RS232 Dual Driver/Receiver with 0.1µF Capacitors，本站介绍了LT1381的封装应用图解、特点和优点、功能等，并给出了与LT1381相关的LINEAR元器件型号供参考。

LT1381 - LT1381是Low Power 5V RS232 Dual Driver/Receiver with 0.1µF Capacitors - RS232 / RS562 收发器 - 接口器件 - 凌力尔特

LT1381 - Low Power 5V RS232 Dual Driver/Receiver with 0.1µF Capacitors

LT1381 - Low Power 5V RS232 Dual Driver/Receiver with 0.1µF Capacitors - Linear Technology（凌力尔特）

功能描述
The LT®1381 is a dual RS232 driver/receiver pair with integral charge pump to generate RS232 voltage levels from a single 5V supply. The circuit features rugged bipolar design to provide operating fault tolerance and ESD protection unmatched by competing CMOS designs. Using only 0.1µF external capacitors, the circuit consumes only 40mW of power and can operate to 120kbaud even while driving heavy capacitive loads. New ESD structures on the chip allow the LT1381 to survive multiple ±10kV strikes, eliminating the need for costly TransZorbs® on the RS232 line pins. Driver outputs are protected from overload and can be shorted to ground or up to ±25V without damage. During power-off conditions, driver and receiver outputs are in a high impedance state, allowing line sharing.
特点
  • ESD Protection over ±10kV
  • Low Cost
  • Uses Small Capacitors: 0.1µF
  • CMOS Comparable Low Power: 40mW
  • Operates from a Single 5V Supply
  • 120kBaud Operation for RL = 3k, CL = 2500pF
  • 250kBaud Operation for RL = 3k, CL = 1000pF
  • Rugged Bipolar Design
  • Outputs Assume a High Impedance State When Powered Down
  • Absolutely No Latchup
  • Available in Narrow SO Package
    • 应用
  • Portable Computers
  • Battery-Powered Systems
  • Power Supply Generator
  • Terminals
  • Modems
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1381CS SO-16 C $2.33 $1.90
    LT1381CS#PBF SO-16 C $2.33 $1.90
    LT1381CS#TR SO-16 C $1.96
    LT1381CS#TRPBF SO-16 C $1.96
    LT1381IS SO-16 I $2.75 $2.25
    LT1381IS#PBF SO-16 I $2.75 $2.25
    LT1381IS#TR SO-16 I $2.31
    LT1381IS#TRPBF SO-16 I $2.31
