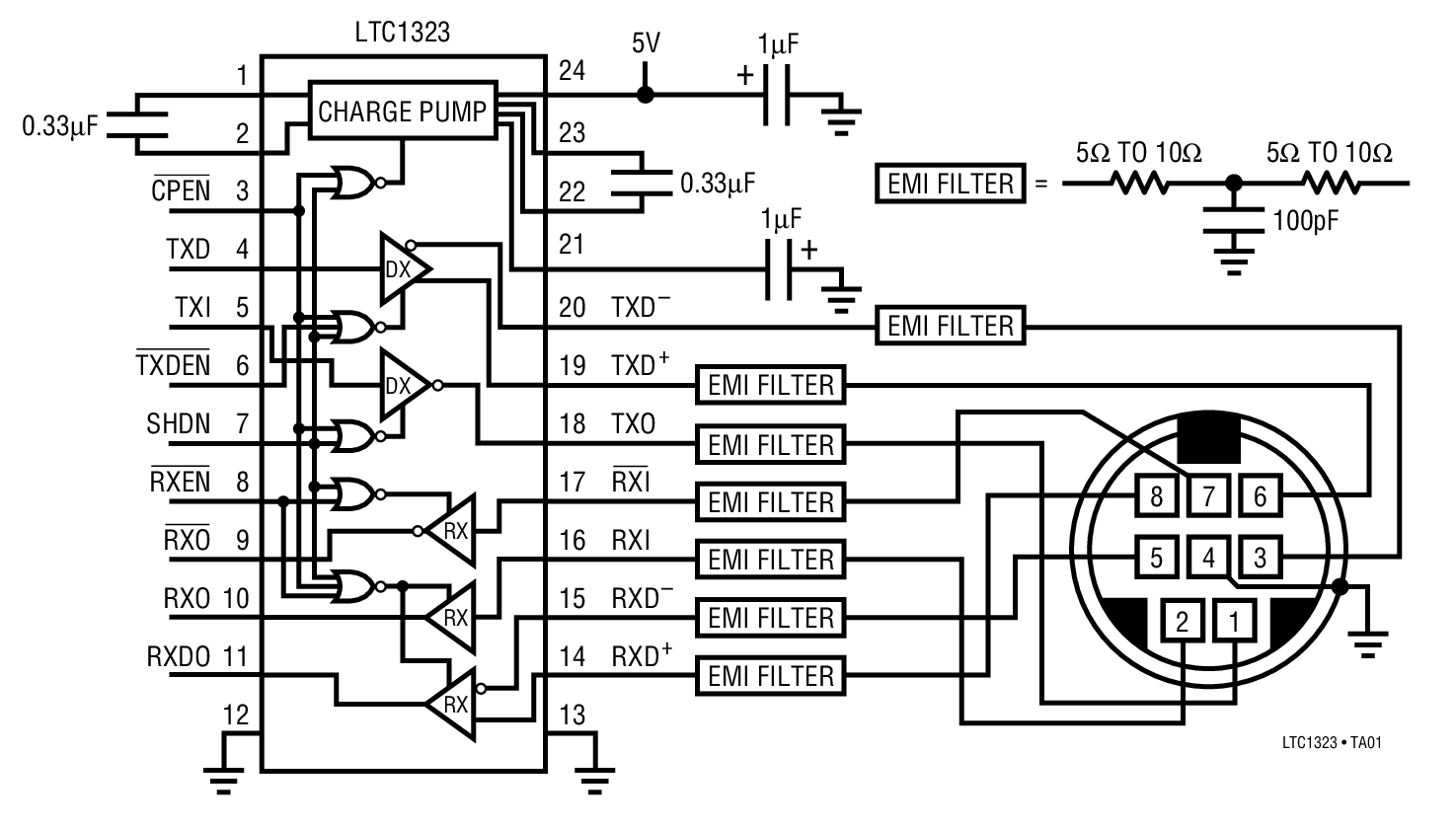

LTC1323典型应用图例一
LTC1323 - 封装图解：

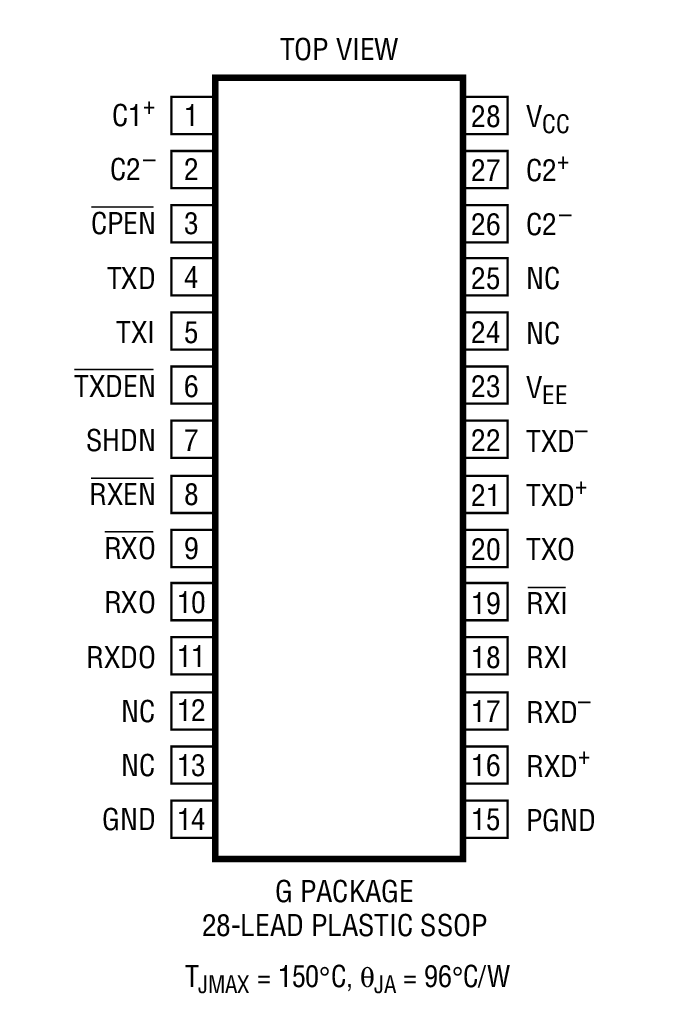

LTC1323封装图解一

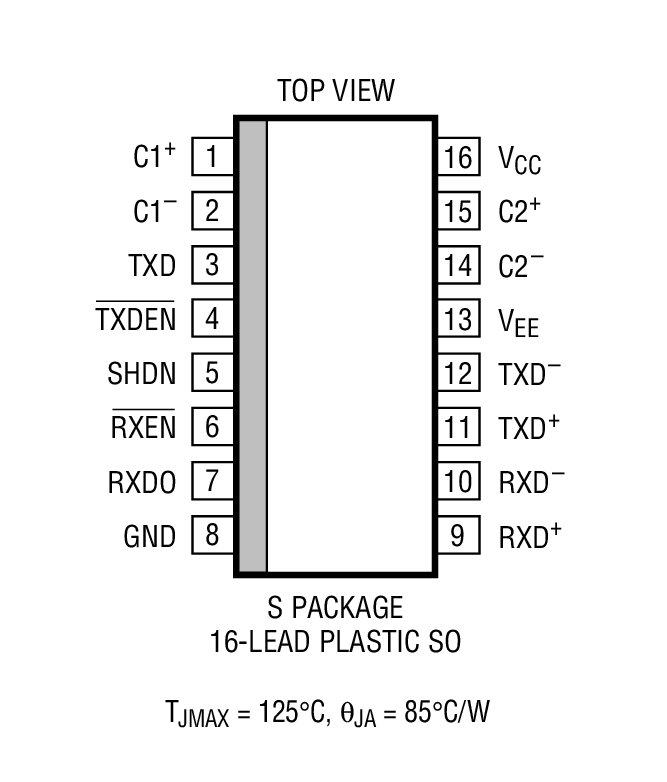

LTC1323封装图解二
LTC1323LTC1323
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1323介绍

LTC1323 - LTC1323是Single 5V AppleTalk? Transceiver

LTC1323是LINEAR凌力尔特公司的一款多协议收发器产品，LTC1323是LTC1323是Single 5V AppleTalk? Transceiver，本站介绍了LTC1323的封装应用图解、特点和优点、功能等，并给出了与LTC1323相关的LINEAR元器件型号供参考。

LTC1323 - LTC1323是Single 5V AppleTalk? Transceiver - 多协议收发器 - 接口器件 - 凌力尔特

LTC1323 - Single 5V AppleTalk? Transceiver

LTC1323 - Single 5V AppleTalk? Transceiver - Linear Technology（凌力尔特）

功能描述
The LTC1323 is a multi-protocol line transceiver designed to operate on AppleTalk or EIA562-compatible single-ended networks while operating from a single 5V supply. There are two versions of the LTC1323 available: a 16-pin version designed to connect to an AppleTalk network, and a 24-pin version which also includes the additional single-ended drivers and receivers necessary to create an Apple-compatible serial port. An on-board charge pump generates a ­5V supply which can be used to power external devices. Additionally, the 24-pin LTC1323 features a micropower keep-alive mode during which one of the single-ended receivers is kept active to monitor external wake-up signals. The LTC1323 draws only 2.4mA quiescent current when active, 65µA in receiver keep-alive mode, and 0.5µA in shutdown, making it ideal for use in battery-powered systems. The differential driver can drive either differential AppleTalk loads or conventional single-ended loads. The driver outputs three-state when disabled, during shutdown, in receiver keep-alive mode, or when the power is off. The driver outputs will maintain high impedance even with output common-mode voltages beyond the power supply rails. Both the driver outputs and receiver inputs are protected against ESD damage to ±10kV.
特点
  • Single Chip Provides Complete LocalTalk/AppleTalk Port
  • Operates From a Single 5V Supply
  • ESD Protection to ±10kV on Receiver Inputs and Driver Outputs
  • Low Power: ICC = 2.4mA Typ
  • Shutdown Pin Reduces ICC to 0.5µA Typ
  • Receiver Keep-Alive Function: ICC = 65µA Typ
  • Differential Driver Drives Either DifferentialAppleTalk or Single-Ended EIA562 Loads
  • Drivers Maintain High Impedance in Three-State or with Power Off
  • Thermal Shutdown Protection
  • Drivers are Short-Circuit Protected
    • 应用
  • LocalTalk Peripherals
  • Notebook/Palmtop Computers
  • Battery-Powered Systems
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1323CS16 SO-16 C $5.60 $4.40
    LTC1323CS16#PBF SO-16 C $5.60 $4.40
    LTC1323CS16#TR SO-16 C $4.46
    LTC1323CS16#TRPBF SO-16 C $4.46
    LTC1323CSW SW-24 C $6.10 $4.80
    LTC1323CSW#PBF SW-24 C $6.10 $4.80
    LTC1323CSW#TR SW-24 C $4.90
    LTC1323CSW#TRPBF SW-24 C $4.90
