当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC1098A
LTC1098A技术文档下载：
LTC1098A技术文档产品手册下载
LTC1098A - 典型应用图例：

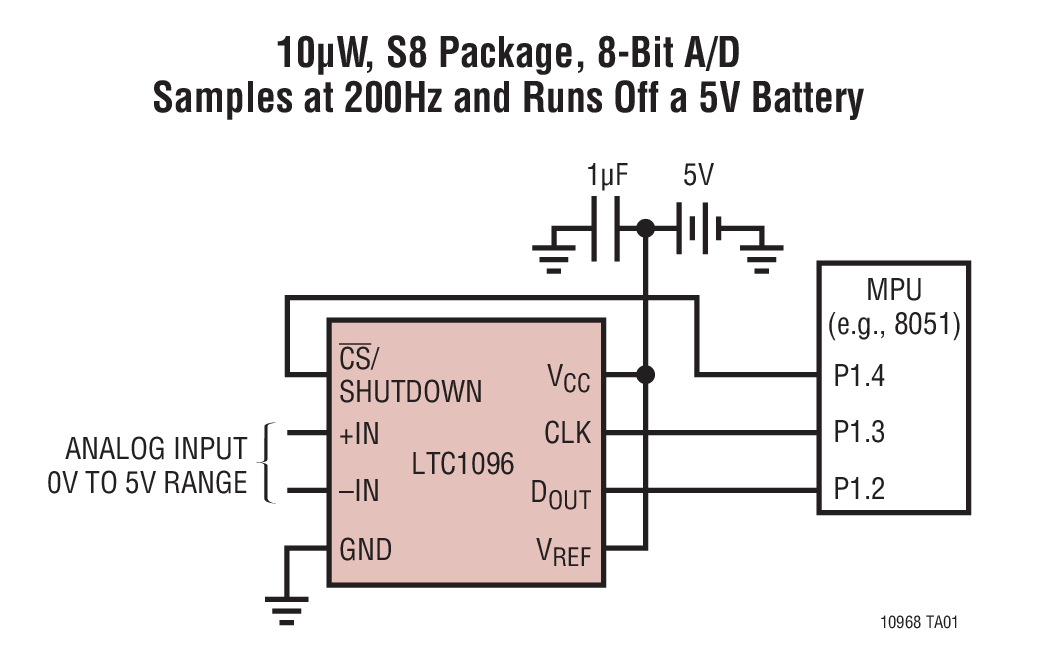

LTC1098A典型应用图例一

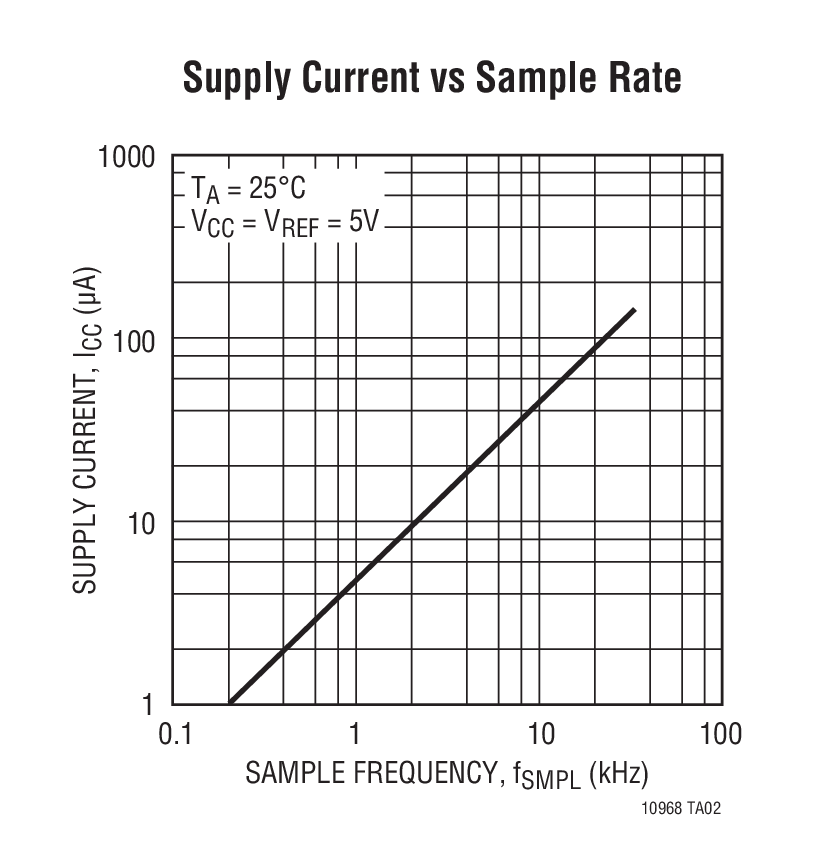

LTC1098A典型应用图例二
LTC1098A - 封装图解：

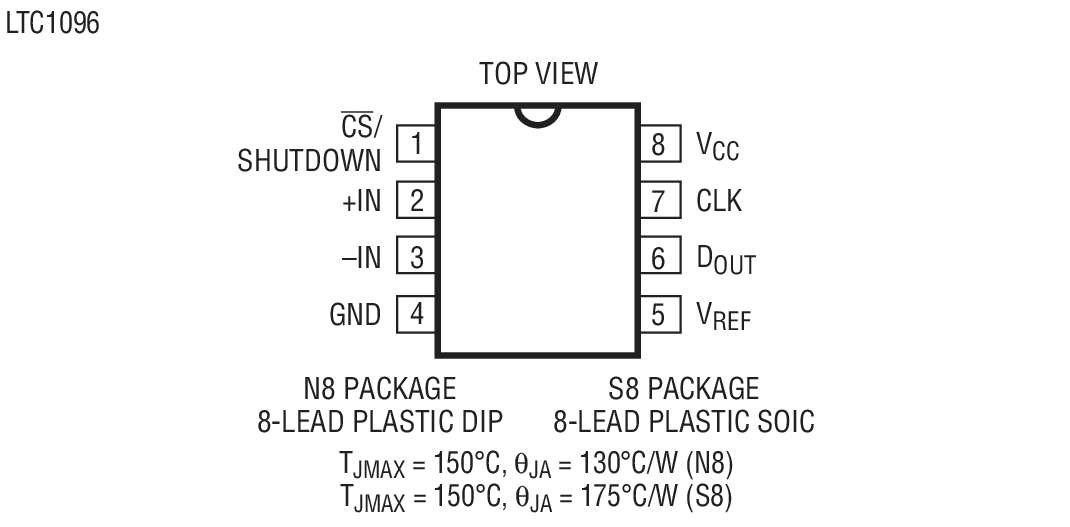

LTC1098A封装图解一

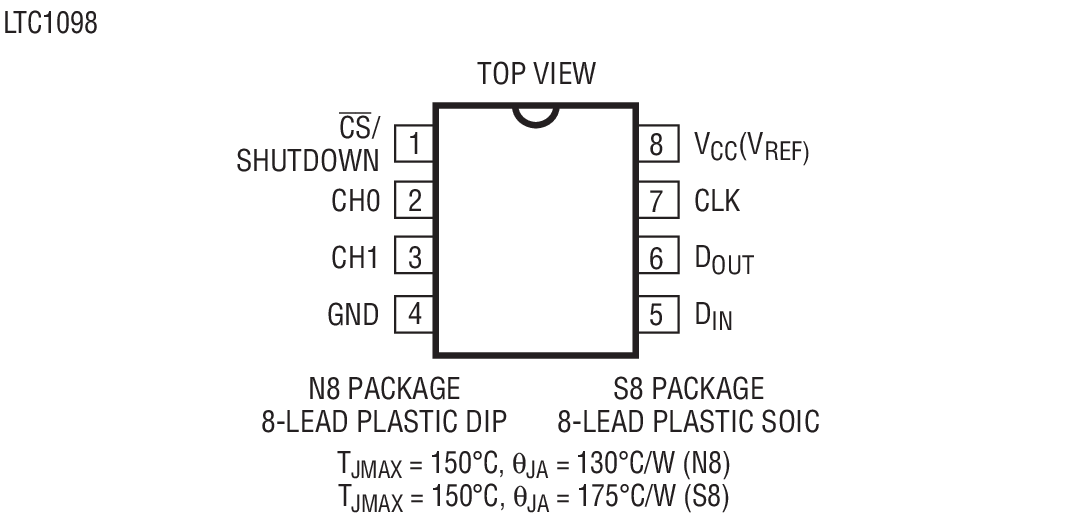

LTC1098A封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1098A介绍

LTC1098A - LTC1098A是Micropower Sampling 8-Bit Serial I/O A/D Converters

LTC1098A是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1098A是LTC1098A是Micropower Sampling 8-Bit Serial I/O A/D Converters，本站介绍了LTC1098A的封装应用图解、特点和优点、功能等，并给出了与LTC1098A相关的LINEAR元器件型号供参考。

LTC1098A - LTC1098A是Micropower Sampling 8-Bit Serial I/O A/D Converters - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1098A - Micropower Sampling 8-Bit Serial I/O A/D Converters

LTC1098 - Micropower Sampling 8-Bit Serial I/O A/D Converters - Linear Technology（凌力尔特）

功能描述
The LTC1096/LTC1098 are micropower, 8-bit A/D converters which draw only 80μA of supply current when converting. They automatically power down to 1nA typical supply current whenever they are not performing conversions. They are packaged in 8-pin SO packages and operate on 3V to 9V supplies. These 8-bit, switched-capacitor, successive approximation ADCs include sample-and-hold. The LTC1096 has a single differential analog input. The LTC1098 offers a software selectable 2-channel MUX.On-chip serial ports allow efficient data transfer to a wide range of microprocessors and microcontrollers over three wires. This, coupled with micropower consumption, makes remote location possible and facilitates transmitting data through isolation barriers.These circuits can be used in ratiometric applications or with an external reference. The high impedance analog inputs and the ability to operate with reduced spans (below 1V full scale) allow direct connection to sensors and transducers in many applications, eliminating the need for gain stages.All grades are specified with offset and linearity errors of ?0.5LSB maximum over temperature. The A grade devices are specified with total unadjusted error of ?0.5LSB maximum over temperature.

特点
  • 80µA Maximum Supply Current
  • 1nA Typical Supply Current in Shutdown
  • 8-Pin SOIC Plastic Package
  • Single Supply 3V to 9V Operation
  • 2.7V and 5V Specified
  • Sample-and-Hold
  • 16μs Conversion Time
  • 33kHz Sample Rate
  • ±1/2LSB Total Unadjusted Error Over Temp
  • Direct 3-Wire Interface to Most MPU Serial Ports andAll MPU Parallel I/O Ports
    • 应用
  • Battery-Operated Systems
  • Remote Data Acquisition
  • Battery Monitoring
  • Battery Gas Gauges
  • Temperature Measurement
  • Isolated Data Acquisition
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1098ACN8 N-8 C $4.50 $3.55
    LTC1098ACN8#PBF N-8 C $4.50 $3.55
    LTC1098ACS8 SO-8 C $4.50 $3.55
    LTC1098ACS8#PBF SO-8 C $4.50 $3.55
    LTC1098ACS8#TR SO-8 C $3.61
    LTC1098ACS8#TRPBF SO-8 C $3.61
    LTC1098CN8 N-8 C $3.70 $2.85
    LTC1098CN8#PBF N-8 C $3.70 $2.85
    LTC1098CS8 SO-8 C $3.70 $2.85
    LTC1098CS8#PBF SO-8 C $3.70 $2.85
    LTC1098CS8#TR SO-8 C $2.91
    LTC1098CS8#TRPBF SO-8 C $2.91
    LTC1098IN8 N-8 I $4.25 $3.30
    LTC1098IN8#PBF N-8 I $4.25 $3.30
    LTC1098IS8 SO-8 I $4.25 $3.30
    LTC1098IS8#PBF SO-8 I $4.25 $3.30
    LTC1098IS8#TR SO-8 I $3.36
    LTC1098IS8#TRPBF SO-8 I $3.36
    LTC1098LCS8 SO-8 C $4.00 $3.10
    LTC1098LCS8#PBF SO-8 C $4.00 $3.10
    LTC1098LCS8#TR SO-8 C $3.16
    LTC1098LCS8#TRPBF SO-8 C $3.16
    LTC1098LIS8 SO-8 I $4.25 $3.35
    LTC1098LIS8#PBF SO-8 I $4.25 $3.35
    LTC1098LIS8#TR SO-8 I $3.41
    LTC1098LIS8#TRPBF SO-8 I $3.41
