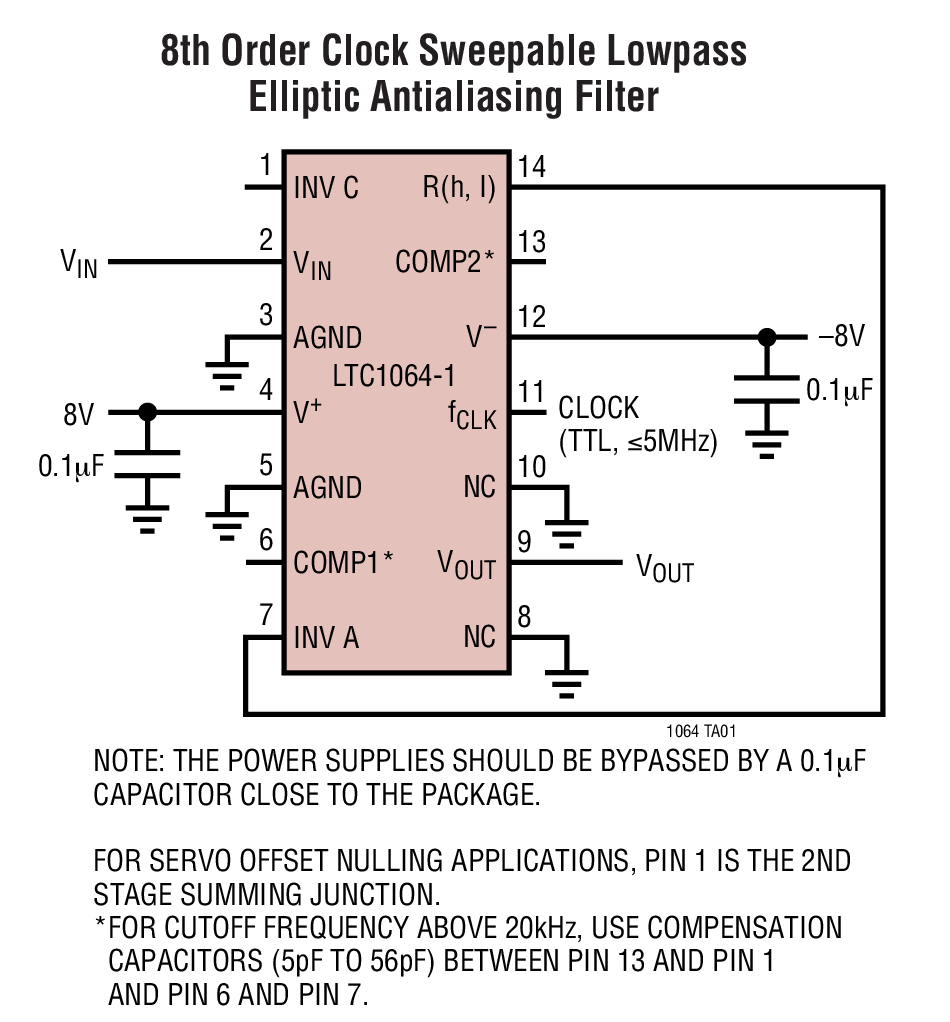

LTC1064-1典型应用图例一

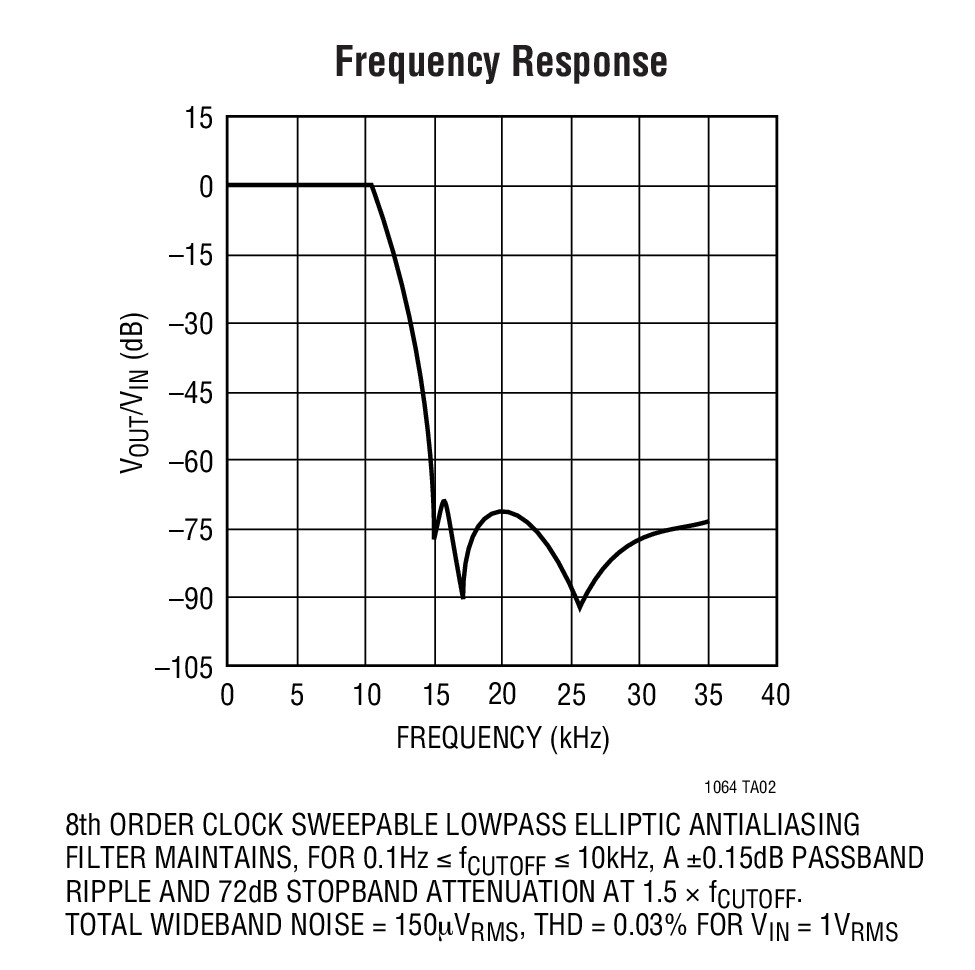

LTC1064-1典型应用图例二
LTC1064-1 - 封装图解：

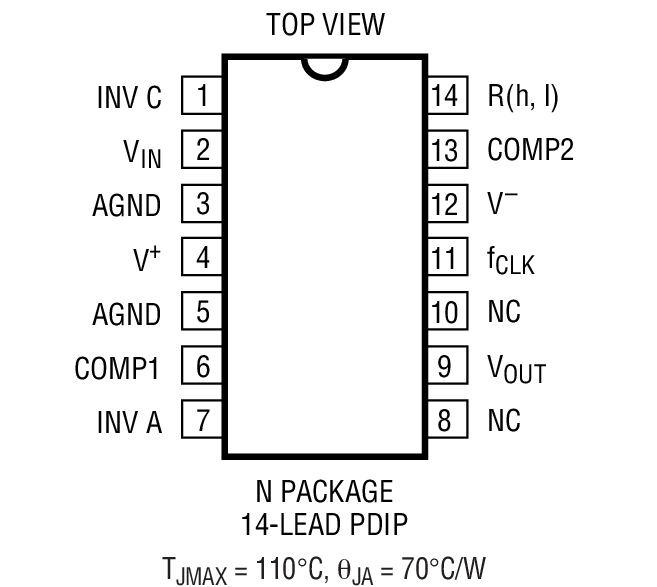

LTC1064-1封装图解一
LTC1064-1封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1064-1介绍

LTC1064-1 - LTC1064-1是Low Noise, 8th Order, Clock Sweepable Elliptic Lowpass Filter

LTC1064-1是LINEAR凌力尔特公司的一款低通滤波器产品，LTC1064-1是LTC1064-1是Low Noise, 8th Order, Clock Sweepable Elliptic Lowpass Filter，本站介绍了LTC1064-1的封装应用图解、特点和优点、功能等，并给出了与LTC1064-1相关的LINEAR元器件型号供参考。

LTC1064-1 - LTC1064-1是Low Noise, 8th Order, Clock Sweepable Elliptic Lowpass Filter - 低通滤波器 - 信号调理 - 凌力尔特

LTC1064-1 - Low Noise, 8th Order, Clock Sweepable Elliptic Lowpass Filter

LTC1064-1 - Low Noise, 8th Order, Clock Sweepable Elliptic Lowpass Filter - Linear Technology（凌力尔特）

功能描述

The LTC1064-1 is an 8th order, clock sweepable elliptic (Cauer) lowpass switched capacitor filter. The passband ripple is typically ±0.15dB, and the stopband attenuation at 1.5 times the cutoff frequency is 68dB or more.

An external TTL or CMOS clock programs the value of the filter’s cutoff frequency. The clock to cutoff frequency ratio is 100:1.

No external components are needed for cutoff frequencies up to 20kHz. For cutoff frequencies over 20kHz two low value capacitors are required to maintain passband flatness. The LTC1064-1 features low wideband noise and low harmonic distortion even for input voltages up to 3VRMS. In fact the LTC1064-1 overall performance completes with equivalent multiple op amp RC active realizations.

The LTC1064-1 is available in a 14-pin DIP or 16-pin surface mounted SW package.

The LTC1064-1 is pin compatible with the LTC1064-2.

特点
  • 8th Order Filter in a 14-Pin Package
  • No External Components
  • 100:1 Clock to Center Ratio
  • 150μVRMS Total Wideband Noise
  • 0.03% THD or Better
  • 50kHz Maximum Corner Frequency
  • Operates from ±2.37V to ±8V Power Supplies
  • Passband Ripple Guaranteed Over Full Military Temperature Range
    • 应用
  • Antialiasing Filters
  • Telecom PCM Filters
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1064-1ACN N-14 C $25.40 $20.60
    LTC1064-1ACN#PBF N-14 C $25.40 $20.60
    LTC1064-1CN N-14 C $15.00 $12.35
    LTC1064-1CN#PBF N-14 C $15.00 $12.35
    LTC1064-1CSW SW-16 C $18.35 $14.85
    LTC1064-1CSW#PBF SW-16 C $18.35 $14.85
    LTC1064-1CSW#TR SW-16 C $14.91
    LTC1064-1CSW#TRPBF SW-16 C $14.91
