当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC1064-3
LTC1064-3技术文档下载：
LTC1064-3技术文档产品手册下载
LTC1064-3 - 典型应用图例：

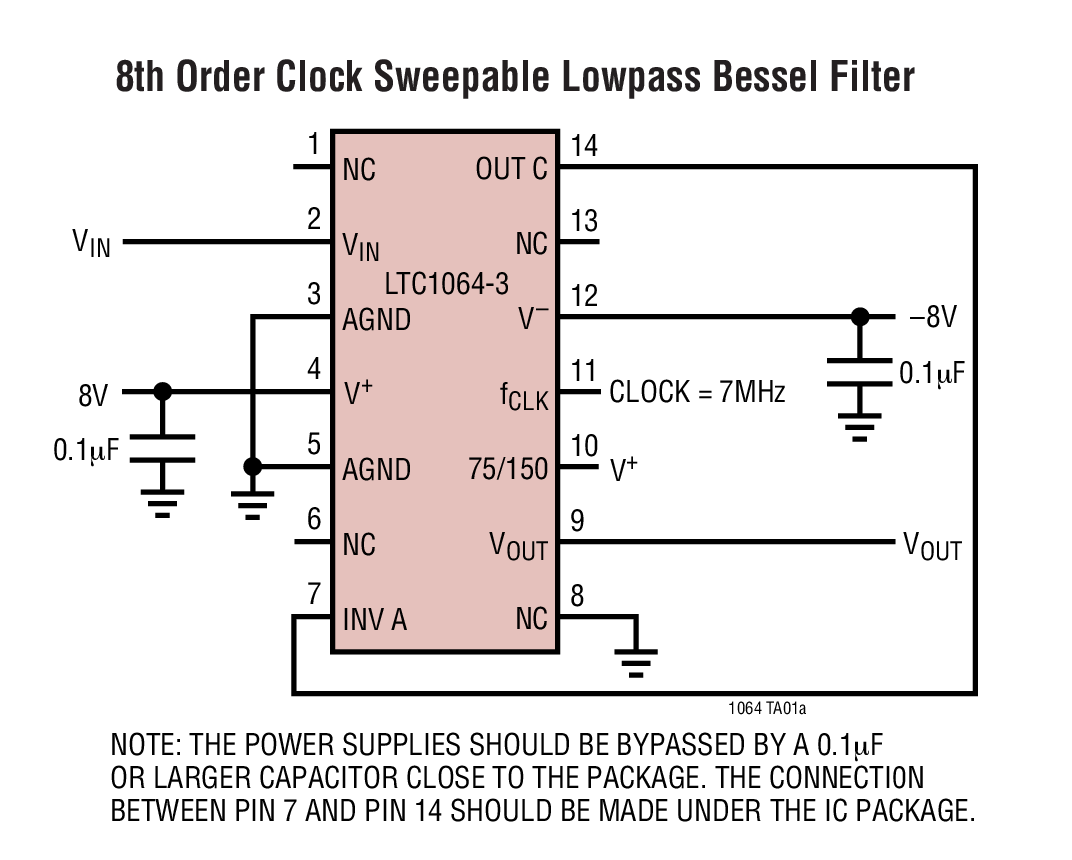

LTC1064-3典型应用图例一

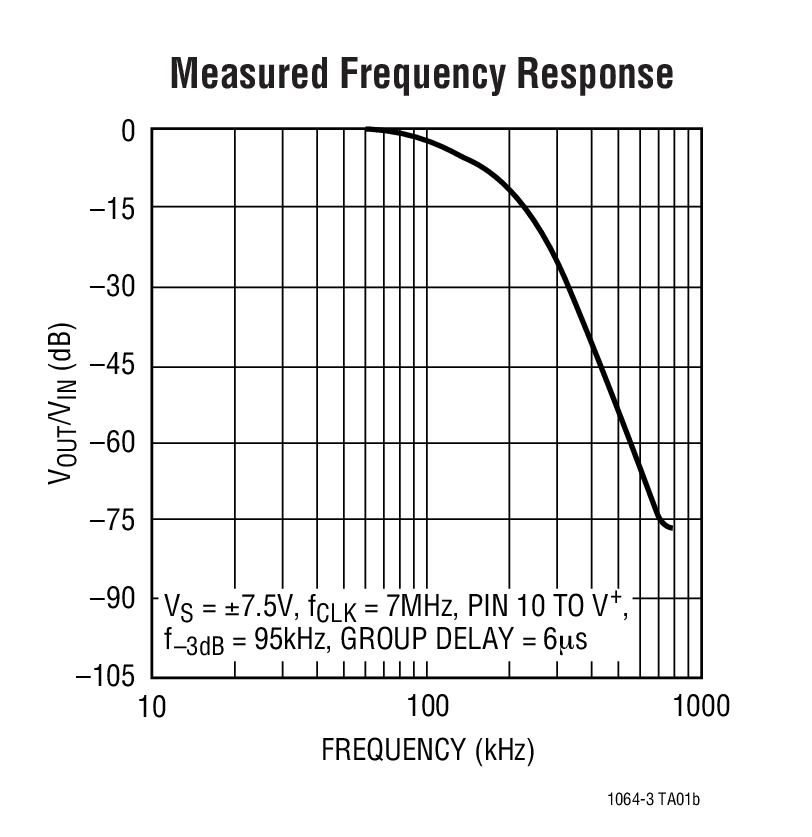

LTC1064-3典型应用图例二
LTC1064-3 - 封装图解：

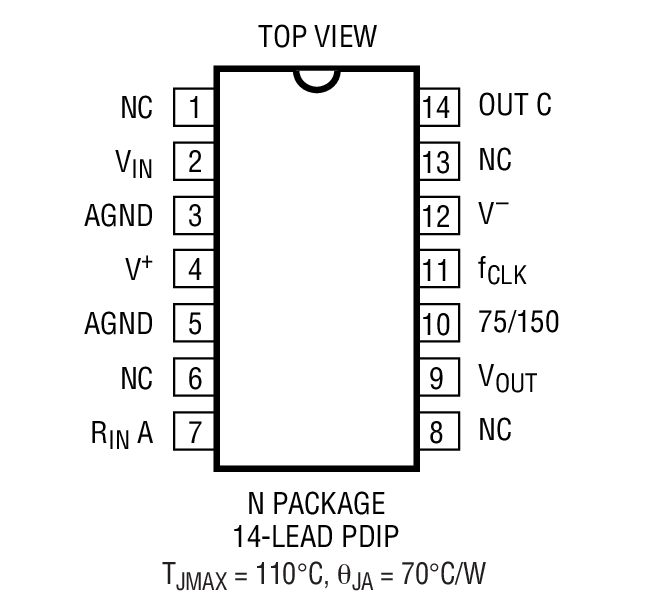

LTC1064-3封装图解一

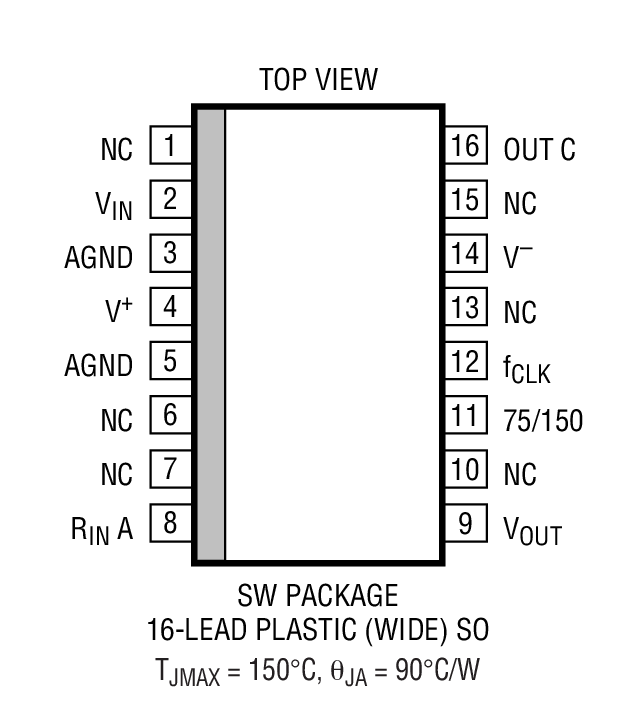

LTC1064-3封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1064-3介绍

LTC1064-3 - LTC1064-3是Low Noise, High Frequency, 8th Order Linear Phase Lowpass Filter

LTC1064-3是LINEAR凌力尔特公司的一款低通滤波器产品，LTC1064-3是LTC1064-3是Low Noise, High Frequency, 8th Order Linear Phase Lowpass Filter，本站介绍了LTC1064-3的封装应用图解、特点和优点、功能等，并给出了与LTC1064-3相关的LINEAR元器件型号供参考。

LTC1064-3 - LTC1064-3是Low Noise, High Frequency, 8th Order Linear Phase Lowpass Filter - 低通滤波器 - 信号调理 - 凌力尔特

LTC1064-3 - Low Noise, High Frequency, 8th Order Linear Phase Lowpass Filter

LTC1064-3 - Low Noise, High Frequency, 8th Order Linear Phase Lowpass Filter - Linear Technology（凌力尔特）

功能描述

The LTC1064-3 is a monolithic 8th order lowpass Bessel filter, which provides a linear phase response over its entire passband. An external TTL or CMOS clock programs the filter's cutoff frequency. The clock to cutoff frequency ratio is 75:1 (Pin 10 at V+) or 150:1 (Pin 10 at V) or 120:1 (Pin 10 at GND). The maximum cutoff frequency is 95kHz. No external components are needed.

The LTC1064-3 features low wideband noise and low harmonic distortion even for input voltages up to 3VRMS. In fact the LTC1064-3 overall performance competes with equivalent multiple op amp RC active realizations. The LTC1064-3 is available in a 14-pin DIP or 16-pin surface mounted SOL package. The LTC1064-3 is fabricated using LTC's enhanced analog CMOS Si-gate process.

The LTC1064-3 is pin compatible with the LTC1064-1, LTC1064-2 and LTC1064-4.

特点
  • 8th Order Filter in a 14-Pin Package
  • 95kHz Maximum Corner Frequency
  • No External Components
  • 75:1, 150:1, and 120:1 Clock to Cutoff Frequency Ratio
  • 60μVRMS Total Wideband Noise
  • 0.03% THD or Better
  • Operates from ±2.37V to ±8V Power Supplies
  • Low Total Output DC Offset
    • 应用
  • Antialiasing Filters
  • Smoothing Filters
  • Tracking High Frequency Lowpass Filters
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1064-3CN N-14 C $11.70 $9.60
    LTC1064-3CN#PBF N-14 C $11.70 $9.60
    LTC1064-3CSW SW-16 C $13.35 $10.80
    LTC1064-3CSW#PBF SW-16 C $13.35 $10.80
    LTC1064-3CSW#TR SW-16 C $10.86
    LTC1064-3CSW#TRPBF SW-16 C $10.86
