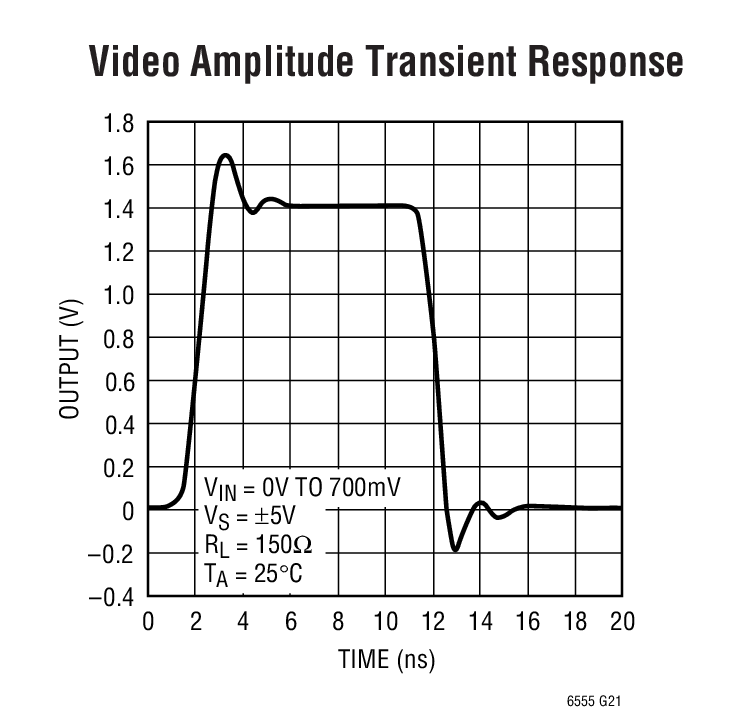

LT6555典型应用图例一

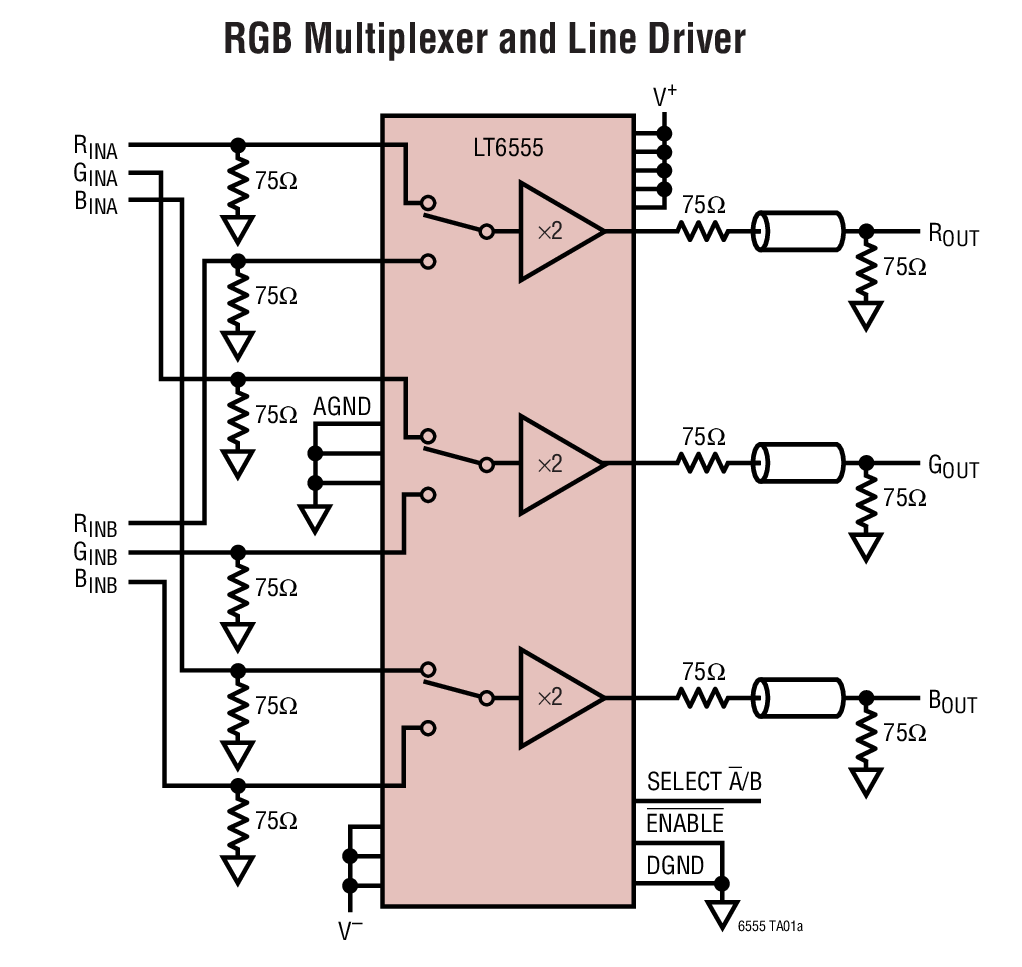

LT6555典型应用图例二
LT6555 - 封装图解：
LT6555封装图解一

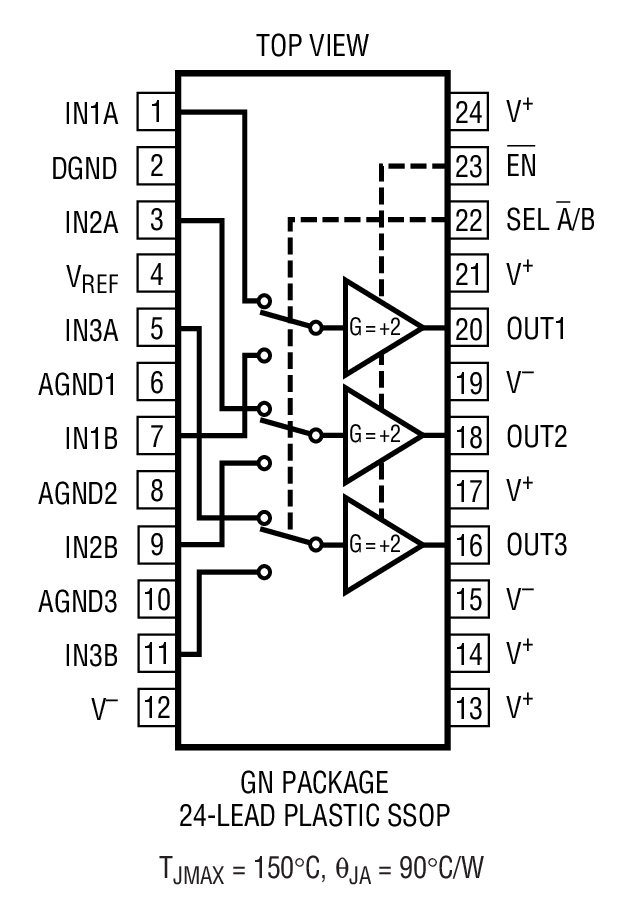

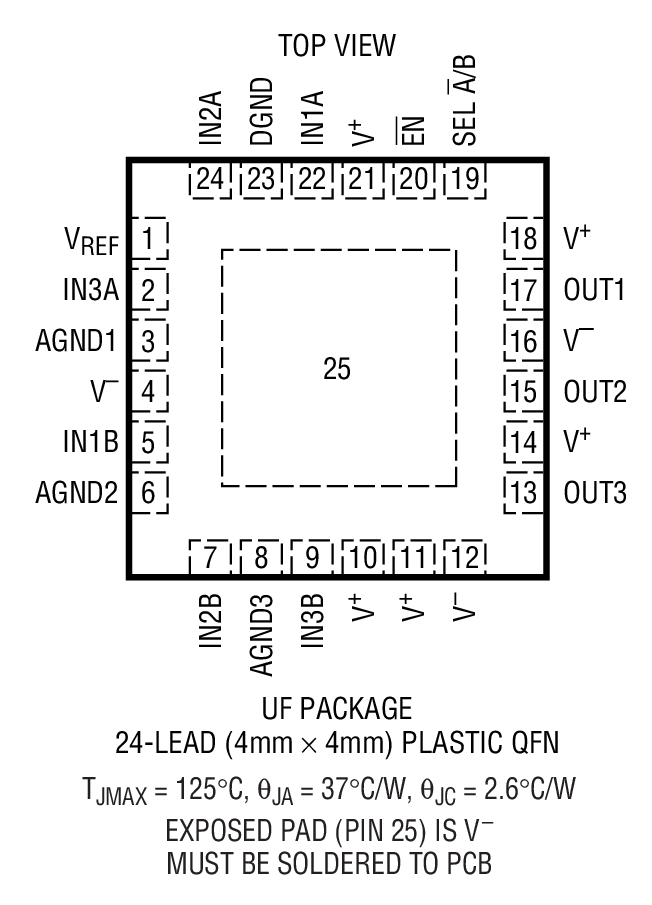

LT6555封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT6555介绍

LT6555 - LT6555是650MHz Gain of 2 Triple 2:1Video Multiplexer

LT6555是LINEAR凌力尔特公司的一款高速放大器产品，LT6555是LT6555是650MHz Gain of 2 Triple 2:1Video Multiplexer，本站介绍了LT6555的封装应用图解、特点和优点、功能等，并给出了与LT6555相关的LINEAR元器件型号供参考。

LT6555 - LT6555是650MHz Gain of 2 Triple 2:1Video Multiplexer - 高速放大器 - 信号调理 - 凌力尔特

LT6555 - 650MHz Gain of 2 Triple 2:1Video Multiplexer

LT6555 - 650MHz Gain of 2 Triple 2:1Video Multiplexer - Linear Technology（凌力尔特）

功能描述
The LT6555 is a high speed triple 2:1 video multiplexer with an internally fixed gain of 2. The individual amplifiers are optimized for performance with a double terminated 75 Ohm video load and feature a -3dB 2VP-P bandwidth of 450MHz, making them ideal for driving very high resolution video signals. Separate power supply pins for each amplifier boost channel separation to 72dB, allowing the LT6555 to excel in many high speed applications.

While the performance of the LT6555 is optimized for dual supply operation, it can also be operated with a single supply as low as 4.5V. Using dual 5V supplies, each amplifier draws only 9mA. When disabled, the amplifiers draw less than 500µA and the outputs become high impedance.

The LT6555 is manufactured on Linear Technology's proprietary low voltage complementary bipolar process and is available in 24-lead SSOP and ultra-compact 24-lead QFN packages.

特点
  • 650MHz -3dB Small Signal Bandwidth
  • 450MHz -3dB 2VP-P Large-Signal Bandwidth
  • 120MHz ±0.1dB Bandwidth
  • High Slew Rate: 2200V/µs
  • Fixed Gain of 2; No External Resistors Required
  • 72dB Channel Separation at 10MHz
  • 50dB Channel Separation at 100MHz
  • -80dBc 2nd Harmonic Distortion at 10MHz, 2VP-P
  • -70dBc 3rd Harmonic Distortion at 10MHz, 2VP-P
  • Low Supply Current: 9mA per Amplifier
  • 6.5ns 0.1% Settling Time for 2V Step
  • ISS ≤ 500µA per Amplifier when Disabled
  • Differential Gain of 0.033%, Differential Phase of 0.022°
  • Wide Supply Range: ±2.25V (4.5V) to ±6V (12V)
  • Available in 24-Lead SSOP and 24-Lead QFN Packages
    • 应用
  • RGB Amplifiers
  • UXGA Video Multiplexing
  • LCD Projectors
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT6555CGN SSOP-24 C $3.90 $2.75
    LT6555CGN#PBF SSOP-24 C $3.90 $2.75
    LT6555CGN#TR SSOP-24 C $2.81
    LT6555CGN#TRPBF SSOP-24 C $2.81
    LT6555CUF 4x4 QFN-24 C $3.90 $2.75
    LT6555CUF#PBF 4x4 QFN-24 C $3.90 $2.75
    LT6555CUF#TR 4x4 QFN-24 C $2.81
    LT6555CUF#TRPBF 4x4 QFN-24 C $2.81
    LT6555IGN SSOP-24 I $4.50 $3.15
    LT6555IGN#PBF SSOP-24 I $4.50 $3.15
    LT6555IGN#TR SSOP-24 I $3.21
    LT6555IGN#TRPBF SSOP-24 I $3.21
    LT6555IUF 4x4 QFN-24 I $4.50 $3.15
    LT6555IUF#PBF 4x4 QFN-24 I $4.50 $3.15
    LT6555IUF#TR 4x4 QFN-24 I $3.21
    LT6555IUF#TRPBF 4x4 QFN-24 I $3.21
