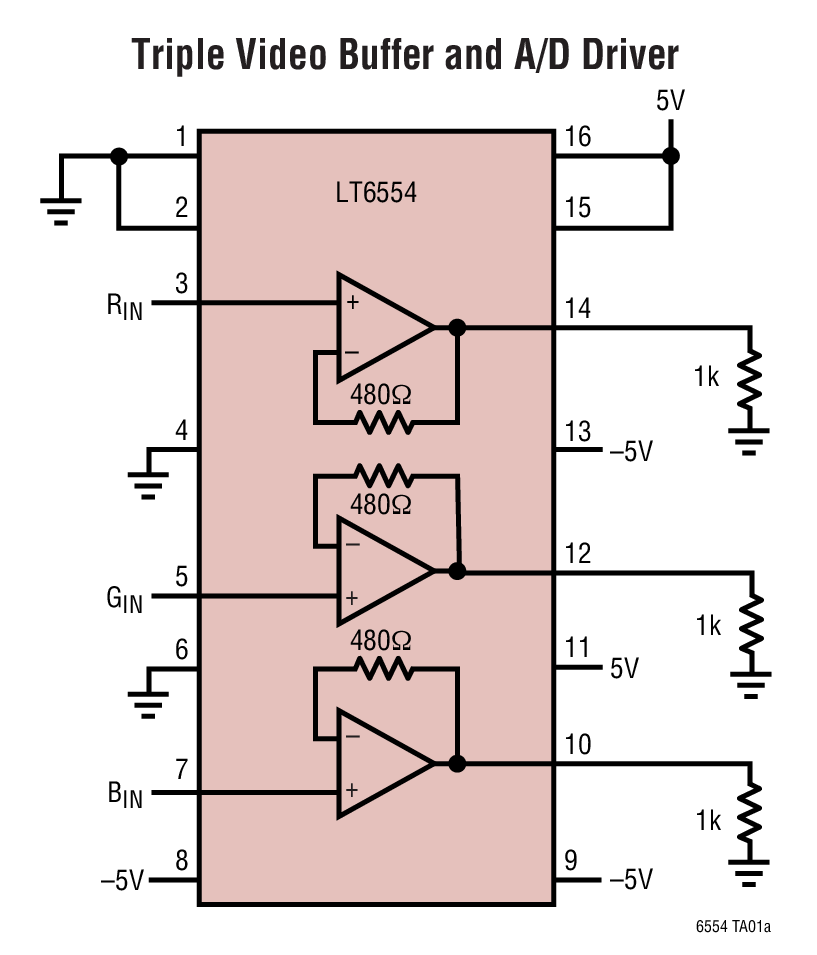

LT6554 - 典型应用图例:
LT6554典型应用图例一

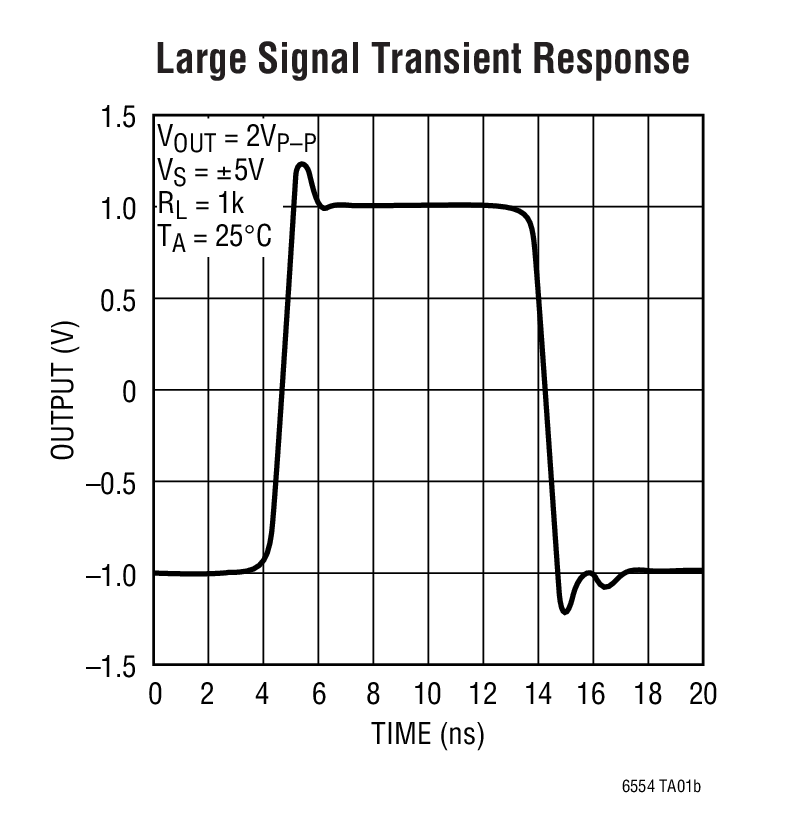

LT6554典型应用图例二

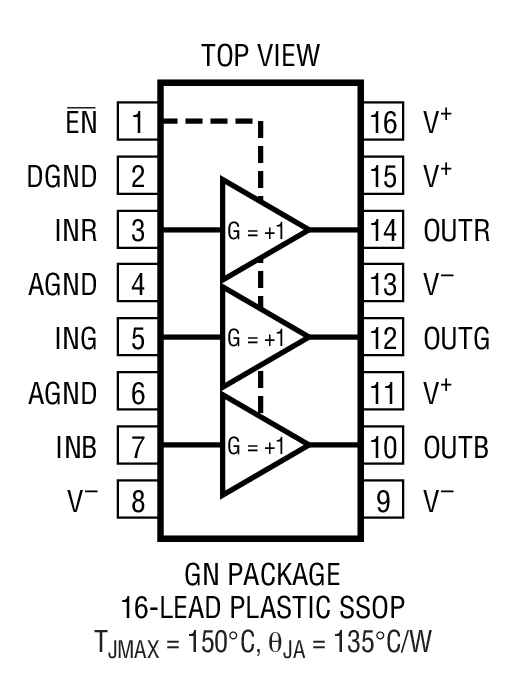

LT6554 - 封装图解:
LT6554封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LT6554介绍
LT6554 - LT6554是650MHz Gain of 1 Triple Video Buffer

LT6554是Linear公司的一款高速放大器产品,LT6554是650MHz Gain of 1 Triple Video Buffer,本站介绍了LT6554的封装应用图解、特点和优点、功能等,并给出了与LT6554相关的凌力尔特元器件型号供参考。

LT6554 - 650MHz Gain of 1 Triple Video Buffer

LT6554 - 650MHz Gain of 1 Triple Video Buffer - Linear Technology(凌力尔特)

功能描述

The LT6554 is a high-speed triple video buffer with an internally fixed gain of 1. The individual buffers are optimized for performance with a 1k load and feature a 2VP-P full signal bandwidth of 400MHz, making them ideal for driving very high-resolution video signals. Separate power supply pins for each amplifier boost channel separation to 90dB, allowing the LT6554 to excel in many highspeed applications.

While the performance of the LT6554 is optimized for dual supply operation, it can also be used on a single supply as low as 4.5V. Using dual 5V supplies, each amplifier draws only 8mA. When disabled, the amplifiers draw less than 100uA and the outputs become high impedance. Furthermore, the amplifiers are capable of turning on in less than 50ns, making them suitable for multiplexing and portable applications.

The LT6554 is manufactured on Linear Technology's proprietary low voltage complementary bipolar process and is available in the 16-lead SSOP package that fits in the same PCB area as an SO-8 package.

特点
  • 650MHz -3dB Small Signal Bandwidth
  • 400MHz -3dB 2VP-P Large Signal Bandwidth
  • 100MHz ±0.1dB Bandwidth
  • High Slew Rate: 2500V/μs
  • Fixed Gain of 1 Requires No External Resistors
  • 90dB Channel Separation at 10MHz
  • 60dB Channel Separation at 100MHz
  • -96dBc 2nd Harmonic Distortion at 10MHz, 2VP-P
  • -82dBc 3rd Harmonic Distortion at 10MHz, 2VP-P
  • Low Supply Current: 8mA per Amplifier
  • 6ns 0.1% Settling Time for 2V Step
  • TTL Compatible Enable: ISS <= 100uA when Disabled
  • Differential Gain of 0.022%, Differential Phase of 0.006°
  • Wide Supply Range: ±2.25V (4.5V) to ±6V (12V)
  • Available in 16-Lead SSOP Package
  • 应用
  • RGB Buffers
  • A/D Drivers
  • LCD Projectors
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT6554CGN SSOP-16 C $2.80 $2.50
    LT6554CGN#PBF SSOP-16 C $2.80 $2.50
    LT6554CGN#TR SSOP-16 C $2.56
    LT6554CGN#TRPBF SSOP-16 C $2.56
    LT6554IGN SSOP-16 I $3.35 $3.00
    LT6554IGN#PBF SSOP-16 I $3.35 $3.00
    LT6554IGN#TR SSOP-16 I $3.06
    LT6554IGN#TRPBF SSOP-16 I $3.06
