LT5519 - LT5519是0.7GHz to 1.4GHz High Linearity Upconverting Mixer

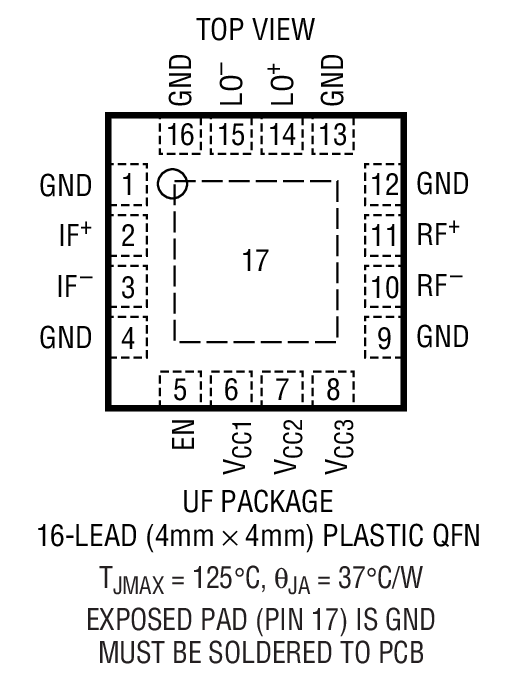

LT5519是Linear公司的一款上变频混频器产品，LT5519是0.7GHz to 1.4GHz High Linearity Upconverting Mixer，本站介绍了LT5519的封装应用图解、特点和优点、功能等，并给出了与LT5519相关的凌力尔特元器件型号供参考。
LT5519 - 0.7GHz to 1.4GHz High Linearity Upconverting Mixer
LT5519 - 0.7GHz to 1.4GHz High Linearity Upconverting Mixer - Linear Technology（凌力尔特）
功能描述
The LT5519 mixer is designed to meet the high linearity requirements of wireless and cable infrastructure transmission systems. A high speed, internally 50 Ohm matched, LO amplifier drives a double-balanced mixer core, allowing the use of a low power, single-ended LO source. An RF output transformer is integrated, thus eliminating the need for external matching components at the RF output, while reducing system cost, component count, board area and system-level variations. The IF port can be easily matched to a broad range of frequencies for use in many different applications.
The LT5519 mixer delivers +17.1dBm typical input 3rd order intercept point at 1GHz with IF input signal levels of –10dBm. The input 1dB compression point is typically +5.5dBm. The IC requires only a single 5V supply.
特点
Wide RF Frequency Range: 0.7GHz to 1.4GHz 17.1dBm Typical Input IP3 at 1GHz On-Chip RF Output Transformer On-Chip 50 Ohm Matched LO and RF Ports Single-Ended LO and RF Operation Integrated LO Buffer: –5dBm Drive Level Low LO to RF Leakage: – 44dBm Typical Noise Figure: 13.6dB Wide IF Frequency Range: 1MHz to 400MHz Enable Function with Low Off-State Leakage Current Single 5V Supply Small 16-Lead QFN Plastic Package应用
Wireless Infrastructure Cable Downlink Infrastructure Point-to-Point and Point-to-Multipoint Data Communications High Linearity Frequency Conversion以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LT5519EUF | 4x4 QFN-16 | E | $5.93 | $4.15 |
| LT5519EUF#PBF | 4x4 QFN-16 | E | $5.93 | $4.15 |
| LT5519EUF#TR | 4x4 QFN-16 | E | | $4.25 |
| LT5519EUF#TRPBF | 4x4 QFN-16 | E | | $4.25 |
