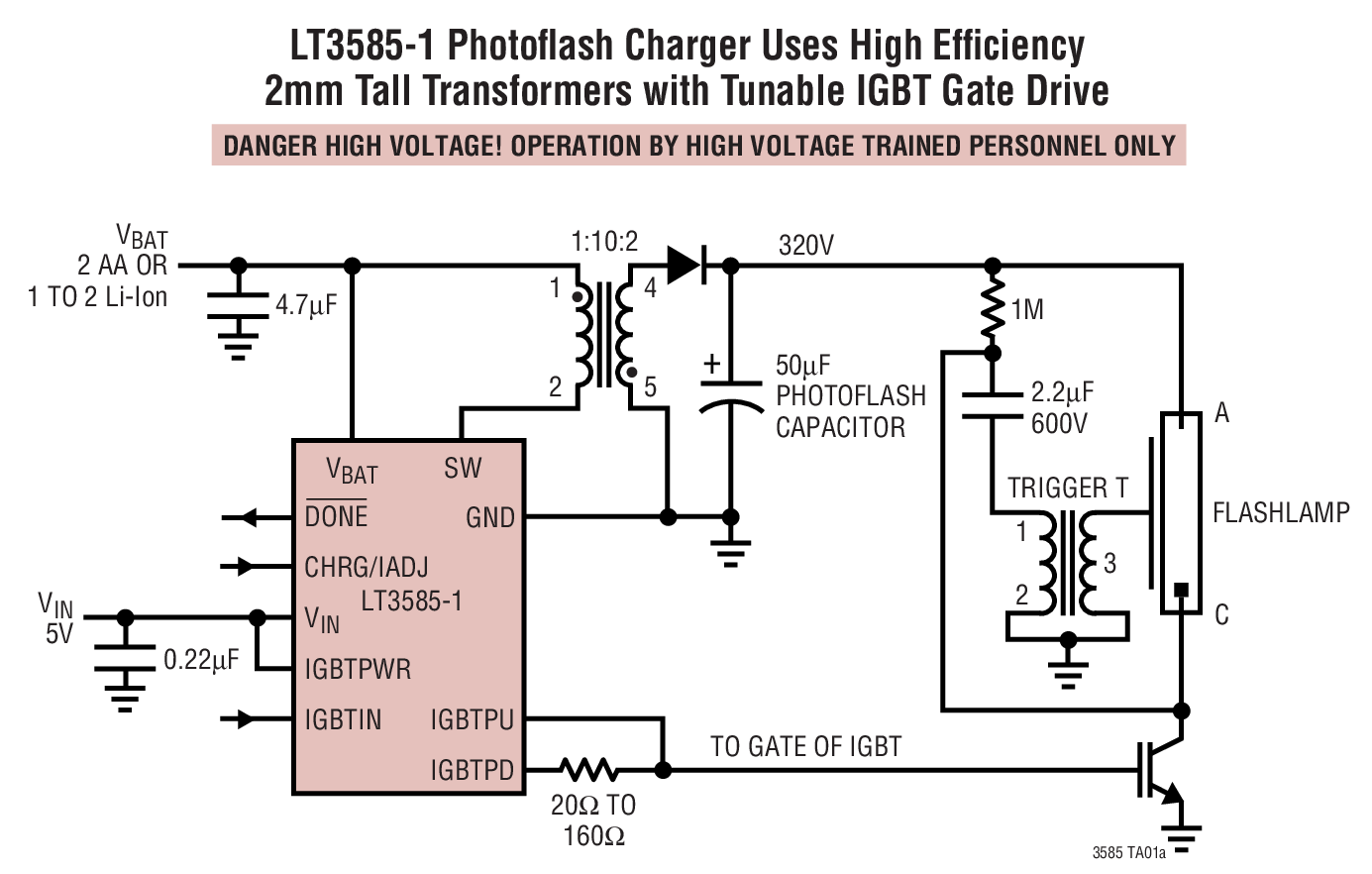

LT3585-3典型应用图例一

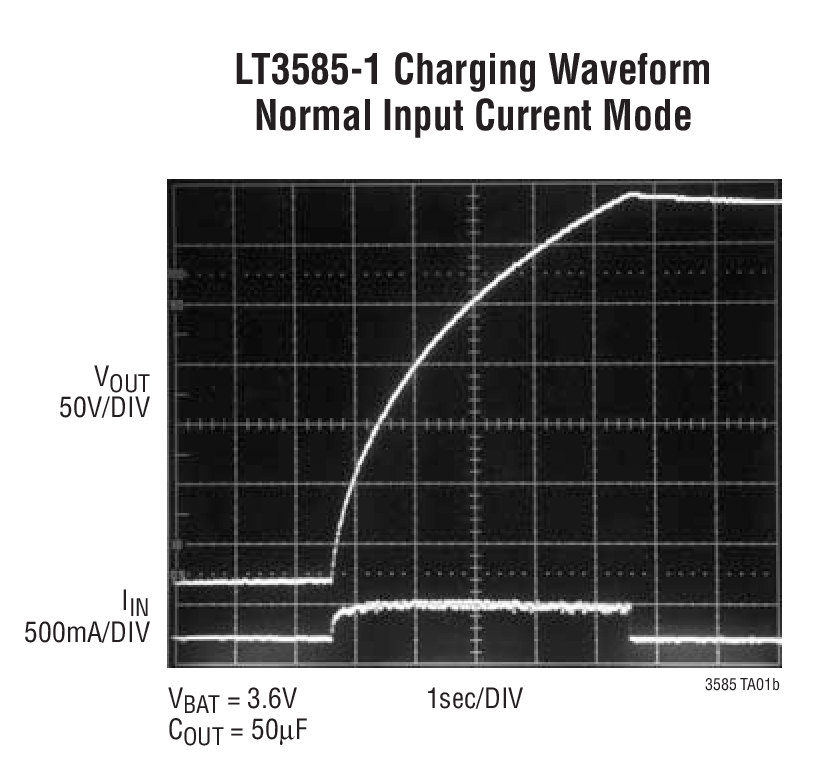

LT3585-3典型应用图例二
LT3585-3 - 封装图解：

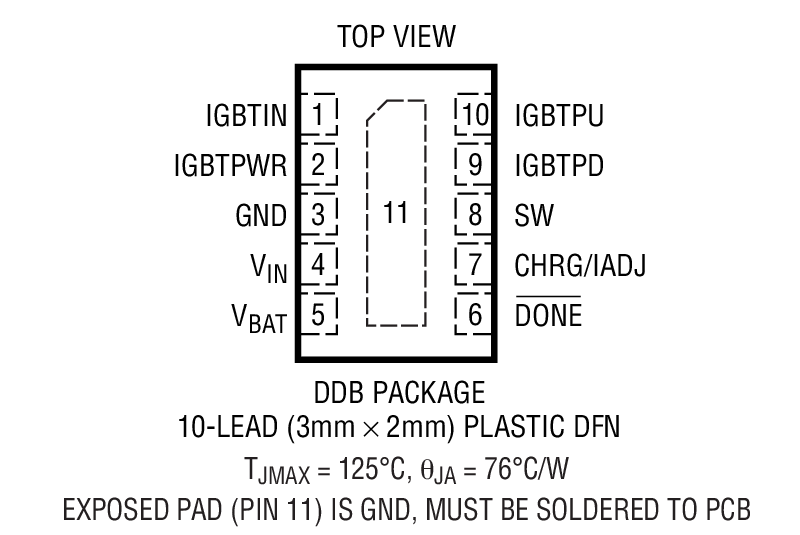

LT3585-3封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT3585-3介绍

LT3585-3 - LT3585-3是Photoflash Charger with Adjustable Input Current and IGBT Driver

LT3585-3是LINEAR凌力尔特公司的一款照相机闪光灯电容器充电器产品，LT3585-3是LT3585-3是Photoflash Charger with Adjustable Input Current and IGBT Driver，本站介绍了LT3585-3的封装应用图解、特点和优点、功能等，并给出了与LT3585-3相关的LINEAR元器件型号供参考。

LT3585-3 - LT3585-3是Photoflash Charger with Adjustable Input Current and IGBT Driver - 照相机闪光灯电容器充电器 - 电源管理 - 凌力尔特

LT3585-3 - Photoflash Charger with Adjustable Input Current and IGBT Driver

LT3585-0 - Photoflash Charger with Adjustable Input Current and IGBT Driver - Linear Technology（凌力尔特）

功能描述

The LT3585 series are highly integrated ICs designed to charge photo? ash capacitors in digital and ? lm cameras. A new control technique allows for the use of extremely small transformers. Each part contains an on-chip high voltage NPN power switch. Output voltage detection is completely contained within the part, eliminating the need for any discrete zener diodes or resistors. The output voltage can be adjusted by simply changing the turns ratio of the transformer.

The CHRG/IADJ pin gives full control of the part to the user. Driving CHRG/IADJ low puts the part in low power shutdown. The CHRG/IADJ pin can also be used to reduce the input current of the charger, useful in extending battery life. The DONE pin indicates when the part has completed charging.

The LT3585 series of parts are housed in tiny 3mm × 2mm DFN packages.

特点
  • Adjustable Input Current
  • Integrated IGBT Driver
  • No Output Voltage Divider Needed
  • Uses Small Transformers: 5.8mm × 5.8mm × 3mm
  • Fast Photoflash Charge Times
  • Charges Any Size Photoflash Capacitor
  • Supports Operation from Single Li-Ion Cell, Two AA
  • Cells or any Supply from 1.5V Up to 16V
  • Small 10-Lead (3mm × 2mm) DFN Package
    • 应用
  • Digital/Film Camera Flash
  • PDA/Cell Phone Flash
  • Emergency Strobe
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT3585EDDB-0 3x2 DFN-10 E $1.57
    LT3585EDDB-0#TRPBF 3x2 DFN-10 E $1.57 $1.15
    LT3585EDDB-1 3x2 DFN-10 E $1.57
    LT3585EDDB-1#PBF 3x2 DFN-10 E $1.57
    LT3585EDDB-1#TRMPBF 3x2 DFN-10 E $1.57 $1.10
    LT3585EDDB-1#TRPBF 3x2 DFN-10 E $1.57 $1.15
    LT3585EDDB-2 3x2 DFN-10 E $1.57
    LT3585EDDB-2#PBF 3x2 DFN-10 E $1.57
    LT3585EDDB-2#TRMPBF 3x2 DFN-10 E $1.57 $1.20
    LT3585EDDB-2#TRPBF 3x2 DFN-10 E $1.57 $1.15
    LT3585EDDB-3 3x2 DFN-10 E $1.57
    LT3585EDDB-3#TRPBF 3x2 DFN-10 E $1.57 $1.15
