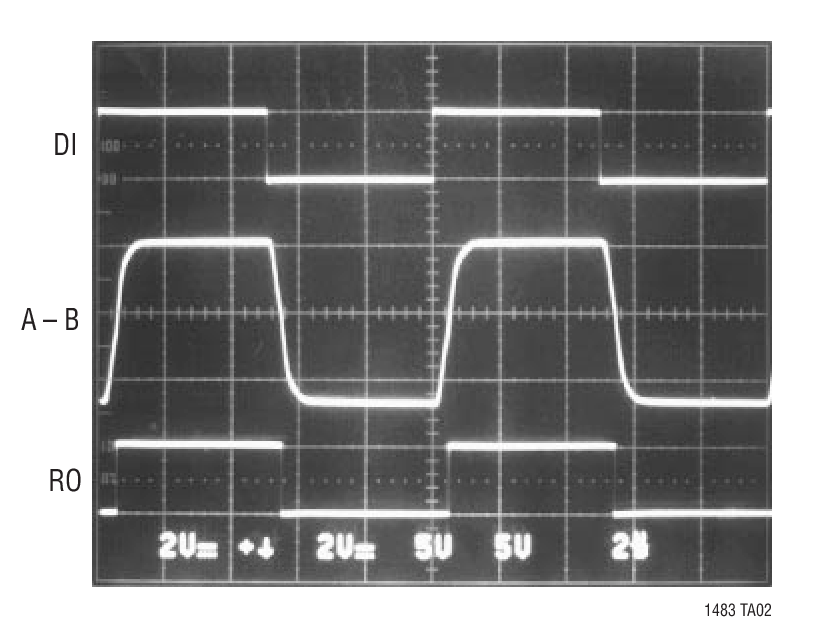

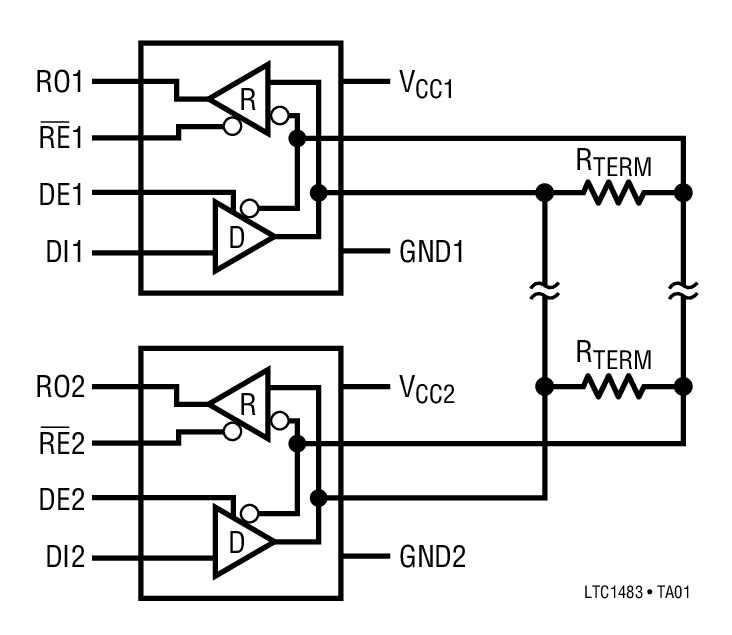

LTC1483 - 典型应用图例：

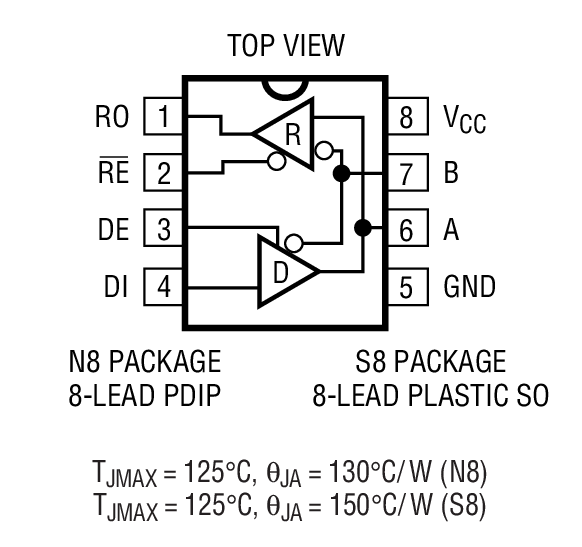

LTC1483 - 封装图解：

LTC1483 - LTC1483是Ultra-Low Power RS485 Low EMI Transceiver with Shutdown

LTC1483是Linear公司的一款RS485 / RS422 收发器产品，LTC1483是Ultra-Low Power RS485 Low EMI Transceiver with Shutdown，本站介绍了LTC1483的封装应用图解、特点和优点、功能等，并给出了与LTC1483相关的凌力尔特元器件型号供参考。

LTC1483 - Ultra-Low Power RS485 Low EMI Transceiver with Shutdown

LTC1483 - Ultra-Low Power RS485 Low EMI Transceiver with Shutdown - Linear Technology（凌力尔特）

功能描述

The LTC?1483 is an ultra-low power differential line transceiver designed for data transmission standard RS485 applications with extended common-mode range (- 7V to 12V). It will also meet the requirements of RS422. The LTC1483 features output drivers with controlled slew rate, decreasing the EMI radiated from the RS485 lines, and improving signal fidelity with misterminated lines. The CMOS design offers significant power savings over its bipolar counterparts without sacrificing ruggedness against overload or ESD damage. Typical quiescent current is only 80μA while operating and less than 1mA in shutdown.The driver and receiver feature three-state outputs, with the driver outputs maintaining high impedance over the entire common-mode range. Excessive power dissipation caused by bus contention or faults is prevented by a thermal shutdown circuit which forces the driver outputs into a high impedance state. The receiver has a fail-safe feature which guarantees a high output state when the inputs are left open. I/O pins are protected against multiple ESD strikes of over ±10kV.The LTC1483 is fully specified over the commercial and extended industrial temperature range and is available in 8-pin DIP and SO packages.

特点

Low Power: Icc = 120µA Max with Driver Disabled

ICC = 500µA Max with Driver Enabled, No Load

1µA Quiescent Current in Shutdown Mode

Controlled Slew Rate Driver for Reduced EMI

Single 5V Supply

Drivers/Receivers Have ±10kV ESD Protection

-7V to 12V Common-Mode Range Permits ±7V Ground Difference Between Devices on the Data Line

Thermal Shutdown Protection

Power Up/Down Glitch-Free Driver Outputs Permit Live Insertion or Removal of Transceiver

Driver Maintains High Impedance in Three-State or with the Power Off

Up to 32 Transceivers on the Bus

Pin Compatible with the LTC485

应用

Battery-Powered RS485/RS422 Applications

Low Power RS485/RS422 Transceiver

Level Translator

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1483CN8	N-8	C	$1.85	$1.45
LTC1483CN8#PBF	N-8	C	$1.85	$1.45
LTC1483CS8	SO-8	C	$2.25	$1.80
LTC1483CS8#PBF	SO-8	C	$2.25	$1.80
LTC1483CS8#TR	SO-8	C		$1.86
LTC1483CS8#TRPBF	SO-8	C		$1.86
LTC1483IN8	N-8	I	$2.40	$1.95
LTC1483IN8#PBF	N-8	I	$2.40	$1.95
LTC1483IS8	SO-8	I	$2.90	$2.35
LTC1483IS8#PBF	SO-8	I	$2.90	$2.35
LTC1483IS8#TR	SO-8	I		$2.41
LTC1483IS8#TRPBF	SO-8	I		$2.41
