LT3489 - 2MHz Boost DC/DC Converter with 2.5A Switch and Soft-Start

LT3489 - 2MHz Boost DC/DC Converter with 2.5A Switch and Soft-Start - Linear Technology（凌力尔特）

功能描述

The LT3489 is a ?xed frequency step-up DC/DC converter containing an internal 2.5A, 40V switch. The LT3489 is ideal for large TFT-LCD panel power supplies. The LT3489 switches at 2MHz, allowing the use of tiny, low pro?le inductors and low value ceramic capacitors. Loop compensation can be either internal or external, giving the user ?exibility in setting loop compensation and allowing optimized transient response with low ESR ceramic output capacitors. Soft-start is controlled with an external capacitor, which determines the input current ramp rate during start-up.

The 8-lead MS8E package and high switching frequency ensure a low pro?le overall solution less than 1.1mm high.

特点

2.5A, 0.12Ω, 40V Internal Switch

2MHz Switching Frequency

Integrated Soft-Start Function

VIN Range: 2.6V to 16V

Adjustable Output from VIN to 40V

Low VCESAT Switch: 110mV at 1A (Typical)

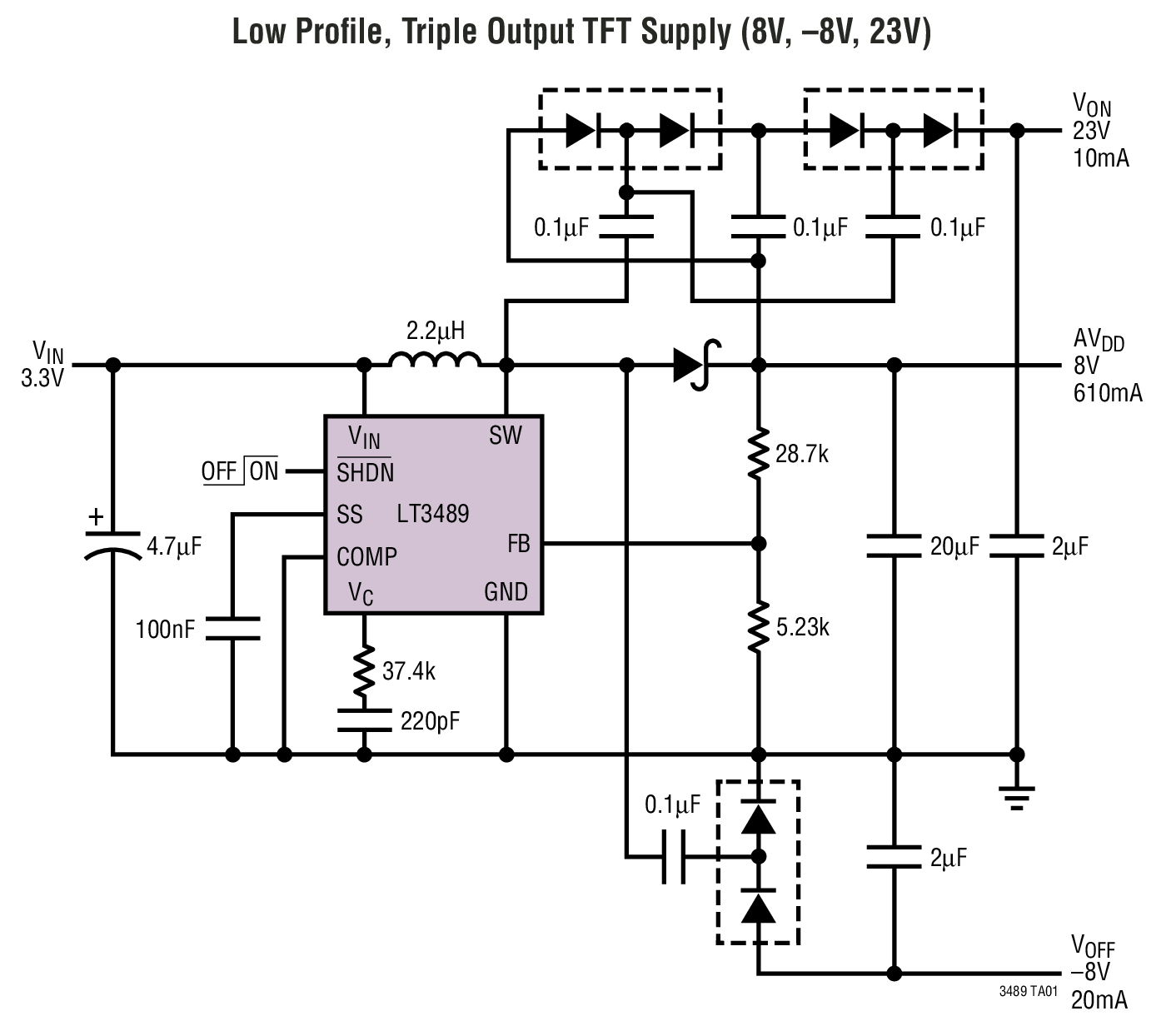

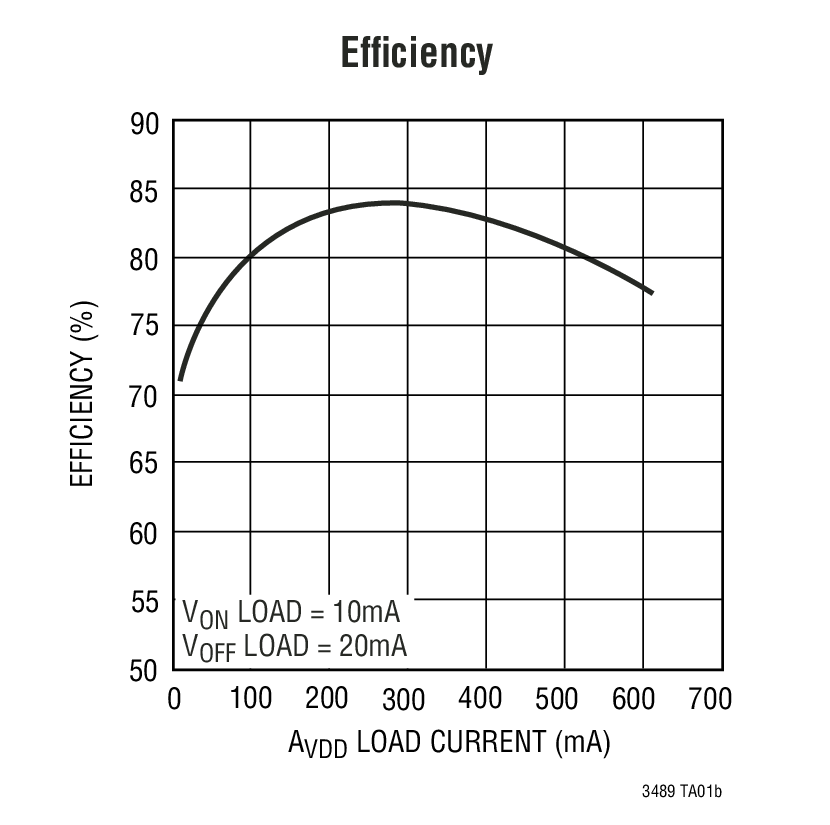

8V at 610mA from a 3.3V Input

Internal or External Loop Compensation

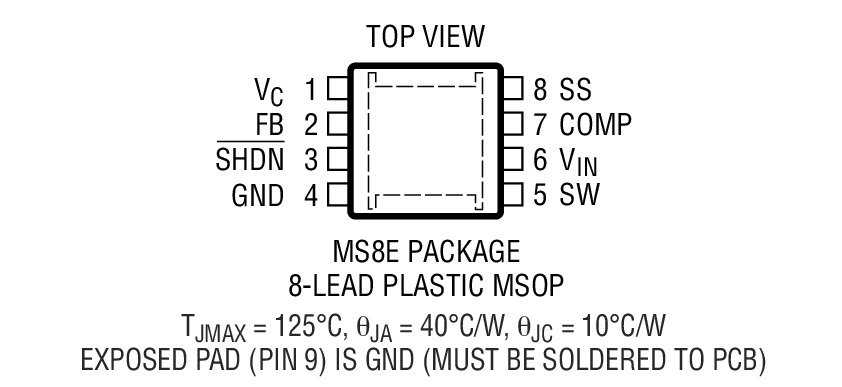

Small 8-Lead MS8E

应用
