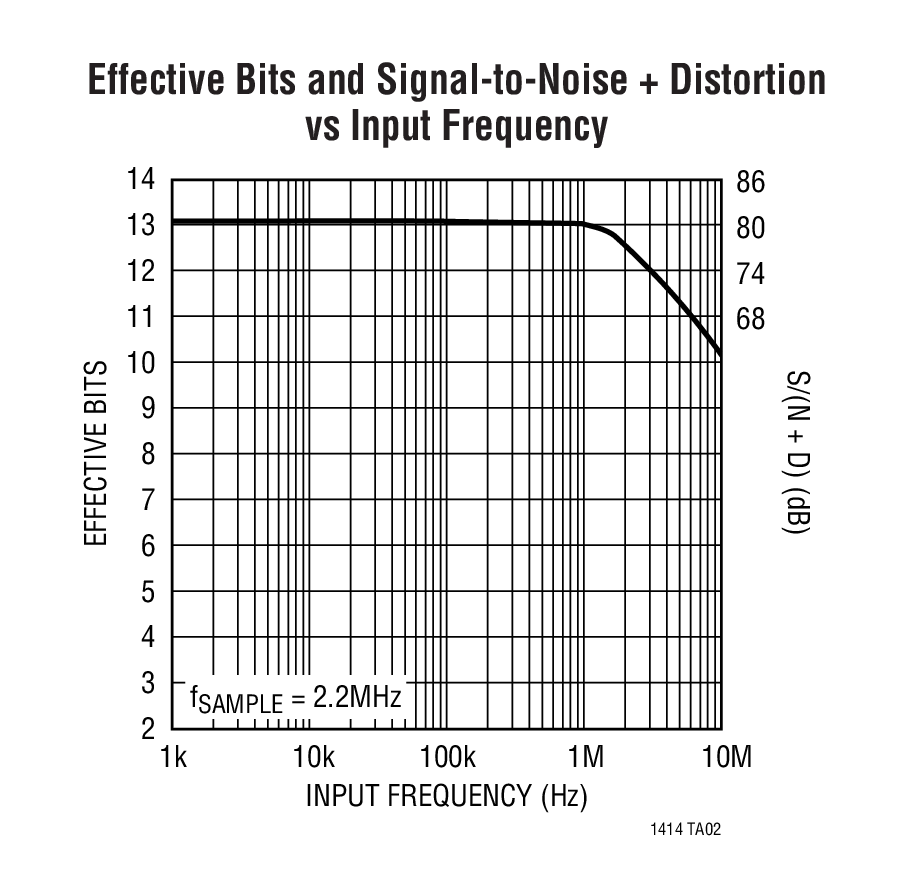

LTC1414典型应用图例一
LTC1414典型应用图例二

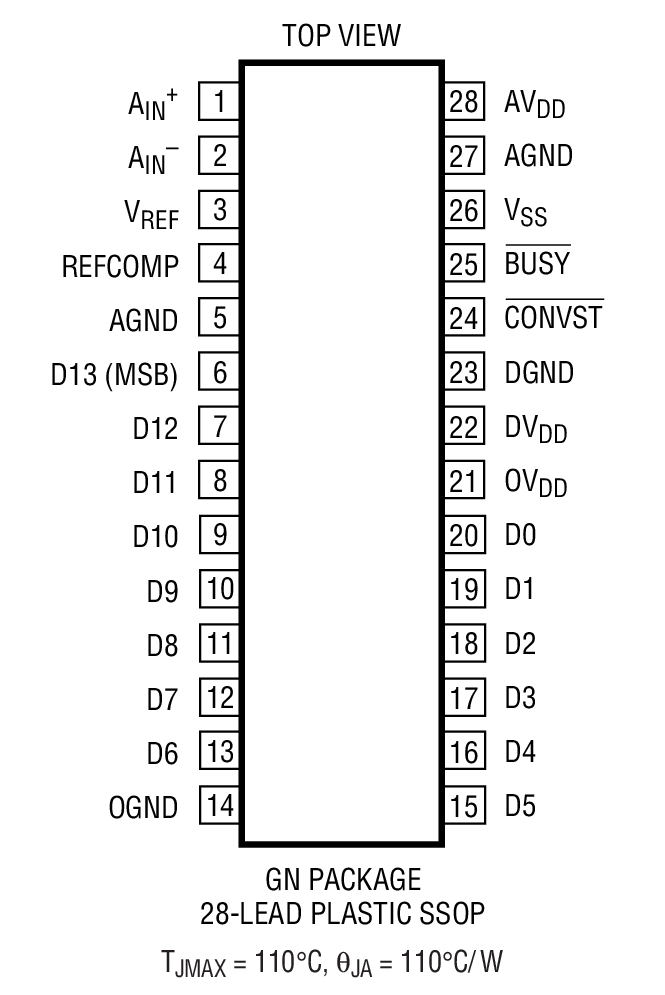

LTC1414 - 封装图解：
LTC1414封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1414介绍

LTC1414 - LTC1414是14-Bit, 2.2 Msps,Sampling A/D Converter

LTC1414是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1414是LTC1414是14-Bit, 2.2 Msps,Sampling A/D Converter，本站介绍了LTC1414的封装应用图解、特点和优点、功能等，并给出了与LTC1414相关的LINEAR元器件型号供参考。

LTC1414 - LTC1414是14-Bit, 2.2 Msps,Sampling A/D Converter - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1414 - 14-Bit, 2.2 Msps,Sampling A/D Converter

LTC1414 - 14-Bit, 2.2 Msps,Sampling A/D Converter - Linear Technology（凌力尔特）

功能描述
The LTC1414 is a 14-bit, 2.2Msps, sampling A/D converter which draws only 175mW from ±5V supplies. This high performance ADC includes a high dynamic range sample-and-hold, a precision reference and requires no external components. The LTC1414's high performance sample-and-hold has a full-scale input range of ±2.5V. Outstanding AC performance includes 80dB S/(N + D) and 95dB SFDR with a 100kHz input. The performance remains high at the Nyquist input frequency of 1.1MHz with 78dB S/(N + D) and 84dB SFDR. The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 40MHz bandwidth. The 70dB common mode rejection can eliminate ground loops and common mode noise by measuring signal differentially from the source. The ADC has a microprocessor compatible, 14-bit parallel output port. There is no pipeline delay in the conversion results.

特点
  • Sample Rate: 2.2Msps
  • Outstanding Spectral Purity:80dB S/(N + D) and 95dB SFDR at 100kHz78dB S/(N + D) and 84dB SFDR at Nyquist
  • Ultralow Distortion with Single-Ended or Differential Inputs
  • ±2.5V Bipolar Input Range Eliminates Level Shifting and Rail-to-Rail Op Amp Requirements
  • Easy Hookup for External or Internal Reference
  • No Pipeline Delay
  • Power Dissipation: 175mW on ±5V Supplies
  • 28-Pin Narrow SSOP Package
    • 应用
  • Telecommunications
  • Digital Signal Processing
  • Multiplexed Data Acquisition Systems
  • High Speed Data Acquisition
  • Spectrum Analysis
  • Imaging Systems
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1414CGN SSOP-28 C $22.65 $16.00
    LTC1414CGN#PBF SSOP-28 C $22.65 $16.00
    LTC1414CGN#TR SSOP-28 C $16.10
    LTC1414CGN#TRPBF SSOP-28 C $16.10
    LTC1414IGN SSOP-28 I $25.50 $18.00
    LTC1414IGN#PBF SSOP-28 I $25.50 $18.00
    LTC1414IGN#TR SSOP-28 I $18.10
    LTC1414IGN#TRPBF SSOP-28 I $18.10
