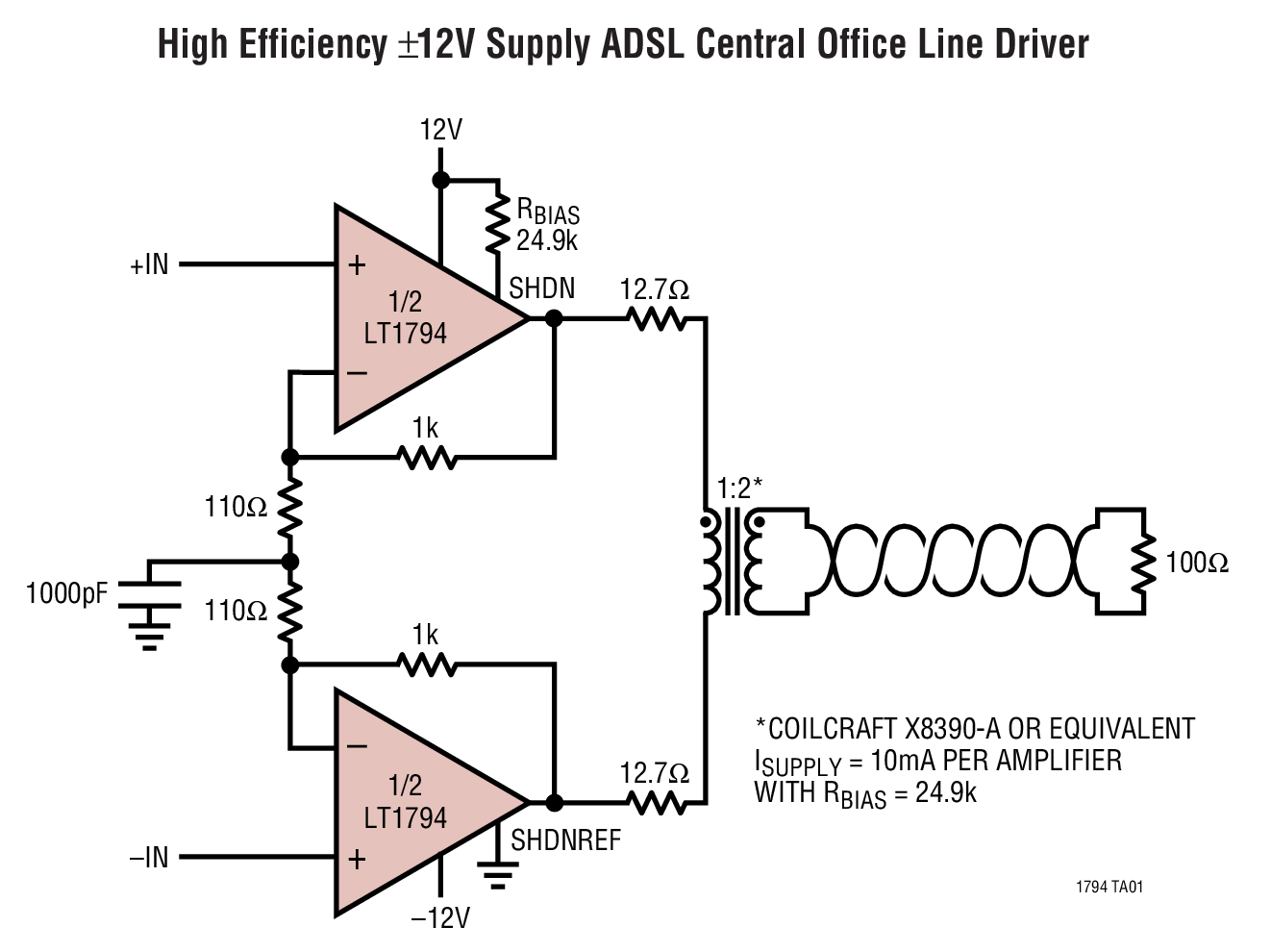

LT1794 - 典型应用图例:
LT1794典型应用图例一

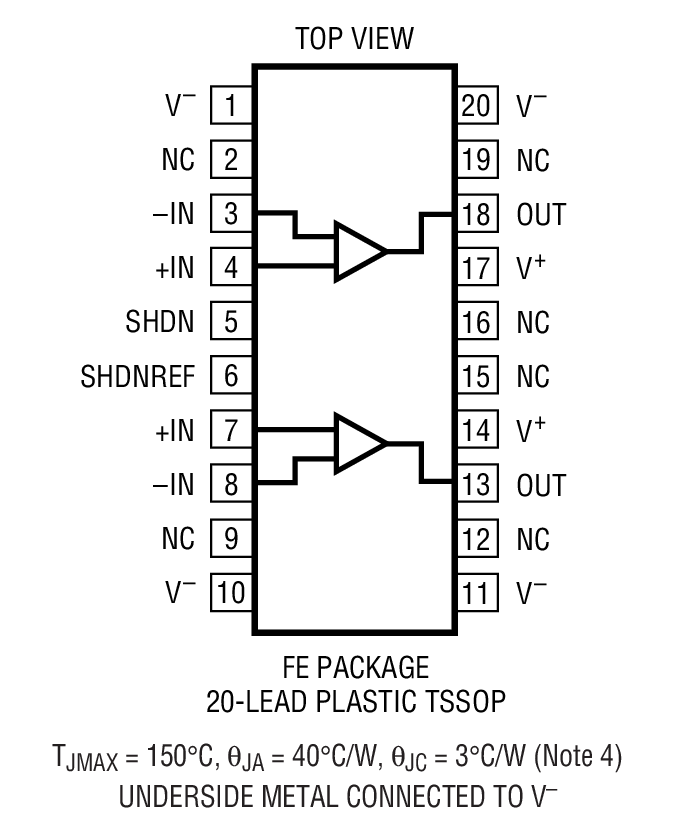

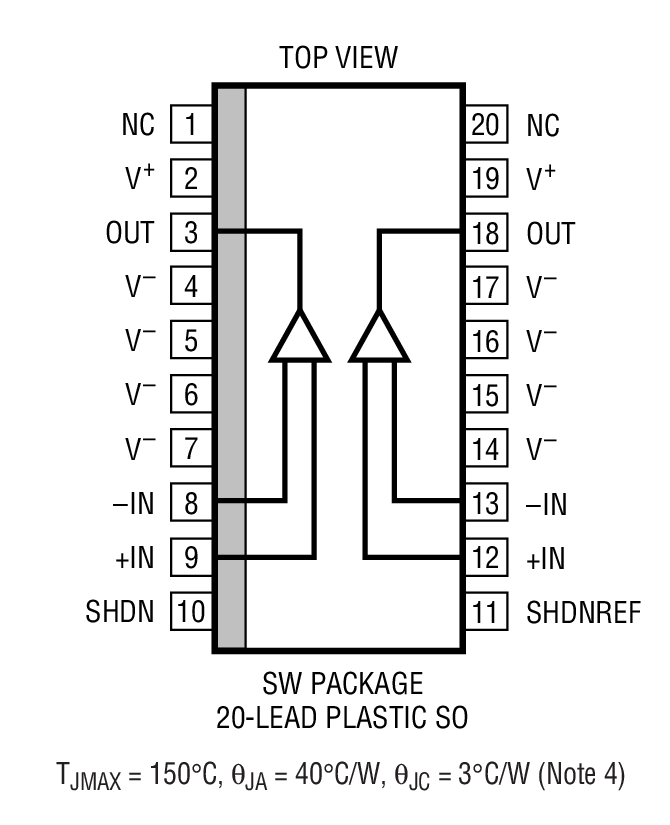

LT1794 - 封装图解:
LT1794封装图解一
LT1794封装图解二
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LT1794介绍
LT1794 - LT1794是Dual 500mA, 200MHz xDSL Line Driver Amplifier

LT1794是Linear公司的一款高速放大器产品,LT1794是Dual 500mA, 200MHz xDSL Line Driver Amplifier,本站介绍了LT1794的封装应用图解、特点和优点、功能等,并给出了与LT1794相关的凌力尔特元器件型号供参考。

LT1794 - Dual 500mA, 200MHz xDSL Line Driver Amplifier

LT1794 - Dual 500mA, 200MHz xDSL Line Driver Amplifier - Linear Technology(凌力尔特)

功能描述
The LT?1794 is a 500mA minimum output current, dual op amp with outstanding distortion performance. The amplifiers are gain-of-ten stable, but can be easily compensated for lower gains. The extended output swing allows for lower supply rails to reduce system power. Supply current is set with an external resistor to optimize power dissipation. The LT1794 features balanced, high impedance inputs with low input bias current and input offset voltage. Active termination is easily implemented for further system power reduction. Short-circuit protection and thermal shutdown insure the device?s ruggedness.

The outputs drive a 100 Ohms load to ?11.1V with ?12V supplies, and ?10.9V with a 250mA load. The LT1794, with its increased swing on lower supplies, can be used to upgrade LT1795 line driver applications.

The LT1794 is available in the very small, thermally enhanced, 20-lead TSSOP for maximum port density in line driver applications. The 20-lead SW is also available.

特点
  • Exceeds All Requirements For Full Rate, Downstream ADSL Line Drivers
  • ?500mA Minimum Iout
  • ?11.1V Output Swing, VS = ?12V, RL = 100 Ohms
  • ?10.9V Output Swing, VS = ?12V, IL = 250mA
  • Low Distortion: ?82dBc at 1MHz, 2Vp-p Into 100 Ohms
  • Power Saving Adjustable Supply Current
  • Power Enhanced Small Footprint Packages:20-Lead TSSOP and 20-Lead SW
  • 200MHz Gain Bandwidth
  • 500V/μs Slew Rate
  • Specified at ±15V, ?12V and ±5V
  • 应用
  • High Density ADSL Central Office Line Drivers
  • High Efficiency ADSL, HDSL2, G.lite, SHDSL Line Drivers
  • Buffers
  • Test Equipment Amplifiers
  • Cable Drivers
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1794CFE TSSOP-20 C $6.50 $5.50
    LT1794CFE#PBF TSSOP-20 C $6.50 $5.50
    LT1794CFE#TR TSSOP-20 C $5.60
    LT1794CFE#TRPBF TSSOP-20 C $5.60
    LT1794CSW SW-20 C $5.85 $4.95
    LT1794CSW#PBF SW-20 C $5.85 $4.95
    LT1794CSW#TR SW-20 C $5.05
    LT1794CSW#TRPBF SW-20 C $5.05
    LT1794IFE TSSOP-20 I $7.15 $5.95
    LT1794IFE#PBF TSSOP-20 I $7.15 $5.95
    LT1794IFE#TR TSSOP-20 I $6.05
    LT1794IFE#TRPBF TSSOP-20 I $6.05
    LT1794ISW SW-20 I $6.95 $5.80
    LT1794ISW#PBF SW-20 I $6.95 $5.80
    LT1794ISW#TR SW-20 I $5.90
    LT1794ISW#TRPBF SW-20 I $5.90
