LT1886 - LT1886是Dual 700MHz, 200mA Operational Amplifier

LT1886是LINEAR凌力尔特公司的一款高速放大器产品，LT1886是LT1886是Dual 700MHz, 200mA Operational Amplifier，本站介绍了LT1886的封装应用图解、特点和优点、功能等，并给出了与LT1886相关的LINEAR元器件型号供参考。

LT1886 - LT1886是Dual 700MHz, 200mA Operational Amplifier - 高速放大器 - 信号调理 - 凌力尔特

LT1886 - Dual 700MHz, 200mA Operational Amplifier

LT1886 - Dual 700MHz, 200mA Operational Amplifier - Linear Technology（凌力尔特）

功能描述

The LT?1886 is a 200mA minimum output current dual op amp with outstanding distortion performance. The amplifiers are gain-of-ten stable, but can be easily compensated for lower gains. The LT1886 features balanced, high impedance inputs with 4μA maximum input bias current, and 4mV maximum input offset voltage. Single supply applications are easy to implement and have lower total noise than current feedback amplifier implementations.

The output drives a 25 OHMS load to ?4.3V with ?6V supplies. On ±2.5V supplies the output swings ?1.5V with a 100 OHMS load. The amplifier is stable with a 1000pF capacitive load which makes it useful in buffer and cable driver applications.

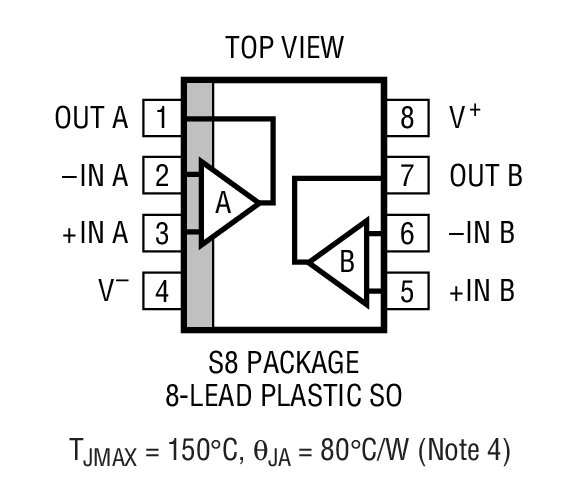

The LT1886 is manufactured on Linear Technology's advanced low voltage complementary bipolar process and is available in a thermally enhanced SO-8 package.

特点

700MHz Gain Bandwidth

?200mA Minimum IOUT

Low Distortion: ?72dBc at 1MHz, 4VP-P, 25Ohms, AV = 2

Stable in AV >/= 10, Simple Compensation for AV < 10

?4.3V Minimum Output Swing, VS = ?6V, RL = 25Ohms

7mA Supply Current per Amplifier

200V/μs Slew Rate

Stable with 1000pF Load

6nV/rtHz Input Noise Voltage

2pA/rtHz Input Noise Current

4mV Maximum Input Offset Voltage
