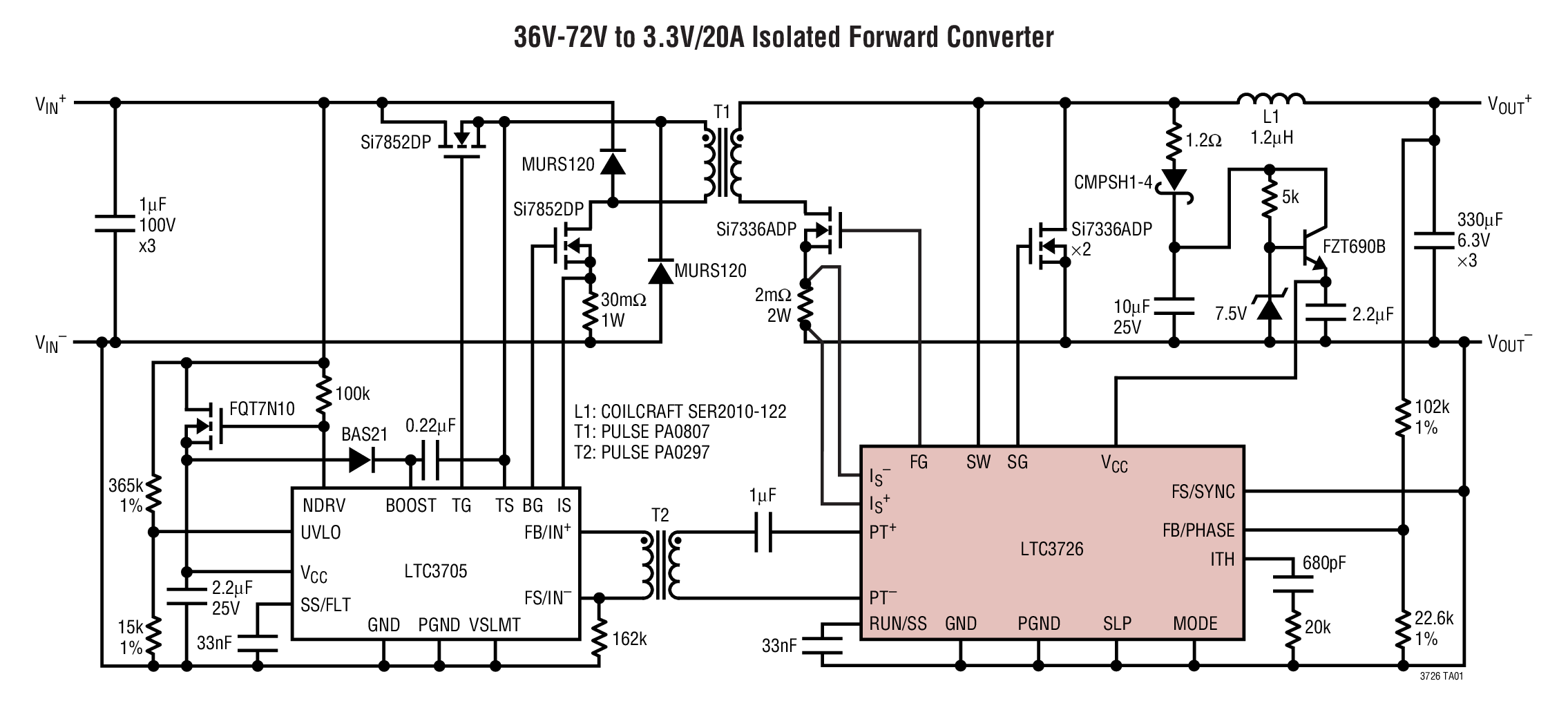

LTC3726典型应用图例一
LTC3726 - 封装图解：

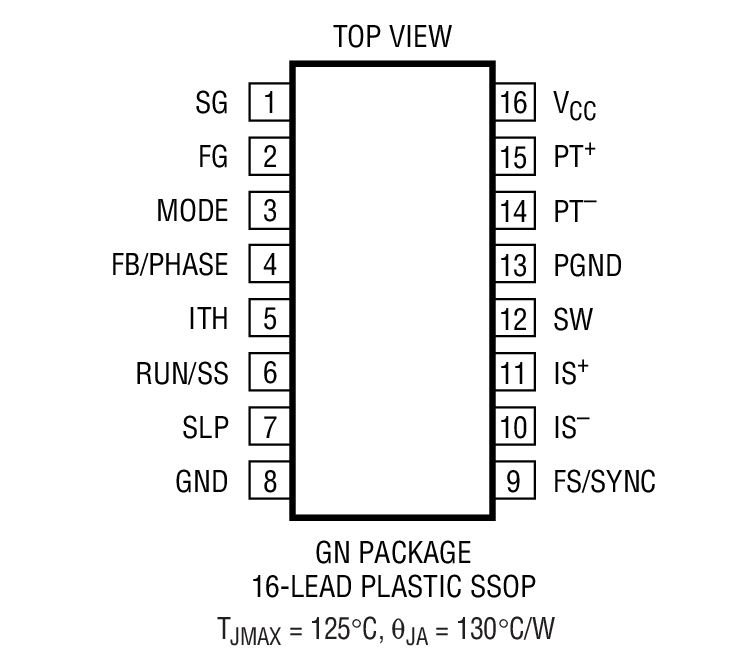

LTC3726封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC3726介绍

LTC3726 - LTC3726是Secondary-Side Synchronous Forward Controller

LTC3726是LINEAR凌力尔特公司的一款反激式、正激式和隔离式控制器产品，LTC3726是LTC3726是Secondary-Side Synchronous Forward Controller，本站介绍了LTC3726的封装应用图解、特点和优点、功能等，并给出了与LTC3726相关的LINEAR元器件型号供参考。

LTC3726 - LTC3726是Secondary-Side Synchronous Forward Controller - 反激式、正激式和隔离式控制器 - 电源管理 - 凌力尔特

LTC3726 - Secondary-Side Synchronous Forward Controller

LTC3726 - Secondary-Side Synchronous Forward Controller - Linear Technology（凌力尔特）

功能描述

The LTC3726 is a secondary-side controller for synchronous forward converters. When used in conjunction with the LTC3705/LTC3725 gate driver and primary-side controllers, the part creates a complete isolated power supply that combines the simplicity of OPTI-LOOP compensation with the speed of secondary-side control.

The LTC3726 has been designed to simplify the design of highly efficient, secondary-side forward converters. Working in concert with the LTC3705 or LTC 3725, the LTC3726 forms a robust, self-starting converter that eliminates the need for the separate bias regulator that is commonly used in secondary-side control applications. In addition, a proprietary scheme is used to multiplex gate drive signals and DC bias power across the isolation barrier through a single, tiny pulse transformer.

The LTC3726 is available in a 16-lead SSOP package.

特点
  • Secondary-Side Control for Fast Transient Response
  • Self-Starting Architecture Eliminates Need for Separate Bias Regulator
  • Proprietary Gate Drive Encoding Scheme Reduces System Complexity
  • Current Mode Control Ensures Current Sharing
  • PLL Fixed Frequency: 100kHz to 500kHz
  • ±1% Output Voltage Accuracy
  • OPTI-LOOP Compensation
  • Available in a Narrow 16-Lead SSOP Package
    • 应用
  • Isolated 48V Telecommunication Systems
  • Internet Servers and Routers
  • Distributed Power Step-Down Converters
  • Automotive and Heavy Equipment
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC3726EGN SSOP-16 E $4.56 $3.19
    LTC3726EGN#PBF SSOP-16 E $4.56 $3.19
    LTC3726EGN#TR SSOP-16 E $3.25
    LTC3726EGN#TRPBF SSOP-16 E $3.25
    LTC3726IGN SSOP-16 I $5.04 $3.51
    LTC3726IGN#PBF SSOP-16 I $5.04 $3.51
    LTC3726IGN#TR SSOP-16 I $3.57
    LTC3726IGN#TRPBF SSOP-16 I $3.57
