LTC1709-9 - LTC1709-9是2-Phase, 5-Bit VID, Current Mode, High Efficiency, Synchronous Step-Down Switching Regulators
LTC1709-9是Linear公司的一款数字可编程的降压型稳压器产品，LTC1709-9是2-Phase, 5-Bit VID, Current Mode, High Efficiency, Synchronous Step-Down Switching Regulators，本站介绍了LTC1709-9的封装应用图解、特点和优点、功能等，并给出了与LTC1709-9相关的凌力尔特元器件型号供参考。
LTC1709-9 - 2-Phase, 5-Bit VID, Current Mode, High Efficiency, Synchronous Step-Down Switching Regulators
LTC1709-9 - 2-Phase, 5-Bit VID, Current Mode, High Efficiency, Synchronous Step-Down Switching Regulators - Linear Technology（凌力尔特）

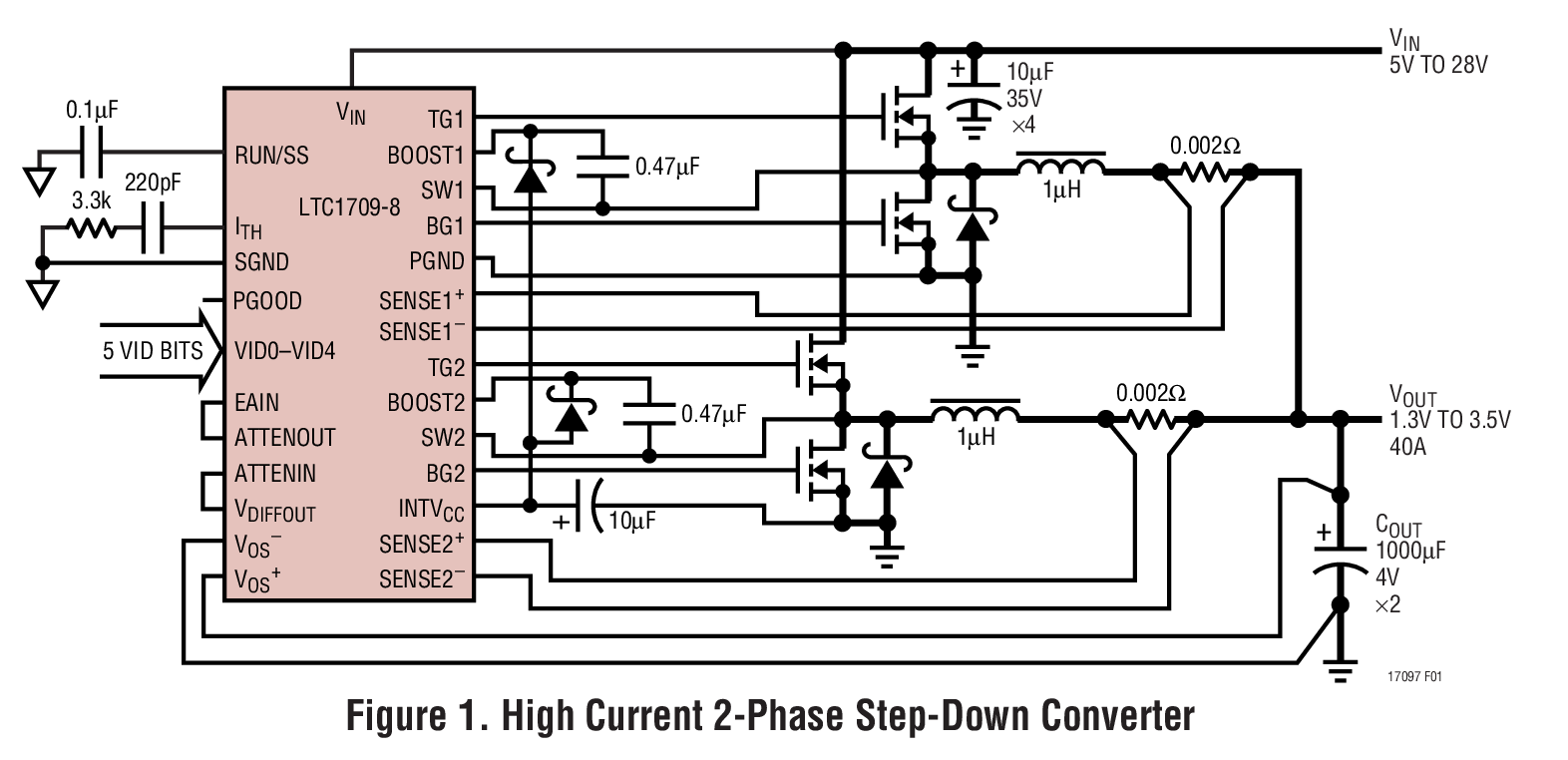

功能描述
The LTC1709-8/LTC1709-9 are 2-phase, VID programmable, synchronous step-down switching regulator controllers that drive two all N-channel external power MOSFET stages in a fixed frequency architecture. The 2-phase controller drives its two output stages out of phase at frequencies from 150kHz to 300kHz to minimize the RMS ripple currents in both input and output capacitors. The 2-phase technique effectively multiplies the fundamental frequency by two, improving transient response while operating each channel at an optimum frequency for efficiency. Thermal design is also simplified.
An internal differential amplifier provides true remote sensing of the regulated supply’s positive and negative output terminals as required for high current applications.
The RUN/SS pin provides soft-start and optional timed, short-circuit shutdown. Current foldback limits MOSFET dissipation during short-circuit conditions when the overcurrent latchoff is disabled. OPTI-LOOP compensation allows the transient response to be optimized for a wide range of output capacitors and ESR values. The LTC1709-8/LTC1709-9 implement two different VID tables compliant with VRM8.4 and VRM9.0 respectively.
特点
Single Controller Operates Two Output Stages Antiphase Reducing Required Input Capacitance and Power Supply Induced Noise Two 5-Bit Desktop VID Codes: LTC1709-8 For VRM8.4 (VOUT from 1.3V to 3.5V) LTC1709-9 For VRM9.0 (VOUT from 1.1V to 1.85V) Current Mode Control Ensures Best Current Sharing True Remote Sensing Differential Amplifier Power Good Output Indicator OPTI-LOOP™ Compensation Minimizes COUT Programmable Fixed Frequency: 150kHz to 300kHz ±1% Output Voltage Accuracy Wide VIN Range: 4V to 36V Operation Adjustable Soft-Start Current Ramping Internal Current Foldback and Short-Circuit Shutdown Overvoltage Soft Latch Eliminates Nuisance Trips Low Shutdown Current: 20µA Available in 36-Lead Narrow SSOP Package应用
Workstations Internet Servers Large Memory Arrays DC Power Distribution Systems以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

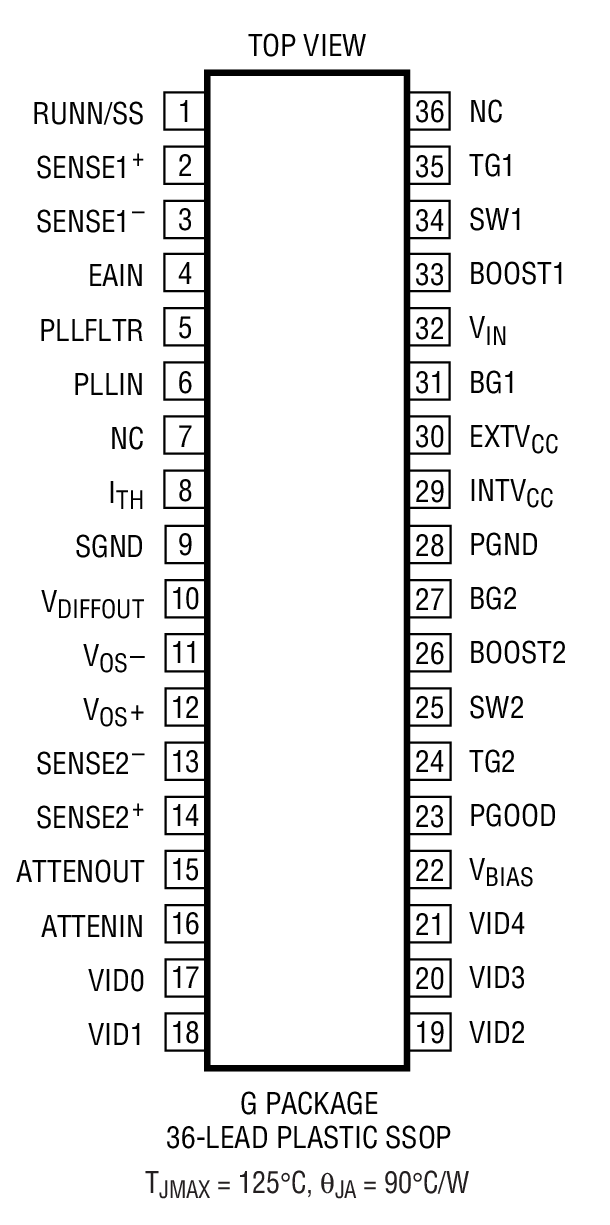

| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LTC1709EG-9 | SSOP-36 | E | $5.60 | $4.75 |
| LTC1709EG-9#PBF | SSOP-36 | E | $5.60 | $4.75 |
| LTC1709EG-9#TR | SSOP-36 | E | | $4.85 |
| LTC1709EG-9#TRPBF | SSOP-36 | E | | $4.85 |
