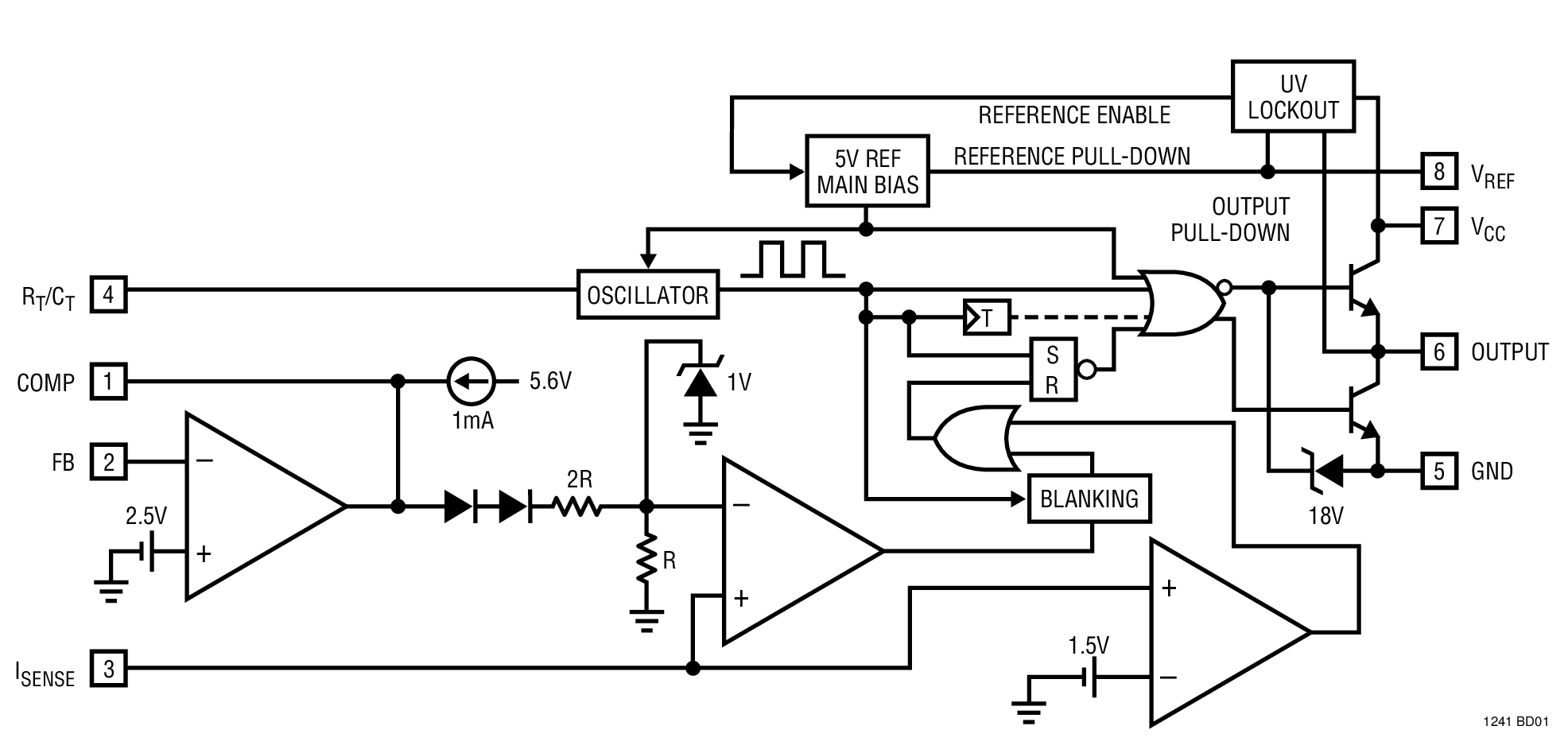

LT1242 - 典型应用图例：
LT1242典型应用图例一

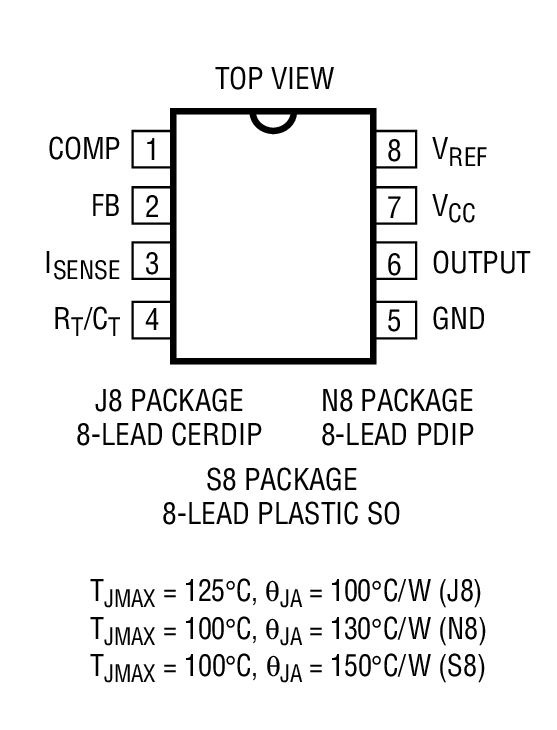

LT1242 - 封装图解：
LT1242封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1242介绍

LT1242 - LT1242是High Speed Current Mode Pulse Width Modulators

LT1242是LINEAR凌力尔特公司的一款PWM 控制器产品，LT1242是LT1242是High Speed Current Mode Pulse Width Modulators，本站介绍了LT1242的封装应用图解、特点和优点、功能等，并给出了与LT1242相关的LINEAR元器件型号供参考。

LT1242 - LT1242是High Speed Current Mode Pulse Width Modulators - PWM 控制器 - 电源管理 - 凌力尔特

LT1242 - High Speed Current Mode Pulse Width Modulators

LT1242 - High Speed Current Mode Pulse Width Modulators - Linear Technology（凌力尔特）

功能描述
The LT1241 series devices are 8-pin, fixed frequency, current mode, pulse width modulators. They are improved plug compatible versions of the industry standard UC1842 series. These devices have both improved speed and lower quiescent current. The LT1241 series is optimized for off-line and DC/DC converter applications. They contain a temperature-compensated reference, high gain error amplifier, current sensing comparator and a high current totem pole output stage ideally suited to driving power MOSFETs. Start-up current has been reduced to less than 250µA. Cross-conduction current spikes in the output stage have been eliminated, making 500kHz operation practical. Several new features have been incorporated. Leading edge blanking has been added to the current sense comparator. Trims have been added to the oscillator circuit for both frequency and sink current, and both of these parameters are tightly specified. The output stage is clamped to a maximum VOUT of 18V in the on state. The output and the reference output are actively pulled low during undervoltage lockout.
特点
  • Low Start-Up Current: <250µA
  • 50ns Current Sense Delay
  • Current Mode Operation: To 500kHz
  • Pin Compatible with UC1842 Series
  • Undervoltage Lockout with Hysteresis
  • No Cross-Conduction Current
  • Trimmed Bandgap Reference
  • 1A Totem Pole Output
  • Trimmed Oscillator Frequency and Sink Current
  • Active Pull-Down on Reference and Output During Undervoltage Lockout
  • High Level Output Clamp: 18V
  • Current Sense Leading Edge Blanking
    • 应用
  • Off-Line Converters
  • DC/DC Converters
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1242CN8 N-8 C $2.33 $1.95
    LT1242CN8#PBF N-8 C $2.33 $1.95
    LT1242CS8 SO-8 C $2.58 $2.20
    LT1242CS8#PBF SO-8 C $2.58 $2.20
    LT1242CS8#TR SO-8 C $2.26
    LT1242CS8#TRPBF SO-8 C $2.26
    LT1242IN8 N-8 I $2.58 $2.20
    LT1242IN8#PBF N-8 I $2.58 $2.20
    LT1242IS8 SO-8 I $2.83 $2.40
    LT1242IS8#PBF SO-8 I $2.83 $2.40
    LT1242IS8#TR SO-8 I $2.46
    LT1242IS8#TRPBF SO-8 I $2.46
