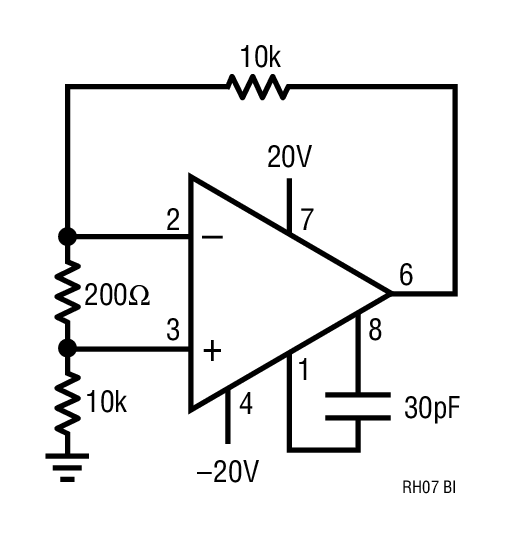

RH07W - 典型应用图例：

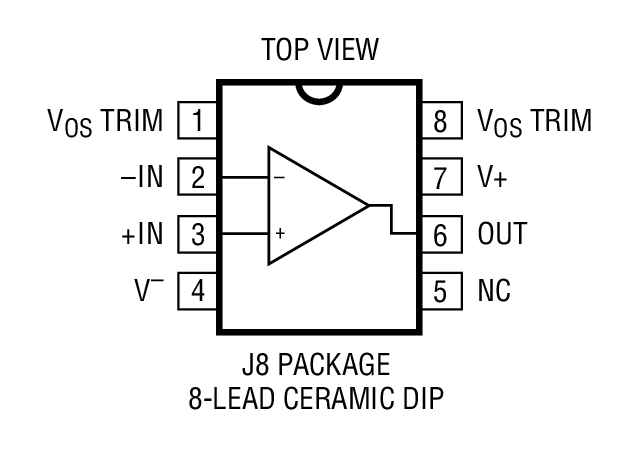

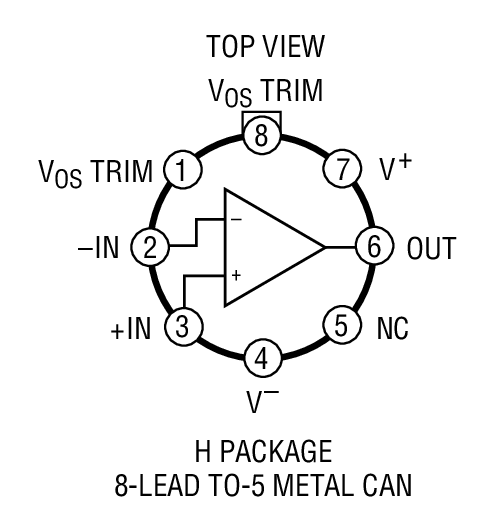

RH07W - 封装图解：

RH07W - RH07W是Operational Amplifier

RH07W是Linear公司的一款合乎航天使用要求的放大器产品，RH07W是Operational Amplifier，本站介绍了RH07W的封装应用图解、特点和优点、功能等，并给出了与RH07W相关的凌力尔特元器件型号供参考。

RH07W - Operational Amplifier

RH07 - Operational Amplifier - Linear Technology（凌力尔特）

功能描述

The RH07 is a precision op amp which provides very low offset voltage, low drift and low noise. In the design, processing and testing of the device, particular attention has been paid to the optimization of the entire distribution of several key parameters. The wafer lots are processed to LTC’s in-house Class S flow to yield circuits usable in stringent military applications.

For complete electrical specifications, performance curves, application notes and applications circuits, see the OP-07 data sheet.

特点

ABSOLUTE MAXIMUM RATINGS

Supply Voltage: ±22V

Differential Input Voltage: ±30V

Input Voltage: ±22V

Output Short-Circuit Duration (Note 3): Indefinite

Operating Temperature Range: –55°C to 125°C

Storage Temperature Range: –65°C to 150°C

Lead Temperature (Soldering, 10 sec): 300°C

应用

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
