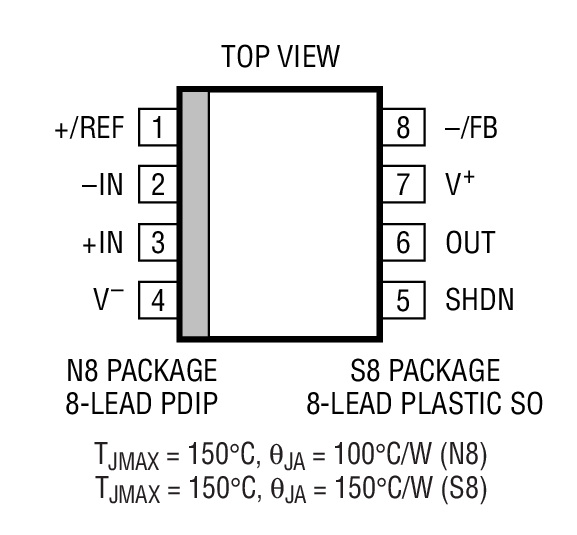

LT1193 - 封装图解：

LT1193 - LT1193是Video Difference Amplifier

LT1193是Linear公司的一款高速放大器产品，LT1193是Video Difference Amplifier，本站介绍了LT1193的封装应用图解、特点和优点、功能等，并给出了与LT1193相关的凌力尔特元器件型号供参考。

LT1193 - Video Difference Amplifier

LT1193 - Video Difference Amplifier - Linear Technology（凌力尔特）

功能描述

The LT?1193 is a video difference amplifier optimized foroperation on ±5V and a single 5V supply. This versatileamplifier features uncommitted high input impedance (+)and (?) inputs, and can be used in differential or single endedconfigurations. Additionally, a second set of inputsgive gain adjustment and DC control to the differentialamplifier.

The LT1193μs high slew rate, 500V/μs, wide bandwidth,80MHz, and ?50mA output current make it ideal fordriving cables directly. The shutdown feature reduces thepower dissipation to a mere 15mW and allows multipleamplifiers to drive the same cable.

The LT1193 is available in 8-pin PDIP and SO packages.

特点

Differential or Single-Ended Gain Block (Adjustable)

-3dB Bandwidth, AV = ?2: 80MHz

Slew Rate 500V/μs

Low Cost

Output Current ?50mA

Settling Time: 180ns to 0.1%

CMRR at 10MHz: >40dB

Differential Gain Error: 0.2%

Differential Phase Error: 0.08?

Single 5V Operation

Drives Cable Directly

Output Shutdown

应用

Line Receivers

Video Signal Processing

Cable Drivers

Oscillators

Tape and Disc Drive Systems

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1193CN8	N-8	C	$3.67	$2.90
LT1193CN8#PBF	N-8	C	$3.67	$2.90
LT1193CS8	SO-8	C	$4.08	$3.30
LT1193CS8#PBF	SO-8	C	$4.08	$3.30
LT1193CS8#TR	SO-8	C		$3.36
LT1193CS8#TRPBF	SO-8	C		$3.36
LT1193IS8	SO-8	I	$4.10	$3.65
LT1193IS8#PBF	SO-8	I	$4.10	$3.65
LT1193IS8#TR	SO-8	I		$3.71
LT1193IS8#TRPBF	SO-8	I		$3.71
