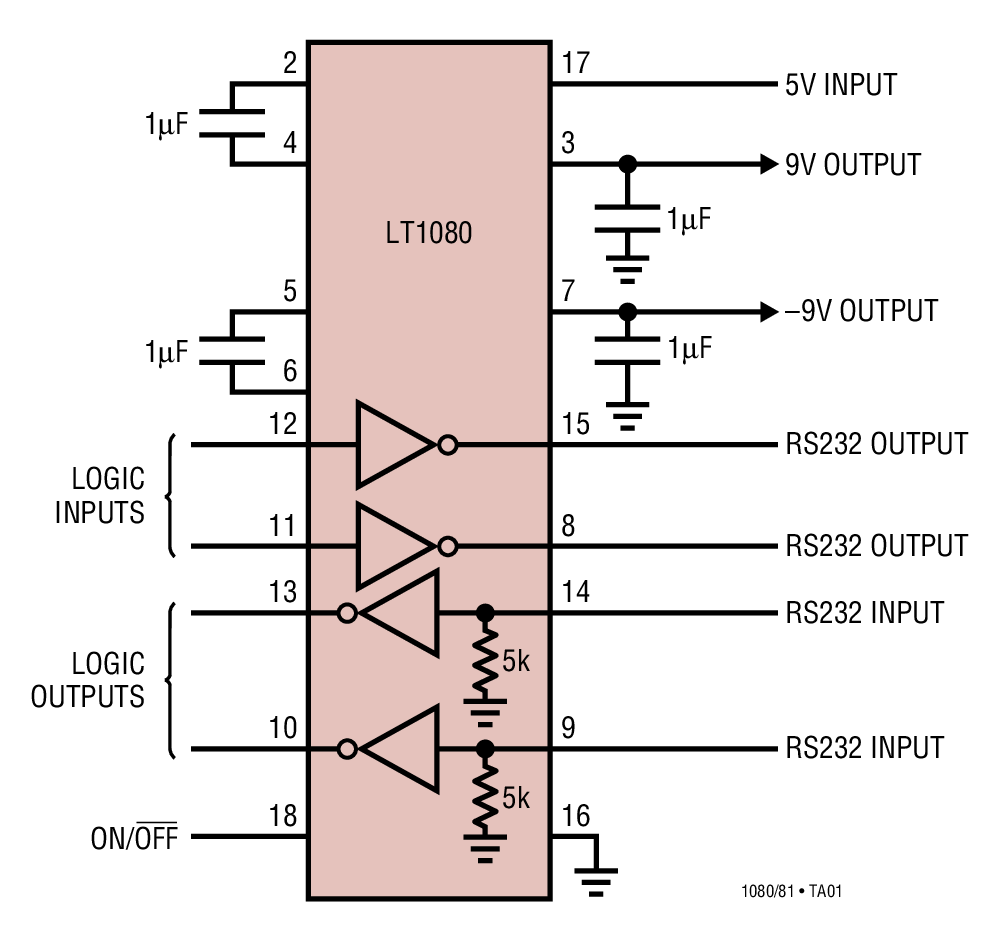

LT1080典型应用图例一

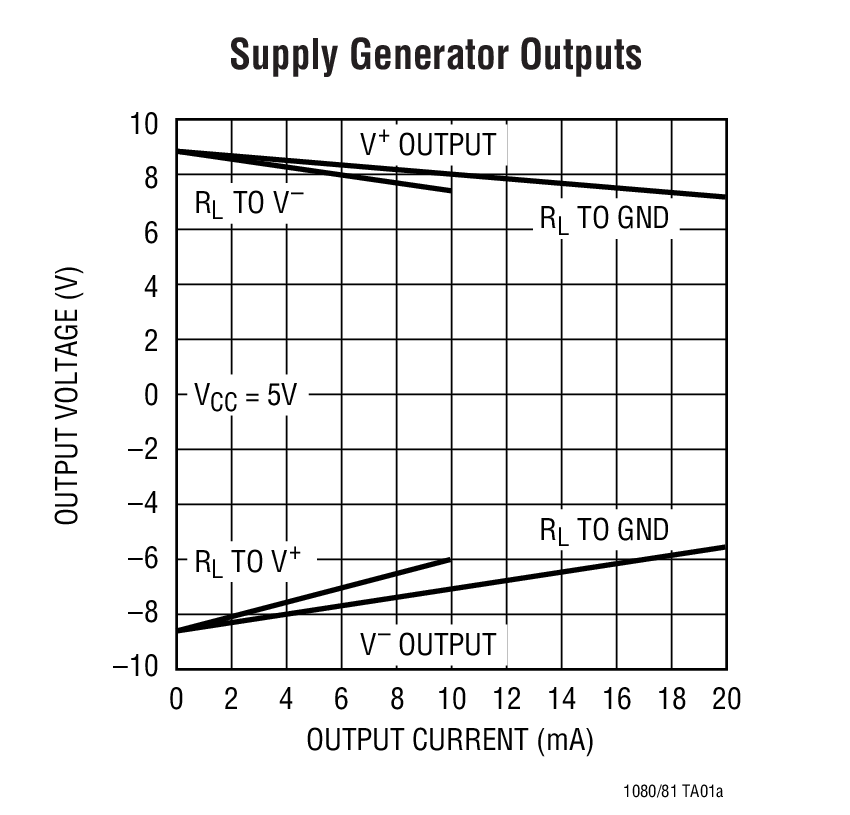

LT1080典型应用图例二
LT1080 - 封装图解：

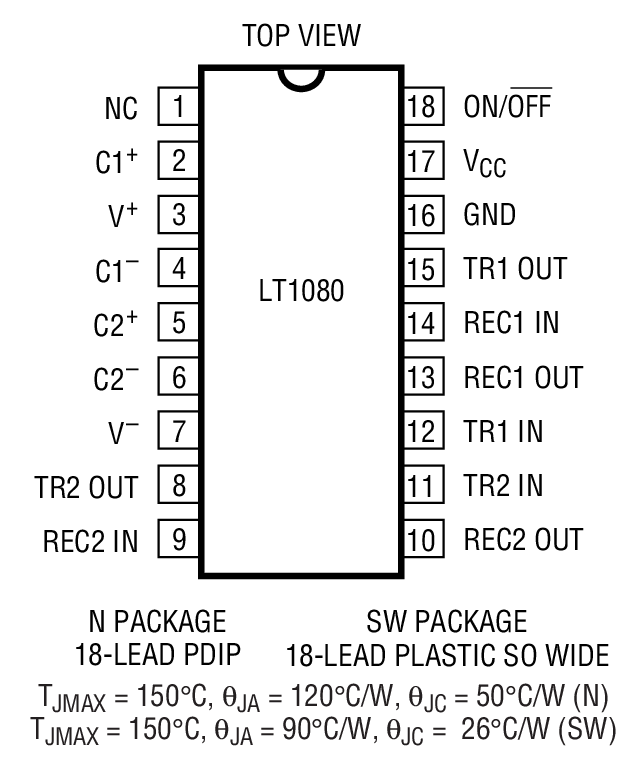

LT1080封装图解一
LT1080封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1080介绍

LT1080 - LT1080是Advanced Low Power 5V RS232 Dual Driver/Receiver

LT1080是LINEAR凌力尔特公司的一款RS232 / RS562 收发器产品，LT1080是LT1080是Advanced Low Power 5V RS232 Dual Driver/Receiver，本站介绍了LT1080的封装应用图解、特点和优点、功能等，并给出了与LT1080相关的LINEAR元器件型号供参考。

LT1080 - LT1080是Advanced Low Power 5V RS232 Dual Driver/Receiver - RS232 / RS562 收发器 - 接口器件 - 凌力尔特

LT1080 - Advanced Low Power 5V RS232 Dual Driver/Receiver

LT1080 - Advanced Low Power 5V RS232 Dual Driver/Receiver - Linear Technology（凌力尔特）

功能描述

Most H (Metal Can), J (Ceramic), and K (Metal Can) Packages from Linear Technology Are Now Obsolete

Download Complete Datasheet for Details

The LT1080/LT1081 are the only dual RS232 driver/receiver with charge pump to guarantee absolutely no latchup. These interface optimized devices provide a realistic balance between CMOS levels of power dissipation and real world requirements for ruggedness. The driver outputs are fully protected against overload and can be shorted to ±30V. Unlike CMOS, the advanced architecture of the LT1080/LT1081 does not load the signal line when “shut down” or when power is off. Both the receiver and RS232 outputs are put into a high impedance state. An advanced output stage allows driving higher capacitive loads at higher speeds with exceptional ruggedness against ESD.

For applications requiring up to five drivers and five receivers with charge pump in one package see the LT1130A Series data sheet. A version of the LT1080/LT1081, the LT1180A and LT1181A that use only 0.1µF capacitors, is also available. All of Linear Technology’s RS232 ICs are available in standard surface mount packages.

特点
  • Superior to CMOS Improved Speed: -Operates over 120kBaud-Improved Protection: Outputs Can Be Forcedto ±30V
  • Absolutely No Latchup
  • CMOS Comparable Low Power: 60mW
  • Can Power Additional RS232 Drivers: 10mA
  • Supply Current in Shutdown: 1µA
  • Available in SO Package
  • Available with or without Shutdown
    • 应用
  • Portable Computers
  • Battery-Powered RS232 Systems
  • Power Supply Generator
  • Terminals
  • Modems
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1080CN N-18 C $3.75 $3.05
    LT1080CN#PBF N-18 C $3.75 $3.05
    LT1080CSW SW-18 C $4.00 $3.25
    LT1080CSW#PBF SW-18 C $4.00 $3.25
    LT1080CSW#TR SW-18 C $3.35
    LT1080CSW#TRPBF SW-18 C $3.35
    LT1080IN N-18 I $5.08 $4.10
    LT1080IN#PBF N-18 I $5.08 $4.10
    LT1080ISW SW-18 I $6.08 $4.95
    LT1080ISW#PBF SW-18 I $6.08 $4.95
    LT1080ISW#TR SW-18 I $5.05
    LT1080ISW#TRPBF SW-18 I $5.05
