LTC3200 - LTC3200是Low Noise, Regulated Charge Pump DC/DC Converters

LTC3200是LINEAR凌力尔特公司的一款稳压的升压型充电泵产品，LTC3200是LTC3200是Low Noise, Regulated Charge Pump DC/DC Converters，本站介绍了LTC3200的封装应用图解、特点和优点、功能等，并给出了与LTC3200相关的LINEAR元器件型号供参考。

LTC3200 - LTC3200是Low Noise, Regulated Charge Pump DC/DC Converters - 稳压的升压型充电泵 - 电源管理 - 凌力尔特

LTC3200 - Low Noise, Regulated Charge Pump DC/DC Converters

LTC3200 - Low Noise, Regulated Charge Pump DC/DC Converters - Linear Technology（凌力尔特）

功能描述

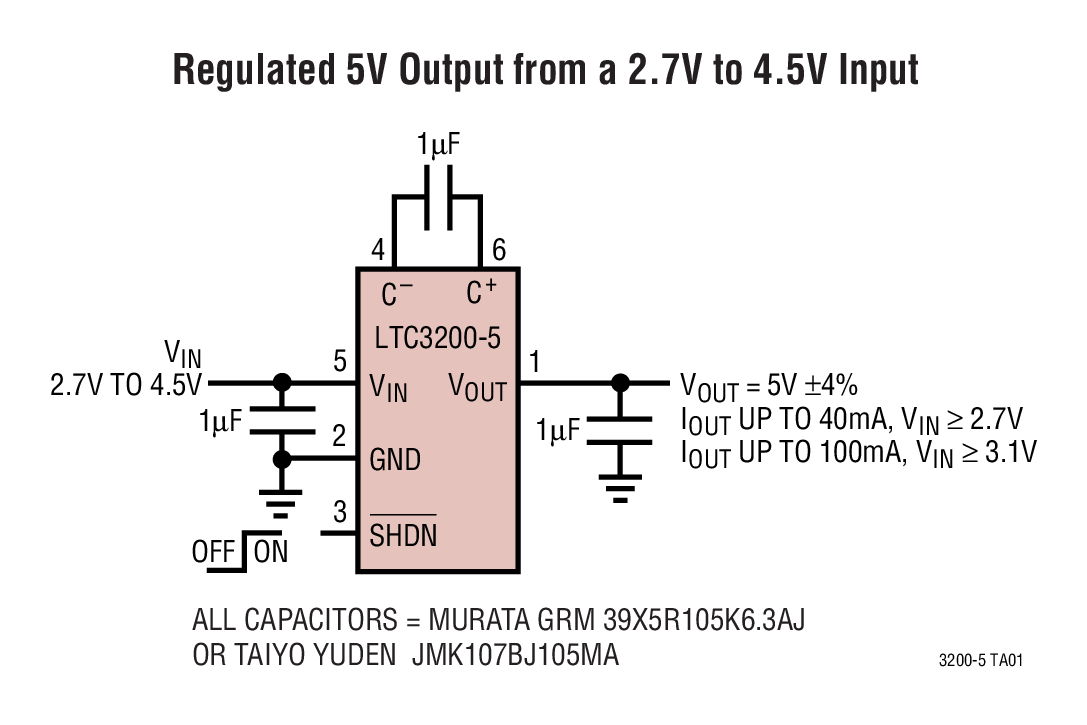

The LTC3200/LTC3200-5 are low noise, constant frequency switched capacitor voltage doublers. They produce a regulated output voltage from a 2.7V to 4.5V input with up to 100mA of output current. Low external parts count (one flying capacitor and two small bypass capacitors at VIN and VOUT) make the LTC3200/LTC3200-5 ideally suited for small, battery-powered applications.

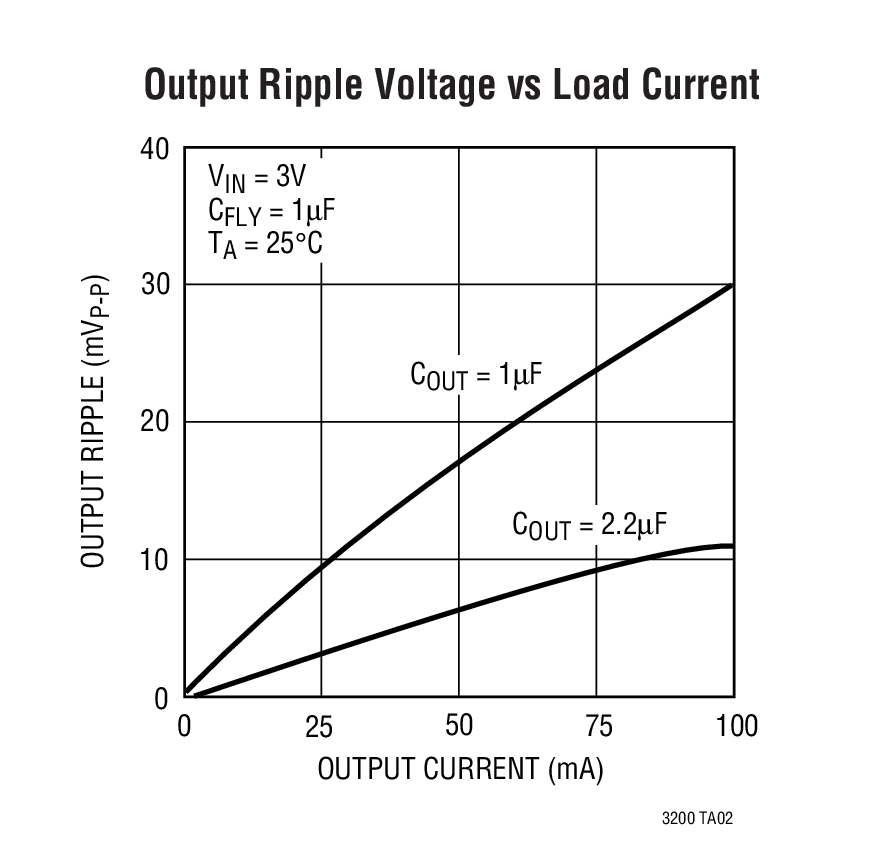

A new charge-pump architecture maintains constant switching frequency to zero load and reduces bith output and input ripple. The LTC3200/LTC3200-5 have thermal shutdown capability and can survive a continuous short-circuit from VOUT to GND. Built-in soft-start circuitry prevents excessive inrush curreent during start-up.

High switching frequency enables the use of small ceramic capacitors. A low current shutdown feature disconnects the load from VIN and reduces quiescent current to <1μA.

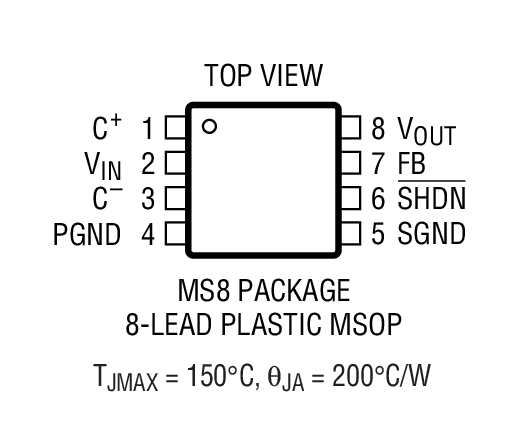

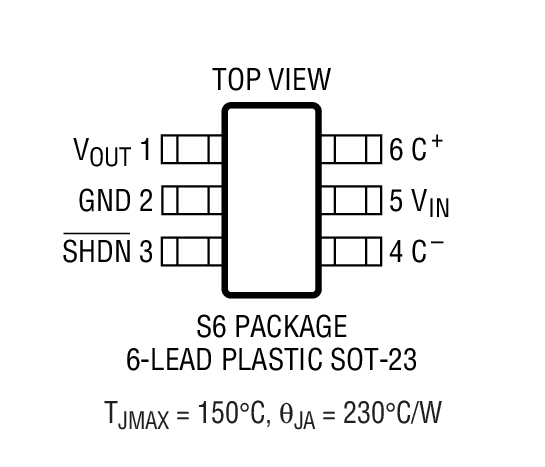

The LTC3200 is available in an 8-pin MSOP package and the LTC3200-5 is available in a 6-pin SOT-23.

特点

Low Noise Constant Frequency Operation

Output Current: 100mA

Fixed 5V ±4% Output (LTC3200-5) or ADJ

VIN Range: 2.7V to 4.5V

Automatic Soft-Start Reduces Inrush Current

2MHz Switching Frequency

No Inductors

ICC < 1μA in Shutdown

Available in 8-Pin MSOP (LTC3200) and Low Profile (1mm) 6-Pin ThinSOT? (LTC3200-5) Packages

应用

Li-Ion Battery Backup Supplies

Local 3V to 5V Conversion

Smart Card Readers

PCMCIA Local 5V Supplies

White LED Backlighting

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC3200EMS8	MS-8	E	$2.00	$1.70
LTC3200EMS8#PBF	MS-8	E	$2.00	$1.70
LTC3200EMS8#TR	MS-8	E		$1.76
LTC3200EMS8#TRPBF	MS-8	E		$1.76
LTC3200ES6-5	SOT-23	E	$1.98
LTC3200ES6-5#PBF	SOT-23	E	$1.98
LTC3200ES6-5#TR	SOT-23	E	$1.98	$1.66
LTC3200ES6-5#TRM	SOT-23	E	$1.98	$1.68
LTC3200ES6-5#TRMPBF	SOT-23	E	$1.98	$1.68
LTC3200ES6-5#TRPBF	SOT-23	E	$1.98	$1.66
