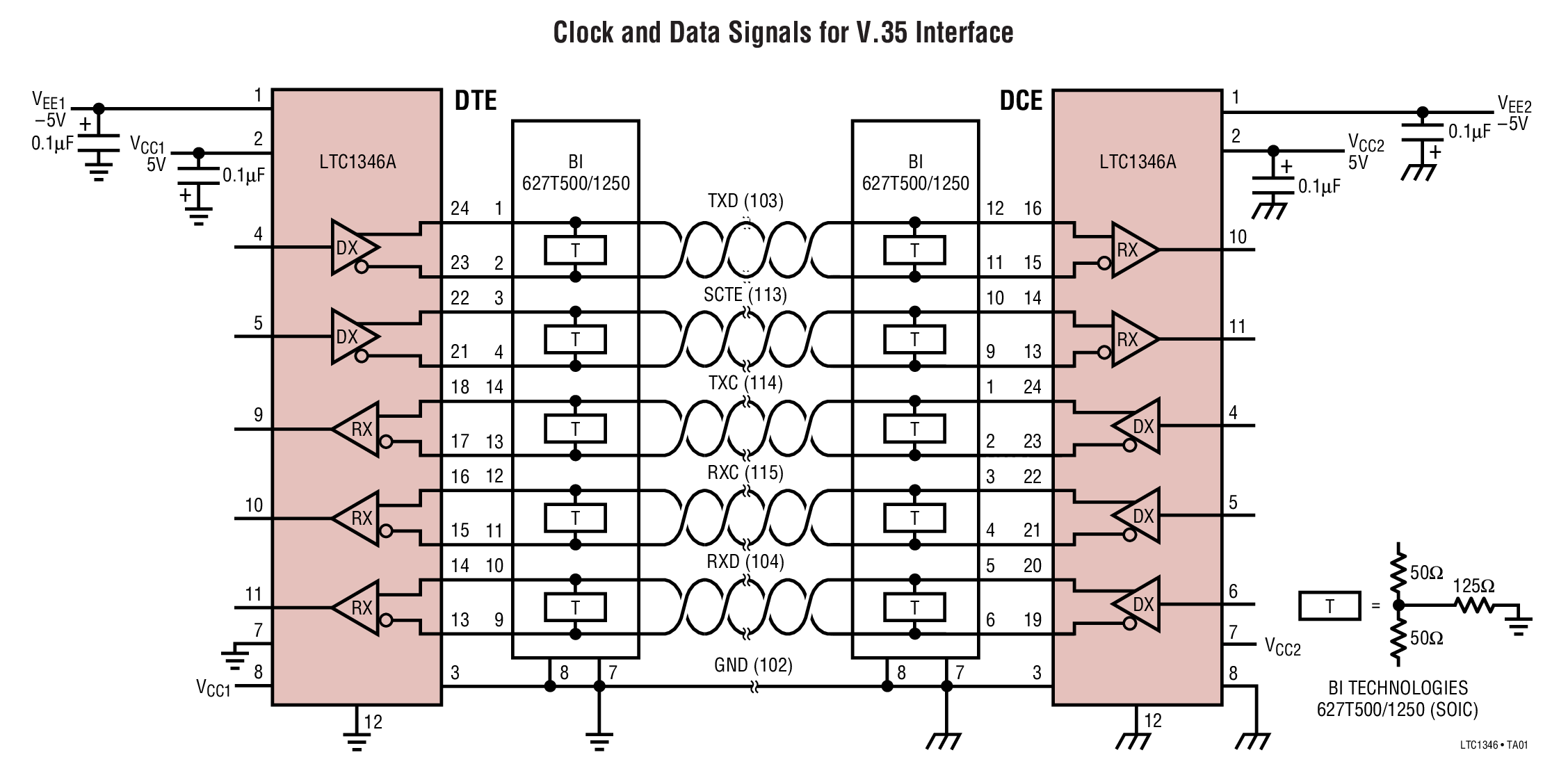

LTC1346A典型应用图例
LTC1346A典型应用图例一

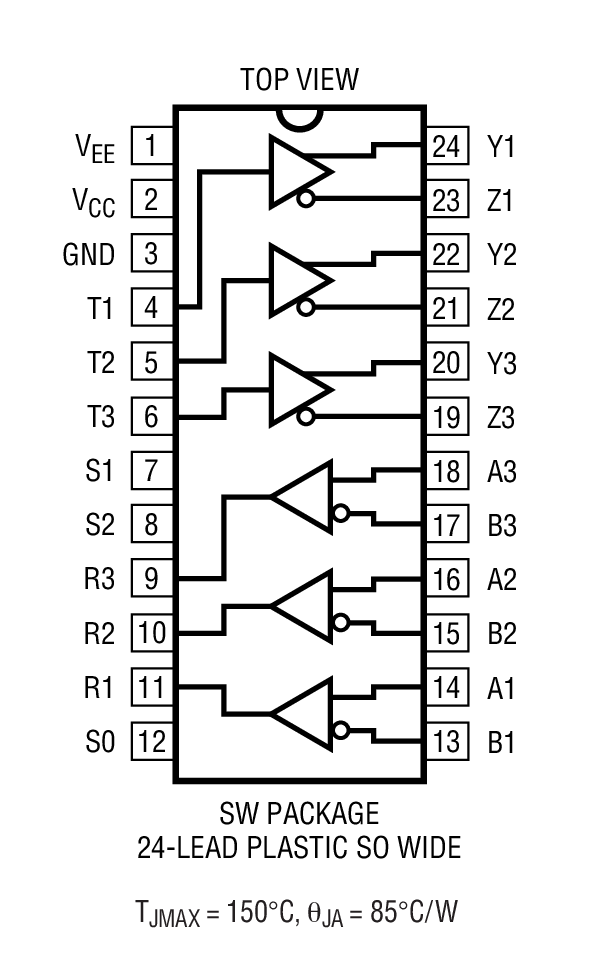

LTC1346A封装图解
LTC1346A封装图解一
LTC1346A是10Mbps DCE/DTE V.35 Transceiver

LTC1346A - 10Mbps DCE/DTE V.35 Transceiver

LTC1346A - 10Mbps DCE/DTE V.35 Transceiver - Linear Technology(凌力尔特)

功能描述

The LTC1346A is a single chip transceiver that providesthe differential clock and data signals for a V.35 interface from ±5V supplies. Combined with an external resistor termination network and an LT1134A RS232 transceiver for the control signals, the LTC1346A forms a complete low power DTE or DCE V.35 interface port.

The LTC1346A features three current output differential transmitters and three differential receivers. The transceiver can be configured for DTE or DCE operation or shutdown using three Select pins. In the Shutdown mode, the supply current is reduced to below 1µA.

The LTC1346A transceiver operates up to 10Mbaud. All transmitters feature short-circuit protection. Both the transmitter outputs and the receiver outputs can be forced into a high impedance state. The transmitter outputs and receiver inputs feature ±10kV ESD protection.

特点
  • Single Chip Provides Complete Differential Signal Interface for V.35 Port
  • Drivers and Receivers Will Withstand Repeated ±10kV ESD Pulses
  • Operates from ±5V Supplies
  • 10Mbaud Transmission Rate
  • Meets CCITT V.35 Specification
  • Shutdown Mode Reduces ICC to Below 1µA
  • Selectable Transmitter and Receiver Configurations
  • Independent Driver/Receiver Enables
  • Transmitter Maintains High Impedance When Disabled, Shut Down or with Power Off
  • Transmitters Are Short-Circuit Protected
  • 应用
  • Modems
  • Telecommunications
  • Data Routers
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1346ACSW SW-24 C $8.25 $6.75
    LTC1346ACSW#PBF SW-24 C $8.25 $6.75
    LTC1346ACSW#TR SW-24 C $6.85
    LTC1346ACSW#TRPBF SW-24 C $6.85
