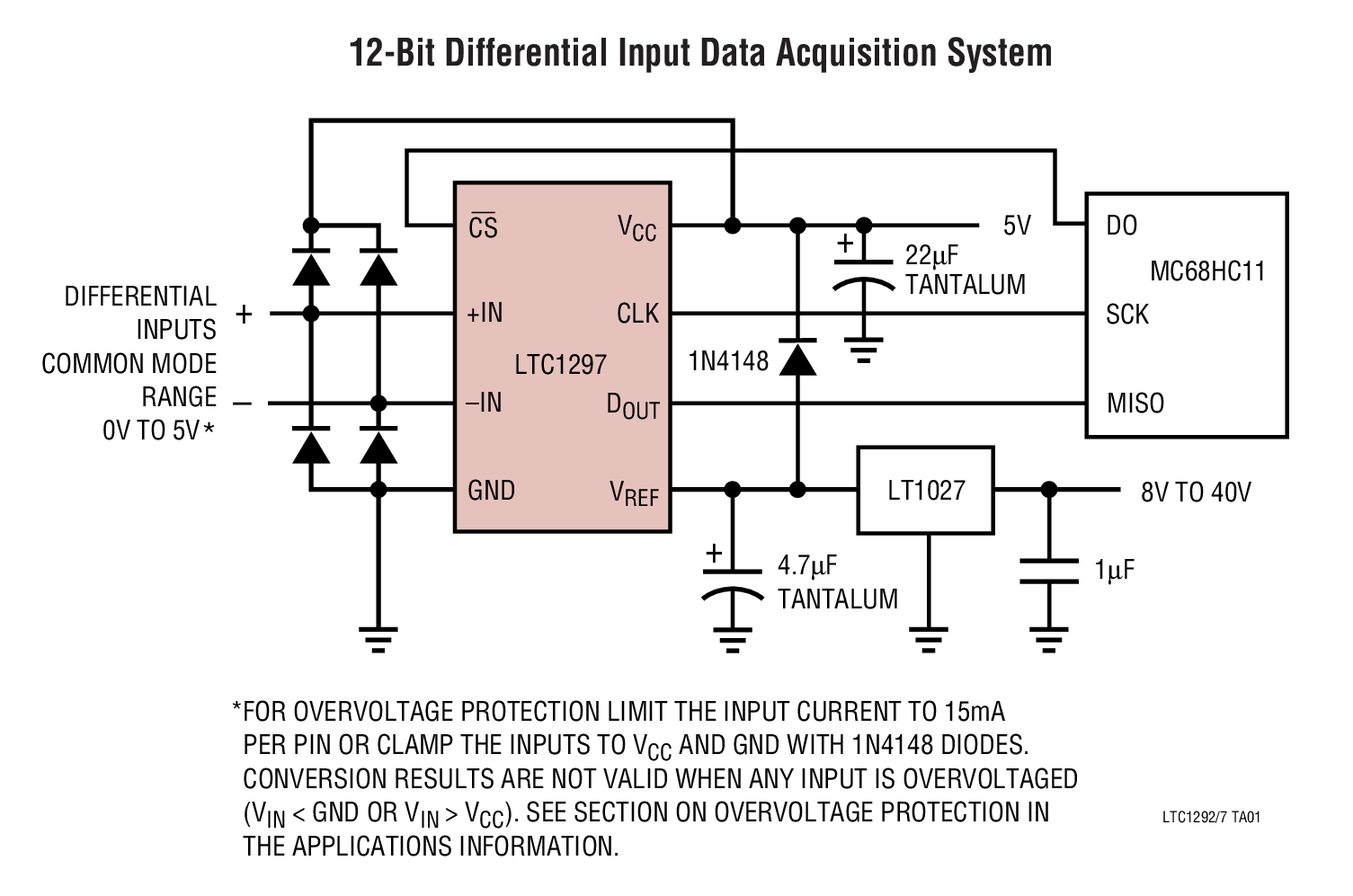

LTC1292典型应用图例一

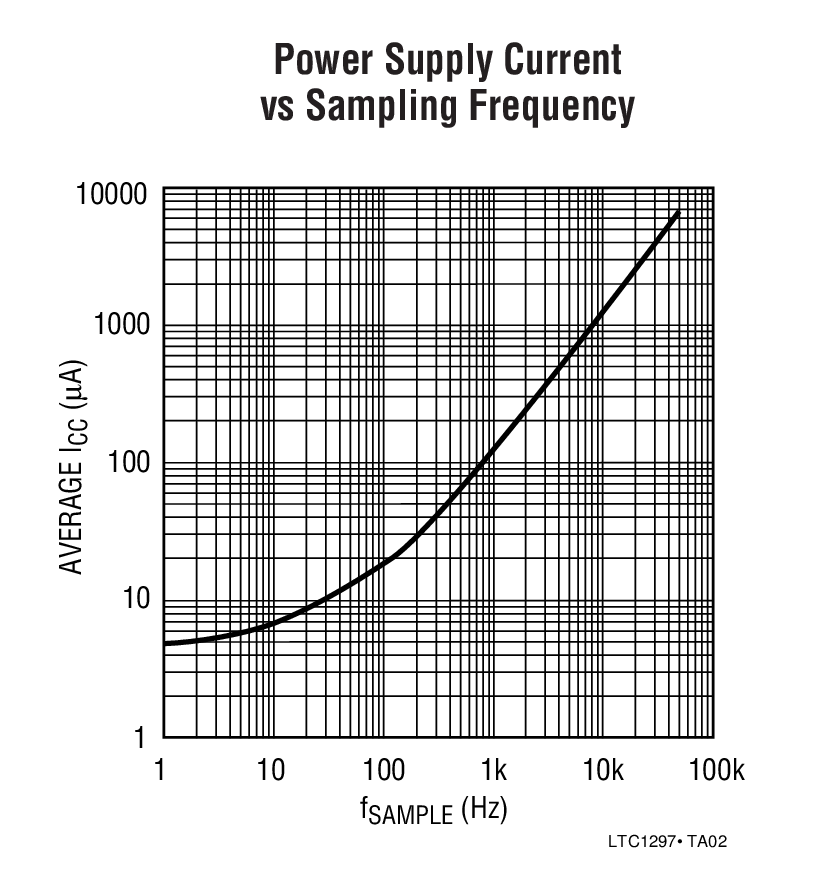

LTC1292典型应用图例二
LTC1292 - 封装图解：

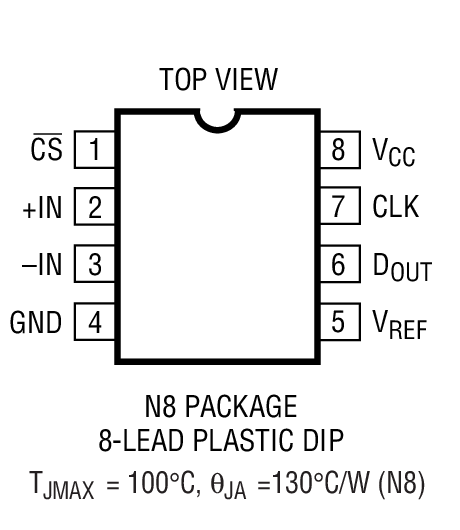

LTC1292封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1292介绍

LTC1292 - LTC1292是Single Chip 12-Bit Data Acquisition Systems

LTC1292是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1292是LTC1292是Single Chip 12-Bit Data Acquisition Systems，本站介绍了LTC1292的封装应用图解、特点和优点、功能等，并给出了与LTC1292相关的LINEAR元器件型号供参考。

LTC1292 - LTC1292是Single Chip 12-Bit Data Acquisition Systems - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1292 - Single Chip 12-Bit Data Acquisition Systems

LTC1292 - Single Chip 12-Bit Data Acquisition Systems - Linear Technology（凌力尔特）

功能描述

Most H (Metal Can), J (Ceramic), and K (Metal Can) Packages from Linear Technology Are Now Obsolete

The LTC1292/LTC1297 are data acquisition systems that contain a 12-bit, switched-capacitor successive approximation A/D, a differential input, sample-and-hold on the (+) input, and serial I/O. When the LTC1297 is idle between conversions it automatically powers down reducing the supply current to 5µA, typically. The LTC1292 is capable of digitizing signals at a 60kHz rate and with the device’s excellent AC characteristics, it can be used for DSP applications. All these features are packaged in an 8-pin DIP and are made possible using LTCMOS™ switched-capacitor technology.

The serial I/O is designed to communicate without external hardware to most MPU serial ports and all MPU parallel I/O ports allowing data to be transmitted over three wires. Because of their accuracy, ease of use and small package size these devices are well suited for digitizing analog signals in remote applications where minimum number of interconnects and power consumption are important.

特点
  • Built-In Sample-and-Hold
  • Single Supply 5V Operation
  • 60kHz Maximum Throughput Rate (LTC1292)
  • Power Shutdown After Each Conversion (LTC1297)
  • Direct 3-Wire Interface to Most MPU Serial Ports and All MPU Parallel Ports
  • Analog Inputs Common Mode to Supply Rails
    • 应用
  • Resolution: 12 Bits
  • Fast Conversion Time: 12µs Max Over Temp
  • Low Supply Current: 6.0mA
  • Shutdown Supply Current: 5µA (LTC1297)
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1292BCN8 N-8 C $23.50 $18.55
    LTC1292BCN8#PBF N-8 C $23.50 $18.55
    LTC1292BIN8 N-8 I $26.10 $20.60
    LTC1292BIN8#PBF N-8 I $26.10 $20.60
    LTC1292CCN8 N-8 C $18.75 $14.80
    LTC1292CCN8#PBF N-8 C $18.75 $14.80
    LTC1292CIN8 N-8 I $20.75 $16.40
    LTC1292CIN8#PBF N-8 I $20.75 $16.40
    LTC1292DCN8 N-8 C $12.10 $9.40
    LTC1292DCN8#PBF N-8 C $12.10 $9.40
    LTC1292DIN8 N-8 I $13.60 $10.70
    LTC1292DIN8#PBF N-8 I $13.60 $10.70
