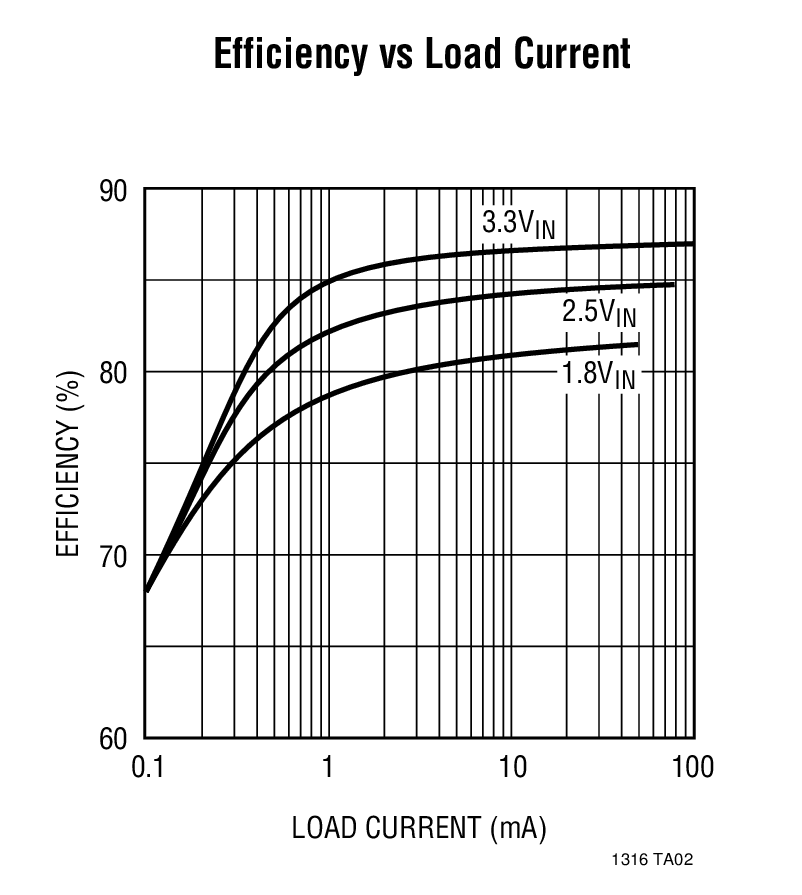

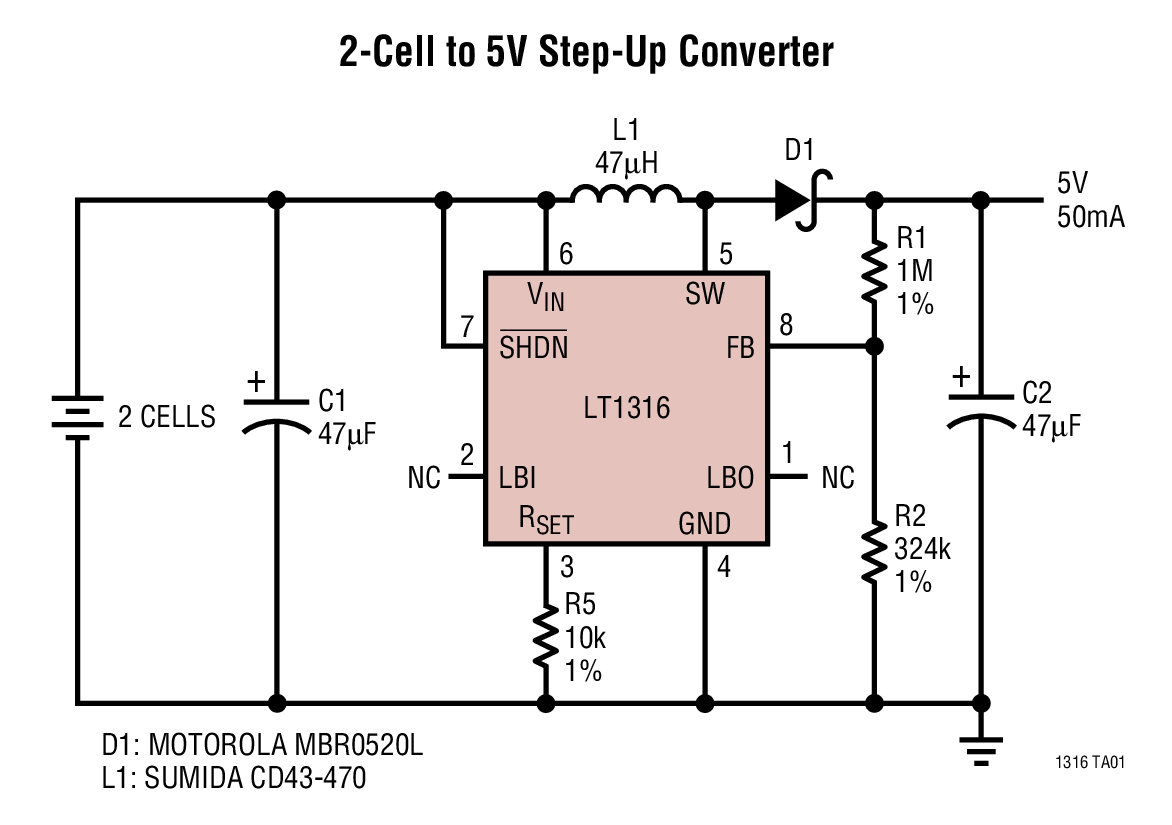

LT1316 - 典型应用图例：

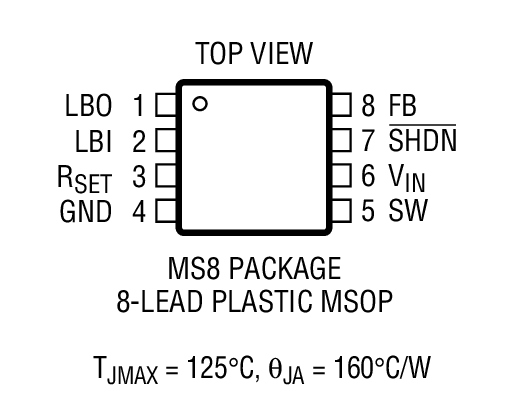

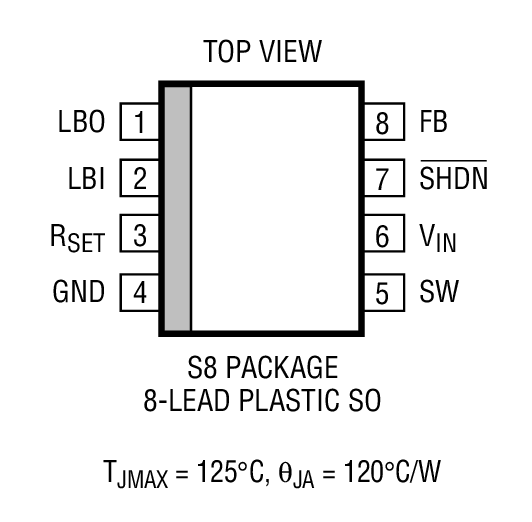

LT1316 - 封装图解：

LT1316 - LT1316是Micropower DC/DC Converter with Programmable Peak Current Limit

LT1316是Linear公司的一款LCD / CCD / OLED 偏置产品，LT1316是Micropower DC/DC Converter with Programmable Peak Current Limit，本站介绍了LT1316的封装应用图解、特点和优点、功能等，并给出了与LT1316相关的凌力尔特元器件型号供参考。

LT1316 - Micropower DC/DC Converter with Programmable Peak Current Limit

LT1316 - Micropower DC/DC Converter with Programmable Peak Current Limit - Linear Technology（凌力尔特）

功能描述

The LT®1316 is a micropower step-up DC/DC converter that operates from an input voltage as low as 1.5V. A programmable input current limiting function allows precise control of peak switch current. Peak switch current can be set to any value between 30mA and 500mA by adjusting one resistor. This is particularly useful for DC/DC converters operating from high source impedance inputs such as lithium coin cells or telephone lines.The fixed off-time, variable on-time regulation scheme results in quiescent current of only 33µA in active mode. Quiescent current decreases to 3µA in shutdown with the low-battery detector still active.The LT1316 is available in 8-lead MSOP and SO packages.Please Download Specification Notice for Recent Changes to Data Sheet.
sn1316fa.pdf

特点

Precise Control of Peak Switch Current

Quiescent Current: 33µA in Active Mode 3µA in Shutdown Mode

Low-Battery Detector Active in Shutdown

Low Switch VCESAT: 300mV at 500mA

8-Lead MSOP and SO Packages

Operates with VIN as Low as 1.5V

Logic Level Shutdown Pin

应用

Battery Backup

LCD Bias

Low Power ?48V to 5V/3.3V Converters
