LTC1262是12V, 30mA Flash Memory Programming Supply

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1262

LTC1262技术文档下载：

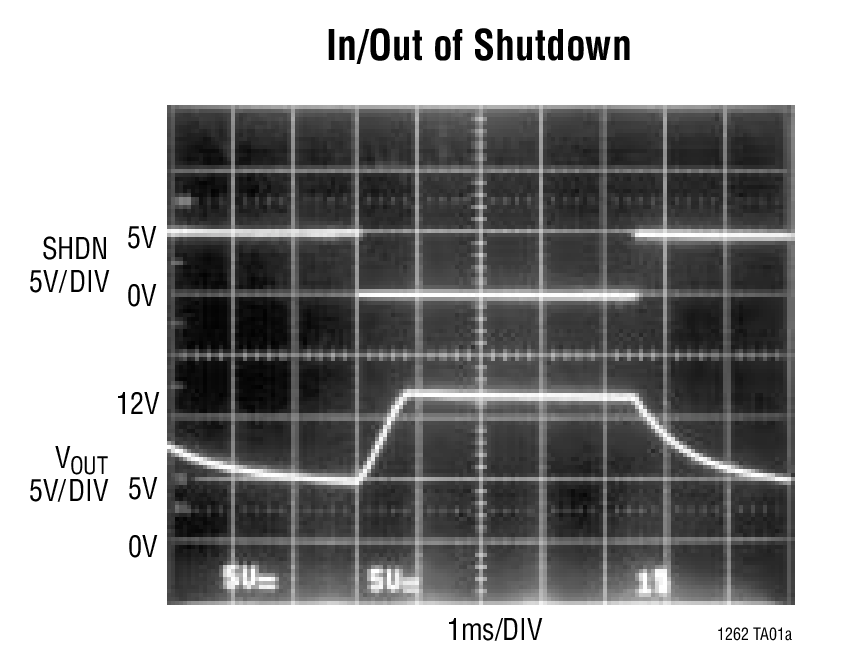

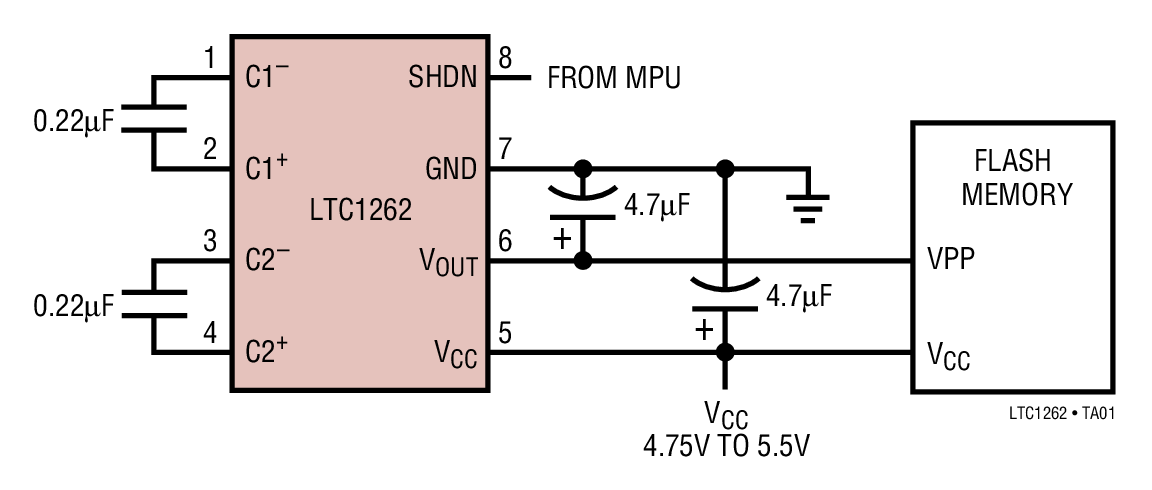

LTC1262 - 典型应用图例：

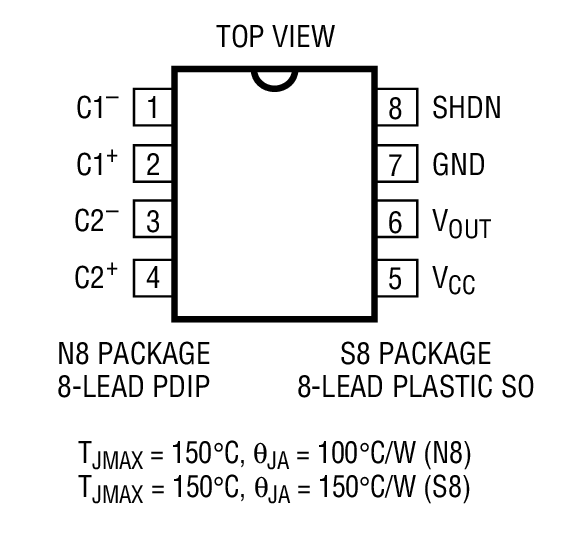

LTC1262 - 封装图解：

LTC1262 - LTC1262是12V, 30mA Flash Memory Programming Supply

LTC1262是Linear公司的一款快闪存储器编程产品，LTC1262是12V, 30mA Flash Memory Programming Supply，本站介绍了LTC1262的封装应用图解、特点和优点、功能等，并给出了与LTC1262相关的凌力尔特元器件型号供参考。

LTC1262 - 12V, 30mA Flash Memory Programming Supply

LTC1262 - 12V, 30mA Flash Memory Programming Supply - Linear Technology（凌力尔特）

功能描述

The LTC®1262 is a regulated 12V, 30mA output DC/DC converter. It is designed to provide the 12V ±5% output necessary to program byte-wide flash memories. The output will provide up to 30mA from input voltages as low as 4.75V without using any inductors. Only four external capacitors are required to complete an extremely small surface mountable circuit.The TTL compatible shutdown pin can be directly connected to a microprocessor and reduces the supply current to less than 0.5µA. The LTC1262 offers improved shutdown current performance and requires fewer external components than competing solutions.The LTC1262 is available in an 8-pin PDIP or SO-8 package.

特点

Regulated 12V ±5% Output Voltage

No Inductors

Supply Voltage Range: 4.75V to 5.5V

Guaranteed 30mA Output

Low Power: Icc = 500µA

Icc in Shutdown: 0.5µA

8-Pin PDIP or SO-8 Package

应用

12V Flash Memory Programming Supplies

Compact 12V Op Amp Supplies

Battery-Powered Systems

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1262CN8	N-8	C	$3.00	$2.40
LTC1262CN8#PBF	N-8	C	$3.00	$2.40
LTC1262CS8	SO-8	C	$2.55	$2.15
LTC1262CS8#PBF	SO-8	C	$2.55	$2.15
LTC1262CS8#TR	SO-8	C		$2.21
LTC1262CS8#TRPBF	SO-8	C		$2.21
LTC1262IS8	SO-8	I	$3.20	$2.70
LTC1262IS8#PBF	SO-8	I	$3.20	$2.70
LTC1262IS8#TR	SO-8	I		$2.76
LTC1262IS8#TRPBF	SO-8	I		$2.76
