当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1263

LTC1263技术文档下载：

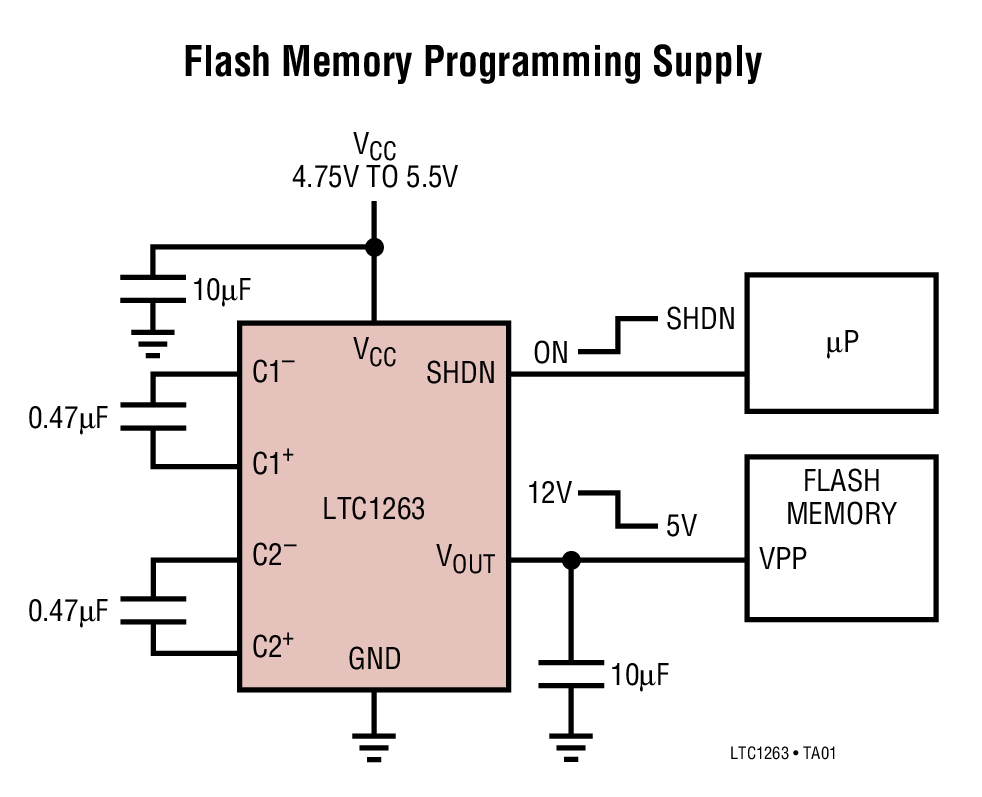

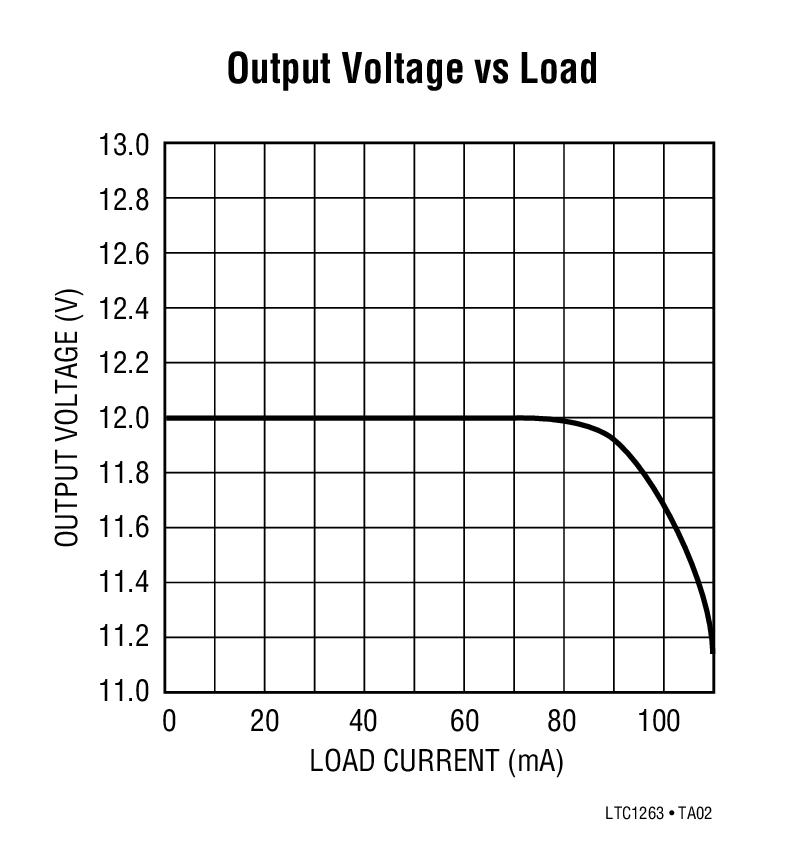

LTC1263 - 典型应用图例：

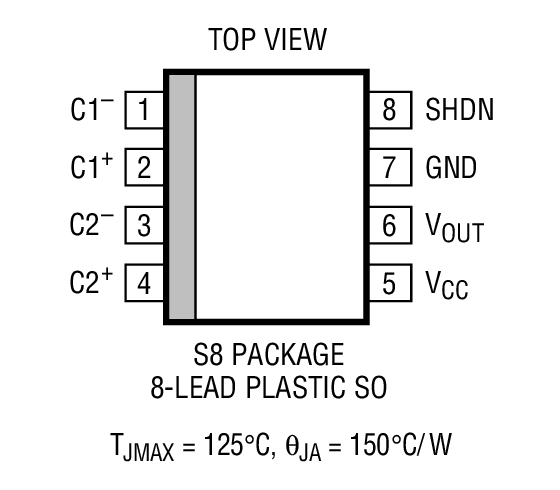

LTC1263 - 封装图解：

LTC1263 - LTC1263是12V, 60mA Flash Memory Programming Supply

LTC1263是Linear公司的一款快闪存储器编程产品，LTC1263是12V, 60mA Flash Memory Programming Supply，本站介绍了LTC1263的封装应用图解、特点和优点、功能等，并给出了与LTC1263相关的凌力尔特元器件型号供参考。

LTC1263 - 12V, 60mA Flash Memory Programming Supply

LTC1263 - 12V, 60mA Flash Memory Programming Supply - Linear Technology（凌力尔特）

功能描述

The LTC1263 is a regulated 12V, 60mA output DC/DC converter. It provides the 12V ±5% output necessary to program double byte-wide flash memories. The output provides 60mA from input voltages as low as 4.75V without using any inductors. Only four external capacitors are required to complete an extremely small, surface mountable circuit. The output can be momentarily shorted to ground without damaging the part. The active high TTL compatible Shutdown pin can be directly connected to a microprocessor. In the shutdown mode, the supply current typically drops to 0.5µA. The LTC1263 is available in an 8-pin SO package.

特点

Guaranteed 60mA Output

Regulated 12V ±5% Output Voltage

No Inductors

Supply Voltage Range: 4.75V to 5.5V

Icc 0.5µA Typ in Shutdown

Low Power: Icc = 300µA

8-Pin SO Package

Same Pinout as LTC1262 and MAX662

应用

12V Flash Memory Programming Supplies

Compact 12V Op Amp Supplies

Battery-Powered Systems

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1263CS8	SO-8	C	$3.90	$3.30
LTC1263CS8#PBF	SO-8	C	$3.90	$3.30
LTC1263CS8#TRPBF	SO-8	C		$3.36
LTC1263IS8	SO-8	I	$4.45	$3.75
LTC1263IS8#PBF	SO-8	I	$4.45	$3.75
LTC1263IS8#TRPBF	SO-8	I		$3.81
