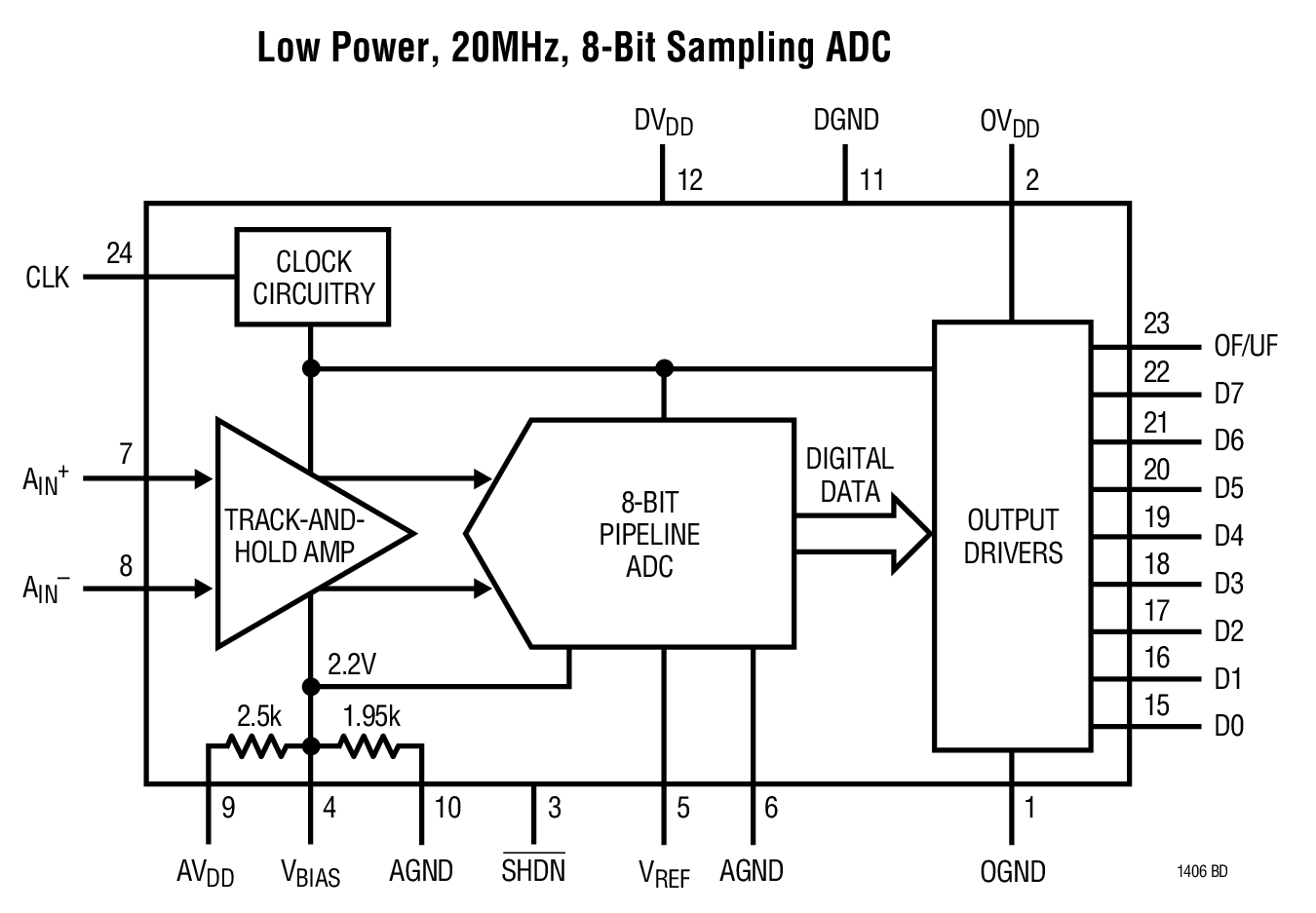

LTC1406 - 典型应用图例：
LTC1406典型应用图例一
LTC1406典型应用图例二

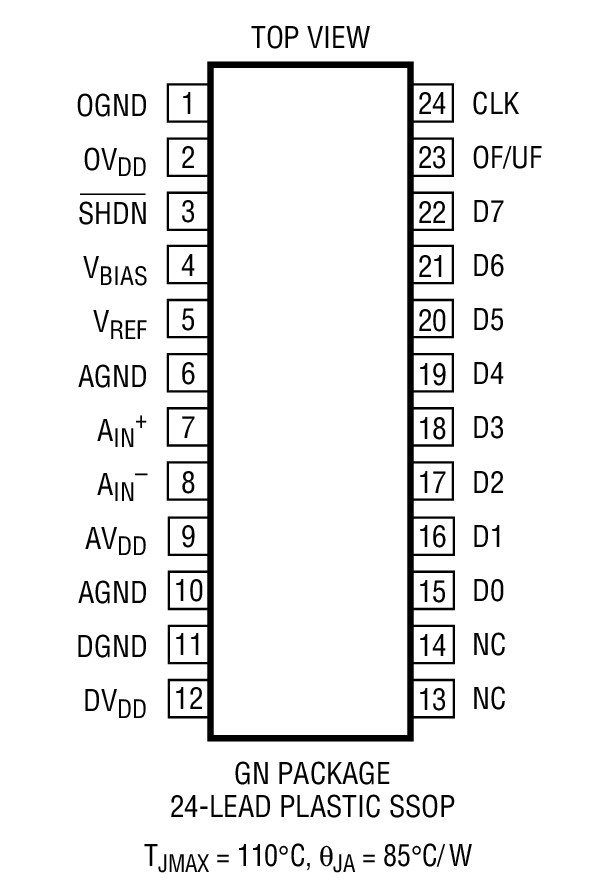

LTC1406 - 封装图解：
LTC1406封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1406介绍

LTC1406 - LTC1406是Low Power, 8-Bit, 20Msps, Sampling A/D Converter

LTC1406是LINEAR凌力尔特公司的一款高速 ADC产品，LTC1406是LTC1406是Low Power, 8-Bit, 20Msps, Sampling A/D Converter，本站介绍了LTC1406的封装应用图解、特点和优点、功能等，并给出了与LTC1406相关的LINEAR元器件型号供参考。

LTC1406 - LTC1406是Low Power, 8-Bit, 20Msps, Sampling A/D Converter - 高速 ADC - 数据转换 - 凌力尔特

LTC1406 - Low Power, 8-Bit, 20Msps, Sampling A/D Converter

LTC1406 - Low Power, 8-Bit, 20Msps, Sampling A/D Converter - Linear Technology（凌力尔特）

功能描述
The LTC1406 is a 20Msps, 8-bit, sampling A/D converter which draws only 150mW from a single 5V supply. This easy-to-use device includes a high dynamic range sample-and-hold with a 250MHz bandwidth. The LTC1406’s full-scale input range is ±1V. The inputs can be driven differentially or one input can be tied to a fixed voltage and the other input driven with a ±1V bipolar input. Maximum DC specifications include ±1LSB DNL and INL over temperature. Outstanding AC performance includes 48.5dB S/(N + D) and 62dB THD with a 1MHz input; 47.5dB S/(N + D) and 59dB THD at the Nyquist input frequency of 10MHz. The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 250MHz bandwidth. The 60dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source. The ADC has an 8-bit parallel output port with separate power supply and ground allowing easy interface to 3V digital systems. The pipelined architecture has five clock cycles of data latency.

特点
  • Low Power, 8-Bit, 20Msps ADC
  • 250MHz Internal Sample-and-Hold
  • 7 Effective Bits at 70MHz Input Frequency
  • ±1LSB DNL and INL Max
  • Single 5V Supply and 150mW Dissipation
  • Power Down to 1µA
  • True Differential Inputs Reject Common Mode Noise
  • Accepts Single-Ended or Differential Input Signals
  • ±1V Differential or 2V Single-Ended Input Span
  • Analog Inputs Common Mode to VDD and GND
  • 24-Pin Narrow SSOP Package
    • 应用
  • Telecommunications
  • Wireless Communications
  • Digital Cellular Telephones
  • CCDs and Image Scanners
  • Video Digitizing and Digital Television
  • Digital Color Copiers
  • High Speed Undersampling
  • Personal Computer Video
  • High Speed Data Acquisition
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1406CGN SSOP-24 C $3.75 $3.20
    LTC1406CGN#PBF SSOP-24 C $3.75 $3.20
    LTC1406CGN#TR SSOP-24 C $3.30
    LTC1406CGN#TRPBF SSOP-24 C $3.30
    LTC1406IGN SSOP-24 I $4.05 $3.40
    LTC1406IGN#PBF SSOP-24 I $4.05 $3.40
    LTC1406IGN#TR SSOP-24 I $3.50
    LTC1406IGN#TRPBF SSOP-24 I $3.50
