LT1394是7ns, Low Power, Single Supply, Ground-Sensing Comparator

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LT1394

LT1394技术文档下载：

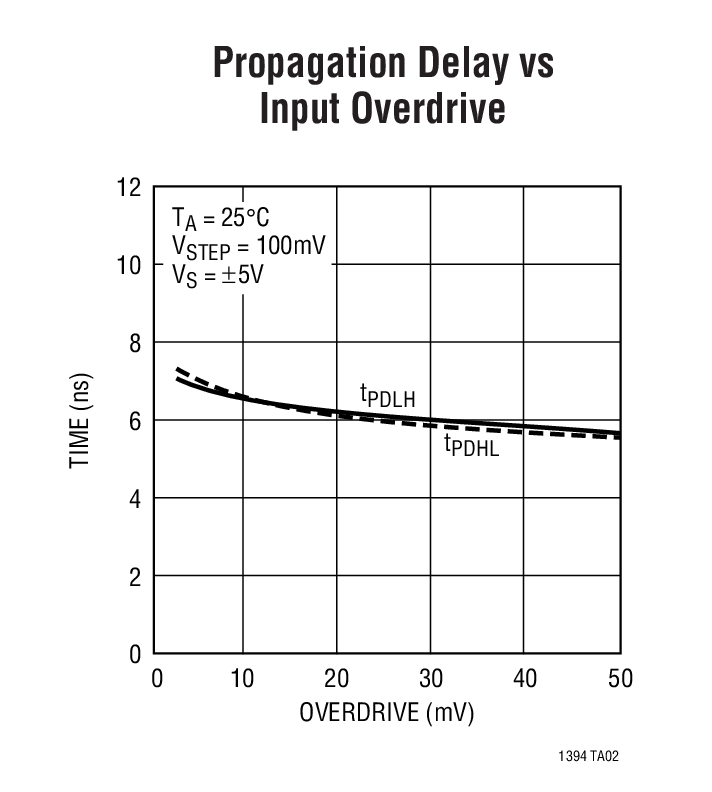

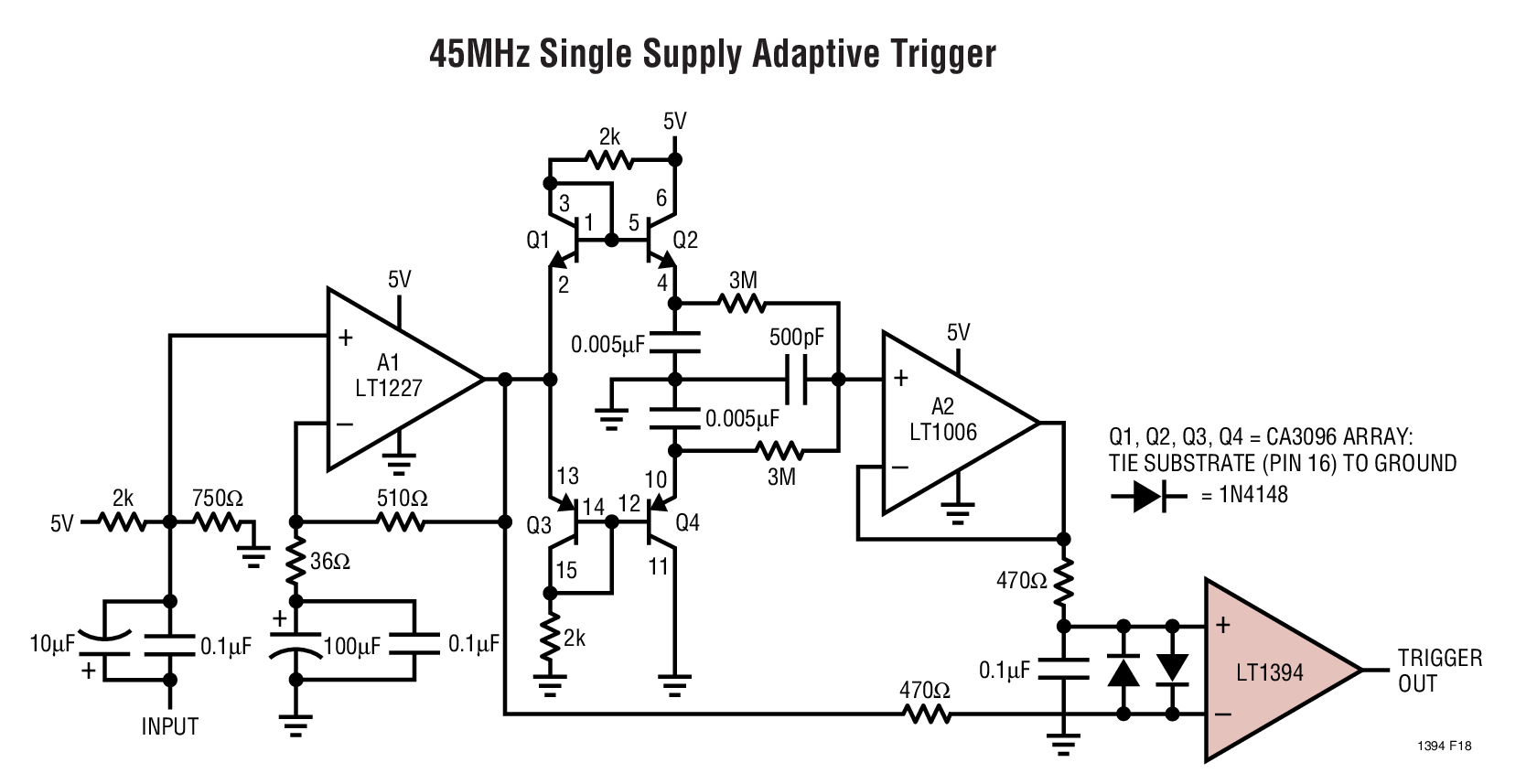

LT1394 - 典型应用图例：

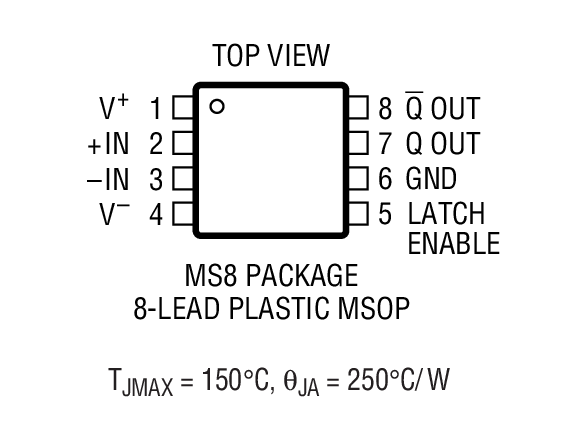

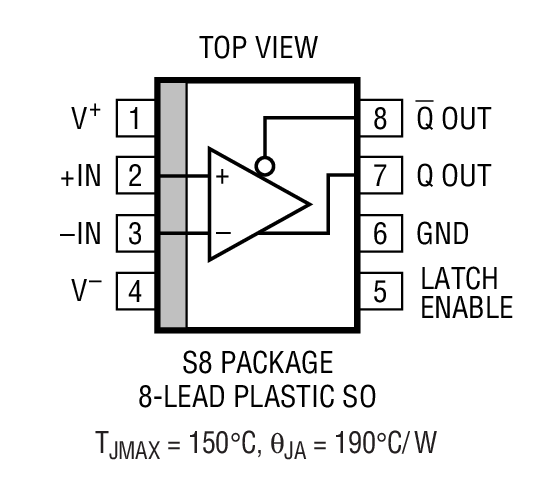

LT1394 - 封装图解：

LT1394 - LT1394是7ns, Low Power, Single Supply, Ground-Sensing Comparator

LT1394是Linear公司的一款高速比较器产品，LT1394是7ns, Low Power, Single Supply, Ground-Sensing Comparator，本站介绍了LT1394的封装应用图解、特点和优点、功能等，并给出了与LT1394相关的凌力尔特元器件型号供参考。

LT1394 - 7ns, Low Power, Single Supply, Ground-Sensing Comparator

LT1394 - 7ns, Low Power, Single Supply, Ground-Sensing Comparator - Linear Technology（凌力尔特）

功能描述

The LT1394 is an UltraFast (7ns) comparator with complementary outputs and latch. The input common mode range extends from 1.5V below the positive supply down to the negative supply rail. Like the LT1016, LT1116 and LT1671, this comparator has complementary outputs designed to interface directly to TTL or CMOS logic. The LT1394 may operate from either a single 5V supply or dual ±5V supplies. Low offset voltage specifications and high gain allow the LT1394 to be used in precision applications. The LT1394 is designed for improved speed and stability for a wide range of operating conditions. The output stage provides active drive in both directions for maximum speed into TTL, CMOS or passive loads with minimal cross-conduction current. Unlike other fast comparators, the LT1394 remains stable even for slow transitions through the active region, which eliminates the need to specify a minimum input slew rate. The LT1394 has an internal, TTL/CMOS compatible latch for retaining data at the outputs. The latch holds data as long as the LATCH pin is held high. Device parameters such as gain, offset and negative power supply current are not significantly affected by variations in negative supply voltage.

特点

UltraFastT™: 7ns

Low Power: 6mA

Low Offset Voltage: 0.8mV

Operates Off Single 5V or Dual ±5V Supplies

Input Common Mode Extends to Negative Supply

No Minimum Input Slew Rate Requirement

Complementary TTL Outputs

Inputs Can Exceed Supplies without Phase Reversal

Pin Compatible with LT1016, LT1116 and LT1671

Output Latch Capability

Available in 8-Lead MSOP and SO Packages

应用

High Speed A/D Converters

Zero-Crossing Detectors

Current Sense for Switching Regulators

Extended Range V/F Coverters

Fast Pulse Height/Width Discriminators

High Speed Triggers

Line Receivers

High Speed Sampling Circuits

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1394CMS8	MS-8	C	$3.15	$2.65
LT1394CMS8#PBF	MS-8	C	$3.15	$2.65
LT1394CMS8#TR	MS-8	C		$2.71
LT1394CMS8#TRPBF	MS-8	C		$2.71
LT1394CS8	SO-8	C	$2.90	$2.55
LT1394CS8#PBF	SO-8	C	$2.90	$2.55
LT1394CS8#TR	SO-8	C		$2.61
LT1394CS8#TRPBF	SO-8	C		$2.61
LT1394IS8	SO-8	I	$3.25	$2.80
LT1394IS8#PBF	SO-8	I	$3.25	$2.80
LT1394IS8#TR	SO-8	I		$2.86
LT1394IS8#TRPBF	SO-8	I		$2.86
