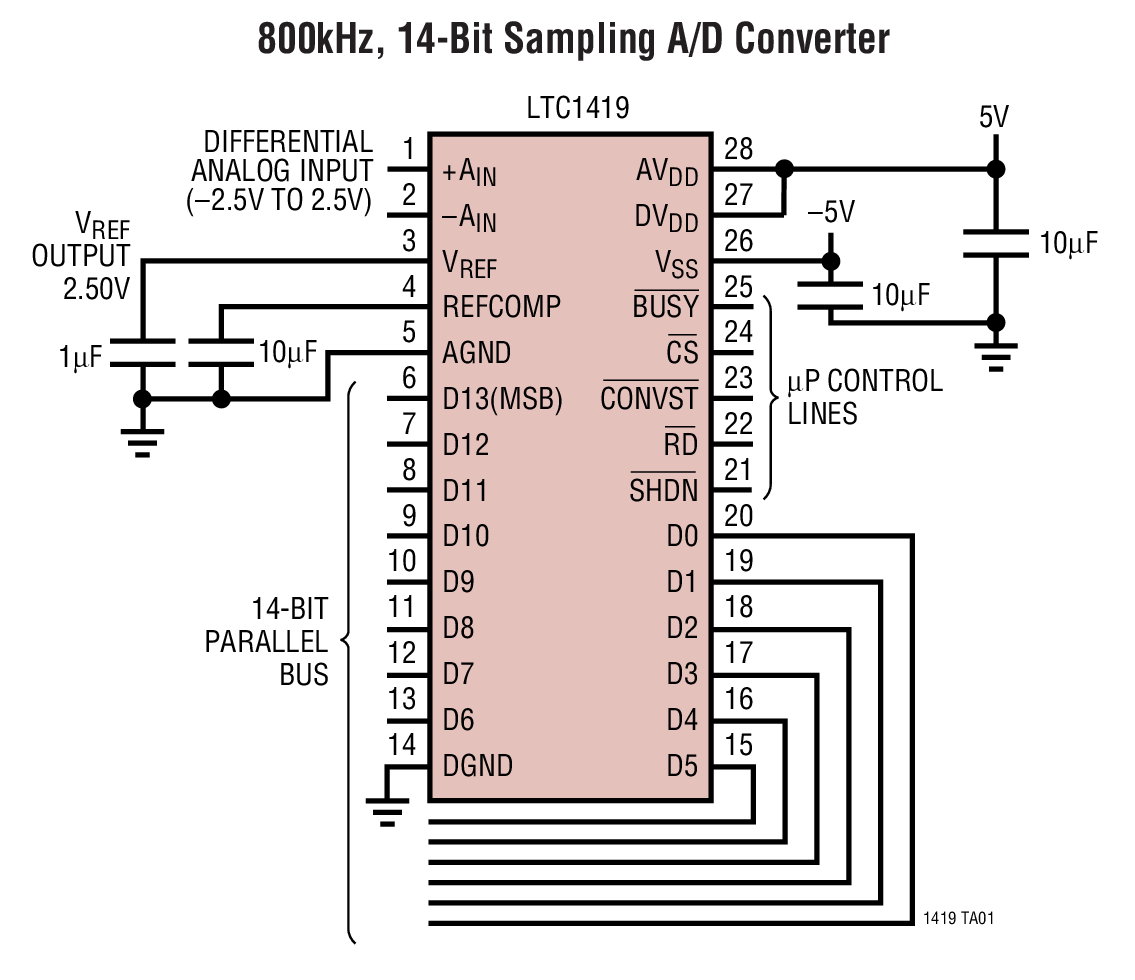

LTC1419 - 典型应用图例：
LTC1419典型应用图例一

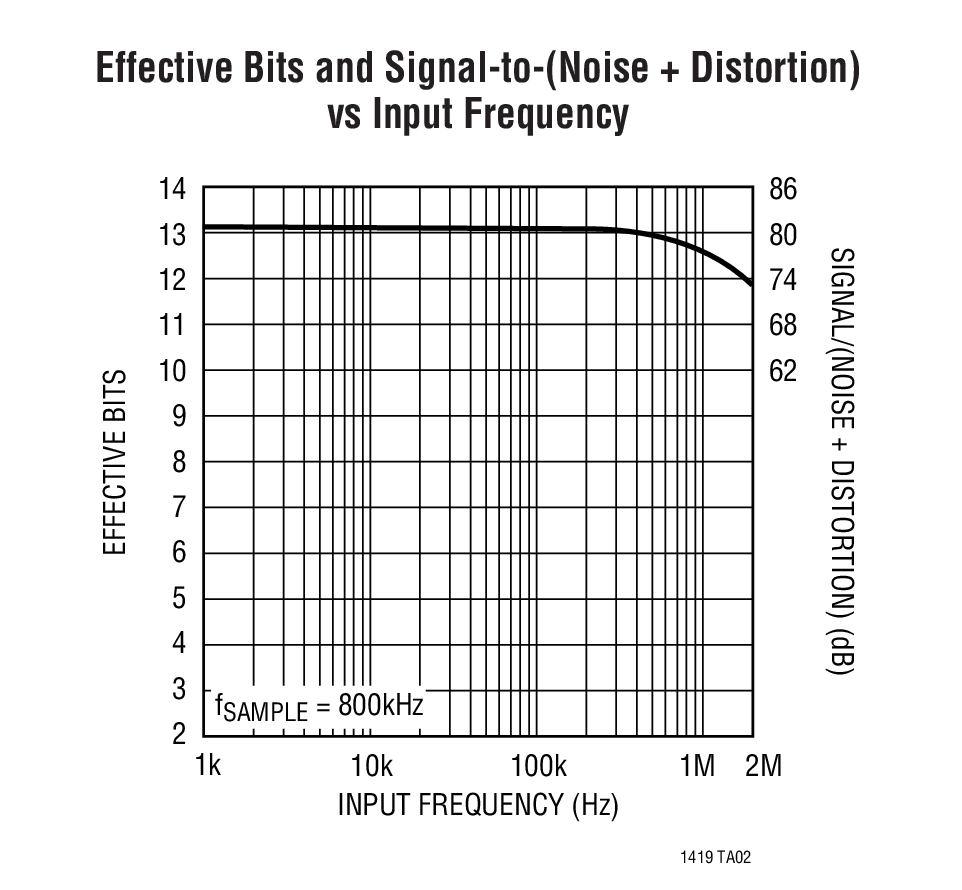

LTC1419典型应用图例二

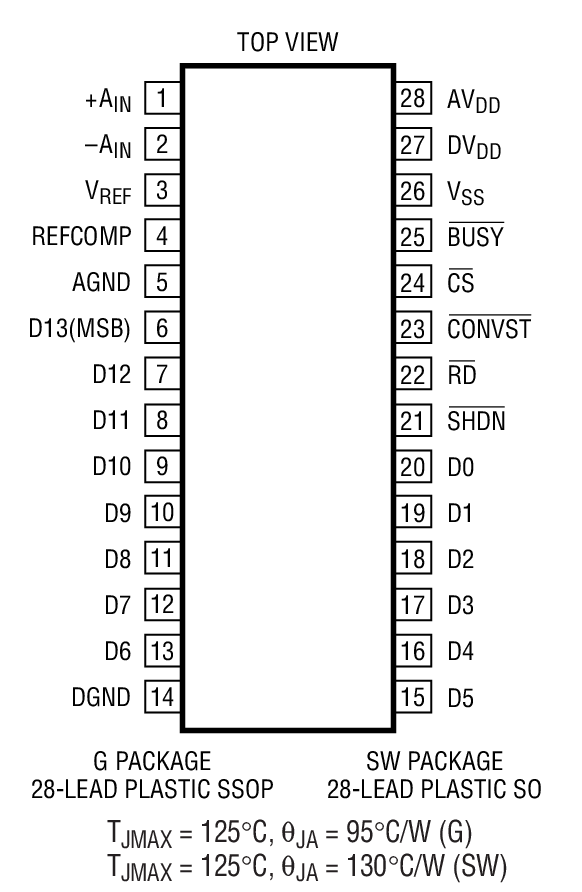

LTC1419 - 封装图解：
LTC1419封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1419介绍

LTC1419 - LTC1419是14-Bit, 800ksps Sampling A/D Converter with Shutdown

LTC1419是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1419是LTC1419是14-Bit, 800ksps Sampling A/D Converter with Shutdown，本站介绍了LTC1419的封装应用图解、特点和优点、功能等，并给出了与LTC1419相关的LINEAR元器件型号供参考。

LTC1419 - LTC1419是14-Bit, 800ksps Sampling A/D Converter with Shutdown - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1419 - 14-Bit, 800ksps Sampling A/D Converter with Shutdown

LTC1419 - 14-Bit, 800ksps Sampling A/D Converter with Shutdown - Linear Technology（凌力尔特）

功能描述

The LTC1419 is a 1μs, 800ksps, 14-bit sampling A/D converter that draws only 150mW from ±5V supplies. This easy-to-use device includes a high dynamic range sample-and-hold and a precision reference. Two digitally selectable power shutdown modes provide flexibility for low power systems.

The LTC1419 has a full-scale input range of ±2.5V. Outstanding AC performance includes 81.5dB S/(N + D) and 93dB THD with a 100kHz input; 80dB S/(N + D) and 86dB THD at the Nyquist input frequency of 400kHz.

The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 20MHz bandwidth. The 60dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.

The ADC has a μP compatible, 14-bit parallel output port. There is no pipeline delay in the conversion results. A separate convert start input and data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.

特点
  • Sample Rate: 800ksps
  • Power Dissipation: 150mW
  • 81.5dB S/(N + D) and 93dB THD
  • No Missing Codes
  • No Pipeline Delay
  • Nap and Sleep Shutdown Modes
  • Operates with 2.5V Internal 15ppm/°C Reference or External Reference
  • True Differential Inputs Reject Common Mode Noise
  • 20MHz Full-Power Bandwidth Sampling
  • Bipolar Input Range: ±2.5V
  • 28-Pin SSOP and SO Packages
    • 应用
  • Telecommunications
  • Digital Signal Processing
  • Multiplexed Data Acquisition Systems
  • High Speed Data Acquisition
  • Spectrum Analysis
  • Imaging Systems
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1419ACG SSOP-28 C $29.00 $25.60
    LTC1419ACG#PBF SSOP-28 C $29.00 $25.60
    LTC1419ACG#TR SSOP-28 C $25.70
    LTC1419ACG#TRPBF SSOP-28 C $25.70
    LTC1419ACSW SW-28 C $28.55 $25.20
    LTC1419ACSW#PBF SW-28 C $28.55 $25.20
    LTC1419ACSW#TR SW-28 C $25.30
    LTC1419ACSW#TRPBF SW-28 C $25.30
    LTC1419AIG SSOP-28 I $33.35 $29.40
    LTC1419AIG#PBF SSOP-28 I $33.35 $29.40
    LTC1419AIG#TR SSOP-28 I $29.50
    LTC1419AIG#TRPBF SSOP-28 I $29.50
    LTC1419AISW SW-28 I $32.80 $28.95
    LTC1419AISW#PBF SW-28 I $32.80 $28.95
    LTC1419AISW#TR SW-28 I $29.05
    LTC1419AISW#TRPBF SW-28 I $29.05
    LTC1419CG SSOP-28 C $18.60 $15.35
    LTC1419CG#PBF SSOP-28 C $18.60 $15.35
    LTC1419CG#TR SSOP-28 C $15.45
    LTC1419CG#TRPBF SSOP-28 C $15.45
    LTC1419CSW SW-28 C $18.40 $15.15
    LTC1419CSW#PBF SW-28 C $18.40 $15.15
    LTC1419CSW#TR SW-28 C $15.25
    LTC1419CSW#TRPBF SW-28 C $15.25
    LTC1419IG SSOP-28 I $20.70 $17.05
    LTC1419IG#PBF SSOP-28 I $20.70 $17.05
    LTC1419IG#TR SSOP-28 I $17.15
    LTC1419IG#TRPBF SSOP-28 I $17.15
    LTC1419ISW SW-28 I $20.40 $16.80
    LTC1419ISW#PBF SW-28 I $20.40 $16.80
    LTC1419ISW#TR SW-28 I $16.90
    LTC1419ISW#TRPBF SW-28 I $16.90
