当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LT1711
LT1711技术文档下载：
LT1711技术文档产品手册下载
LT1711 - 典型应用图例：

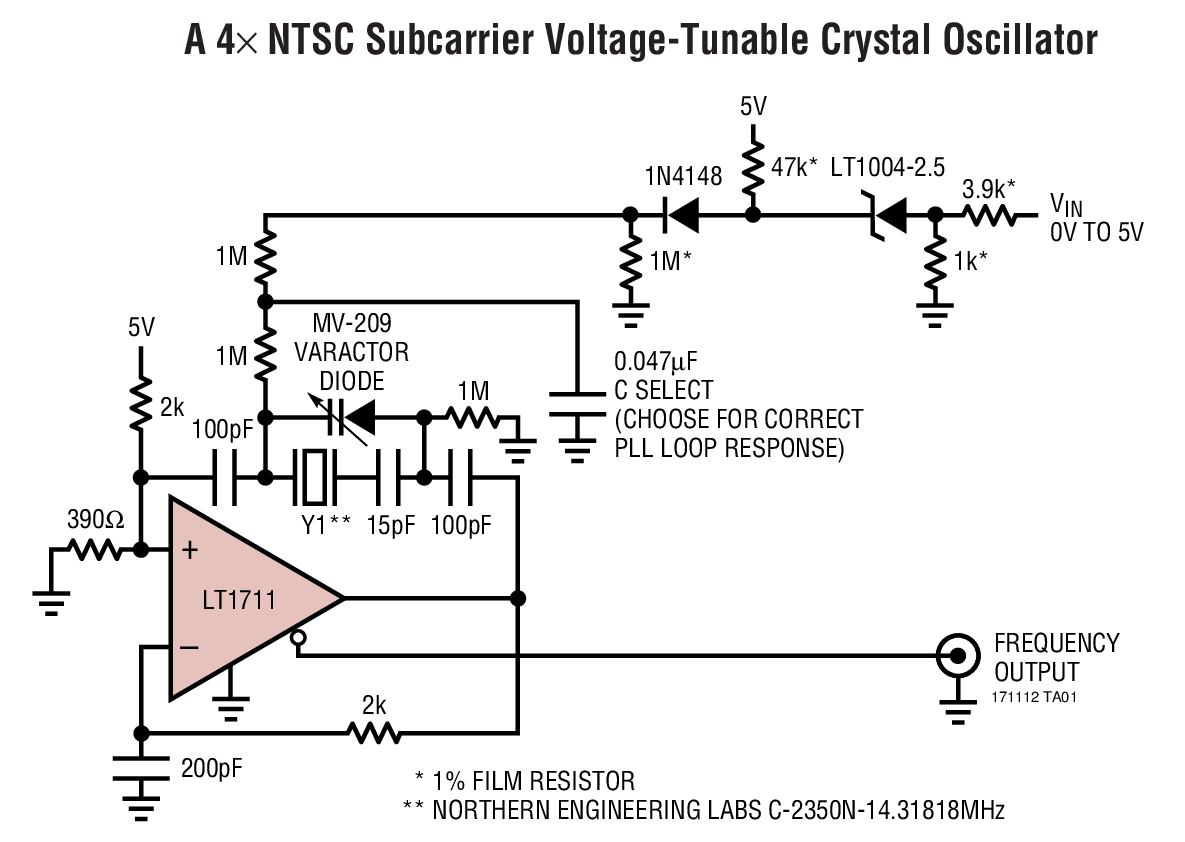

LT1711典型应用图例一

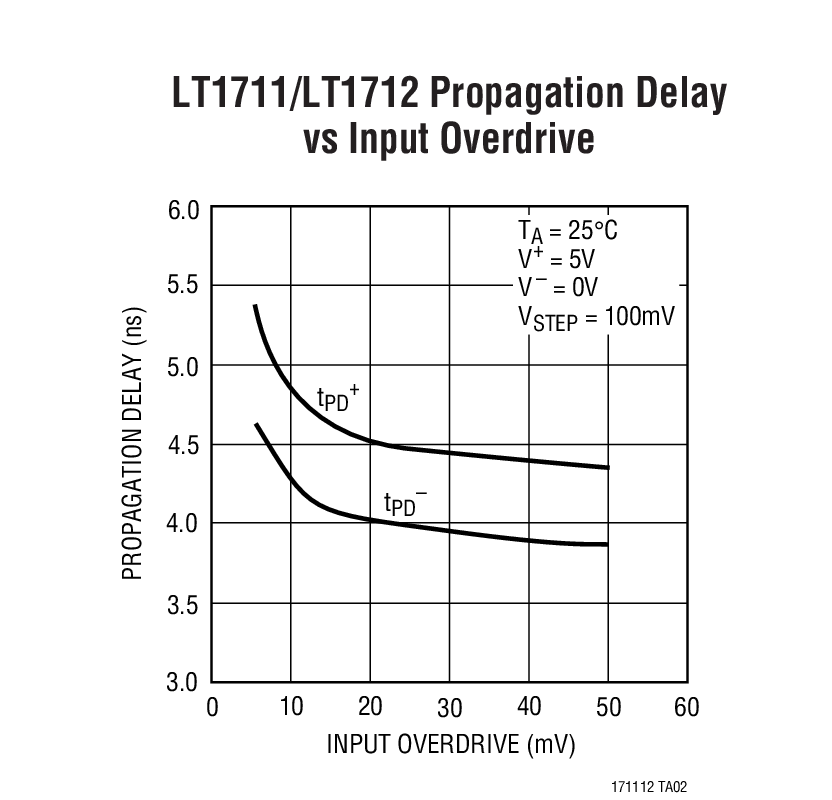

LT1711典型应用图例二
LT1711 - 封装图解：

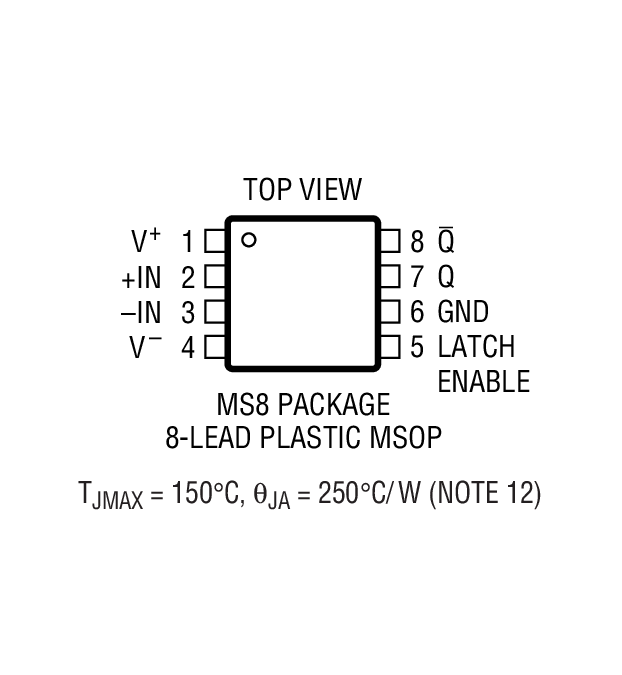

LT1711封装图解一

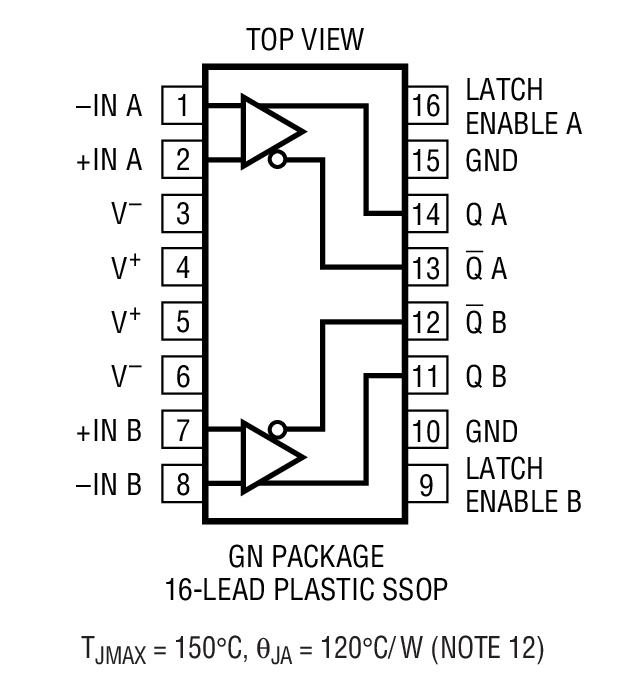

LT1711封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1711介绍

LT1711 - LT1711是Single/Dual 4.5ns, 3V/5V/±5V, Rail-to-Rail Comparators

LT1711是LINEAR凌力尔特公司的一款高速比较器产品，LT1711是LT1711是Single/Dual 4.5ns, 3V/5V/±5V, Rail-to-Rail Comparators，本站介绍了LT1711的封装应用图解、特点和优点、功能等，并给出了与LT1711相关的LINEAR元器件型号供参考。

LT1711 - LT1711是Single/Dual 4.5ns, 3V/5V/±5V, Rail-to-Rail Comparators - 高速比较器 - 信号调理 - 凌力尔特

LT1711 - Single/Dual 4.5ns, 3V/5V/±5V, Rail-to-Rail Comparators

LT1711 - Single/Dual 4.5ns, 3V/5V/±5V, Rail-to-Rail Comparators - Linear Technology（凌力尔特）

功能描述
The LT1711/LT1712 are UltraFastTM 4.5ns comparator featuring rail-to-rail inputs, rail-to-rail complementary outputs and an output latch. Optimized for 3V and 5V power supplies, it operates over a single supply voltage range from 2.4V to 12V or from ±2.4V to ±6V dual supplies.

The LT1711/LT1712 is designed for ease of use in a variety of systems. In addition to the wide supply voltage flexibility, the rail-to-rail input common mode range extends 100mV beyond both supply rails, and the outputs are protected against phase reversal for inputs extending further beyond the rails. Also, the rail-to-rail inputs may be taken to opposite rails with no significant increase in input current. The rail-to-rail matched complementary outputs interface directly to TTL or CMOS logic and can sink 10mA to within 0.5V of GND or source 10mA to within 0.7V of V+.

The LT1711/LT1712 has an internal TTL/CMOS compatible latch for retaining data at the outputs. The latch holds data as long as the latch pin is held high. Latch pin hysteresis provides protection against slow moving or noisy latch signals. The LT1711 is available in the 8-pin MSOP package. The LT1712 is available in the 16-pin narrow SSOP package.

特点
  • Ultrafast: 4.5ns at 20mV Overdrive5.5ns at 5mV Overdrive
  • Rail-to-Rail Inputs
  • Rail-to-Rail Complementary Outputs (TTL/CMOS Compatible)
  • Specified at 2.7V, 5V and ±5V Supplies
  • Output Latch
  • Inputs Can Exceed Supplies Without Phase Reversal
  • LT1711: 8-Lead MSOP Package
  • LT1712: 16-Lead Narrow SSOP Package
    • 应用
  • High Speed Automatic Test Equipment
  • Current Sense for Switching Regulators
  • Crystal Oscillator Circuits
  • High Speed Sampling Circuits
  • High Speed A/D Converters
  • Pulse Width Modulators
  • Window Comparators
  • Extended Range V/F Converters
  • Fast Pulse Height/Width Discriminators
  • Line Receivers
  • High Speed Triggers
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1711CMS8 MS-8 C $2.70 $2.15
    LT1711CMS8#PBF MS-8 C $2.70 $2.15
    LT1711CMS8#TR MS-8 C $2.21
    LT1711CMS8#TRPBF MS-8 C $2.21
    LT1711IMS8 MS-8 I $2.90 $2.35
    LT1711IMS8#PBF MS-8 I $2.90 $2.35
    LT1711IMS8#TR MS-8 I $2.41
    LT1711IMS8#TRPBF MS-8 I $2.41
