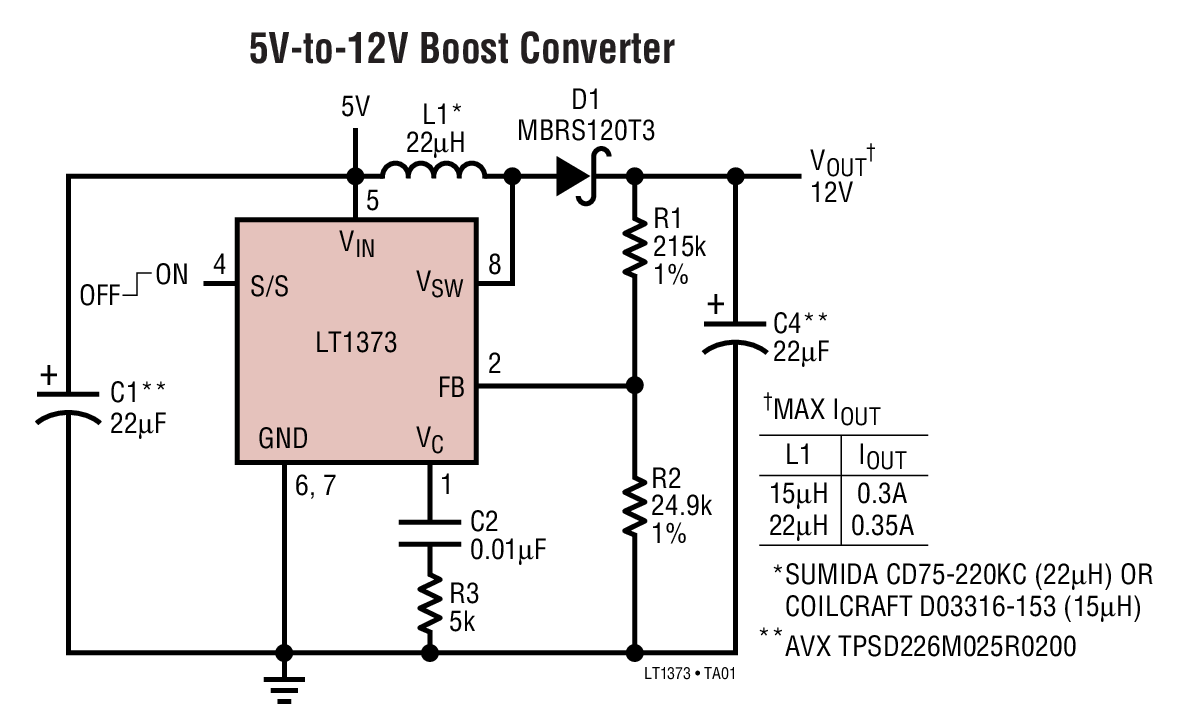

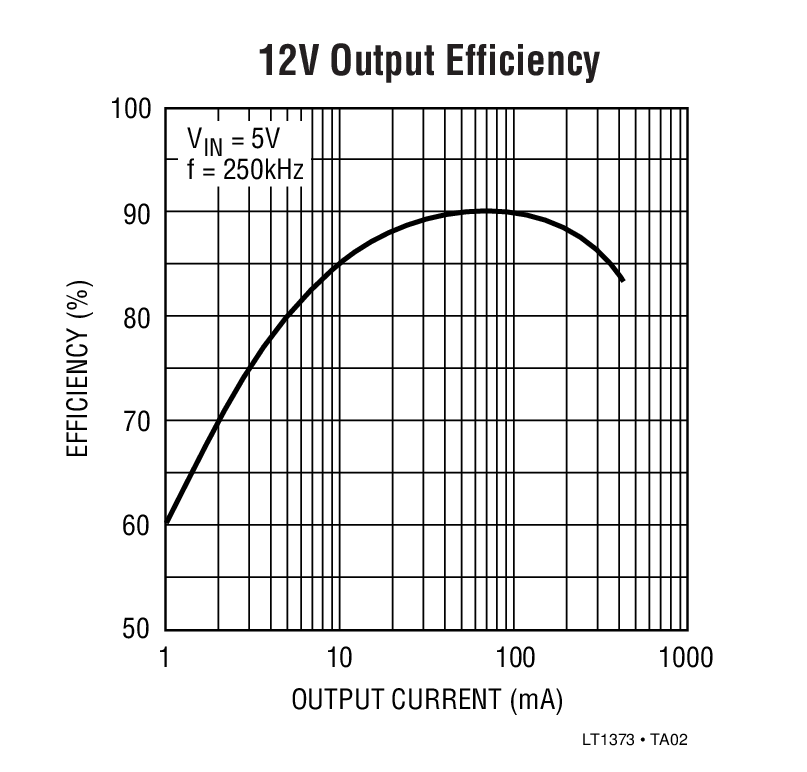

LT1373 - 典型应用图例:
LT1373典型应用图例一
LT1373典型应用图例二

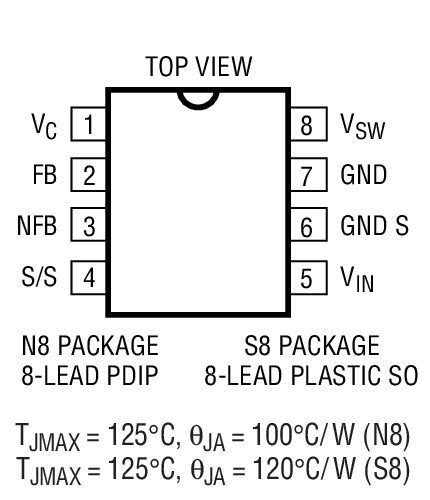

LT1373 - 封装图解:
LT1373封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LT1373介绍
LT1373 - LT1373是250kHz Low Supply Current High Efficiency 1.5A Switching Regulator

LT1373是Linear公司的一款内部电源开关产品,LT1373是250kHz Low Supply Current High Efficiency 1.5A Switching Regulator,本站介绍了LT1373的封装应用图解、特点和优点、功能等,并给出了与LT1373相关的凌力尔特元器件型号供参考。

LT1373 - 250kHz Low Supply Current High Efficiency 1.5A Switching Regulator

LT1373 - 250kHz Low Supply Current High Efficiency 1.5A Switching Regulator - Linear Technology(凌力尔特)

功能描述
The LT1373 is a low supply current high frequency current mode switching regulator. It can be operated in all standard switching configurations including boost, buck, flyback, forward, inverting and “Cuk.” A 1.5A high efficiency switch is included on the die, along with all oscillator, control and protection circuitry. All functions of the LT1373 are integrated into 8-pin SO/PDIP packages. Compared to the 500kHz LT1372, which draws 4mA of quiescent current, the LT1373 switches at 250kHz, typically consumes only 1mA and has higher efficiency. High frequency switching allows for small inductors to be used. All surface mount components consume less than 0.6 square inch of board space. New design techniques increase flexibility and maintain ease of use. Switching is easily synchronized to an external logic level source. A logic low on the shutdown pin reduces supply current to 12µA. Unique error amplifier circuitry can regulate positive or negative output voltage while maintaining simple frequency compensation techniques. Nonlinear error amplifier transconductance reduces output overshoot on start-up or overload recovery. Oscillator frequency shifting protects external components during overload conditions.

特点
  • 1mA IQ at 250kHz
  • Uses Small Inductors: 15µH
  • All Surface Mount Components
  • Only 0.6 Square Inch of Board Space
  • Low Minimum Supply Voltage: 2.7V
  • Constant Frequency Current Mode
  • Current Limited Power Switch: 1.5A
  • Regulates Positive or Negative Outputs
  • Shutdown Supply Current: 12µA Typ
  • Easy External Synchronization
  • 8-Pin SO or PDIP Packages
  • 应用
  • Boost Regulators
  • CCFL Backlight Driver
  • Laptop Computer Supplies
  • Multiple Output Flyback Supplies
  • Inverting Supplies
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1373CN8 N-8 C $4.30 $3.50
    LT1373CN8#PBF N-8 C $4.30 $3.50
    LT1373CS8 SO-8 C $4.50 $3.65
    LT1373CS8#PBF SO-8 C $4.50 $3.65
    LT1373CS8#TR SO-8 C $3.71
    LT1373CS8#TRPBF SO-8 C $3.71
    LT1373HVCN8 N-8 C $4.75 $3.80
    LT1373HVCN8#PBF N-8 C $4.75 $3.80
    LT1373HVCS8 SO-8 C $4.90 $3.95
    LT1373HVCS8#PBF SO-8 C $4.90 $3.95
    LT1373HVCS8#TR SO-8 C $4.01
    LT1373HVCS8#TRPBF SO-8 C $4.01
    LT1373HVIN8 N-8 I $5.65 $4.55
    LT1373HVIN8#PBF N-8 I $5.65 $4.55
    LT1373HVIS8 SO-8 I $5.80 $4.65
    LT1373HVIS8#PBF SO-8 I $5.80 $4.65
    LT1373HVIS8#TR SO-8 I $4.71
    LT1373HVIS8#TRPBF SO-8 I $4.71
    LT1373IN8 N-8 I $5.25 $4.20
    LT1373IN8#PBF N-8 I $5.25 $4.20
    LT1373IS8 SO-8 I $5.40 $4.35
    LT1373IS8#PBF SO-8 I $5.40 $4.35
    LT1373IS8#TR SO-8 I $4.41
    LT1373IS8#TRPBF SO-8 I $4.41
