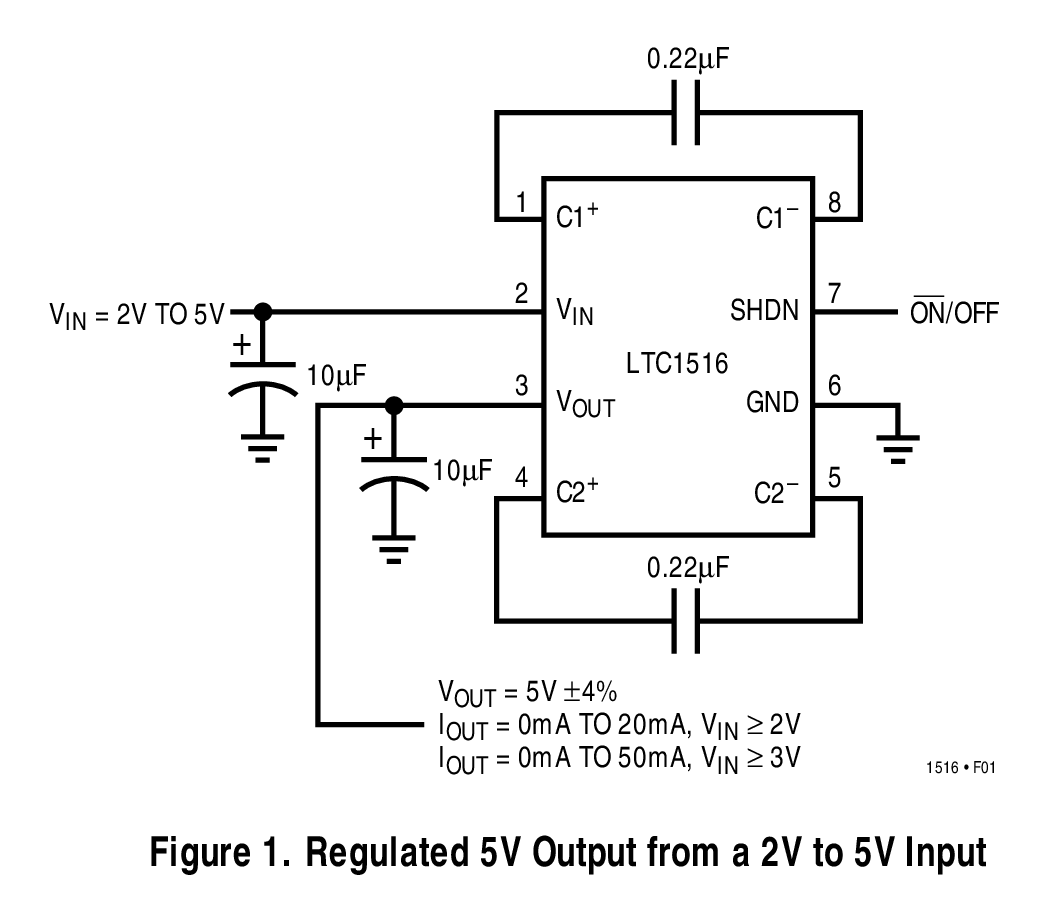

LTC1516 - 典型应用图例：

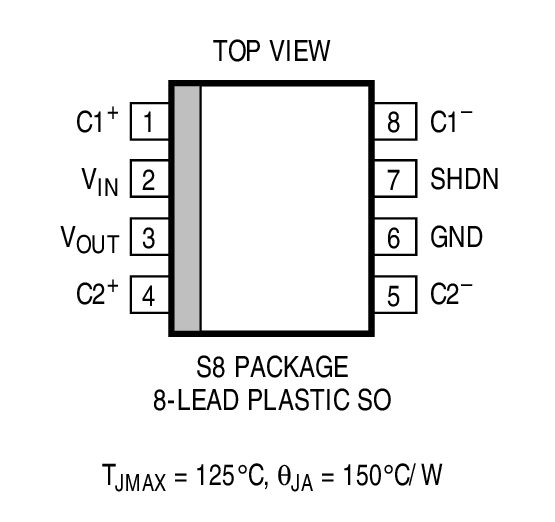

LTC1516 - 封装图解：

LTC1516 - LTC1516是Micropower, Regulated 5V Charge Pump DC/DC Converter

LTC1516是Linear公司的一款稳压的升压型充电泵产品，LTC1516是Micropower, Regulated 5V Charge Pump DC/DC Converter，本站介绍了LTC1516的封装应用图解、特点和优点、功能等，并给出了与LTC1516相关的凌力尔特元器件型号供参考。

LTC1516 - Micropower, Regulated 5V Charge Pump DC/DC Converter

LTC1516 - Micropower, Regulated 5V Charge Pump DC/DC Converter - Linear Technology（凌力尔特）

功能描述

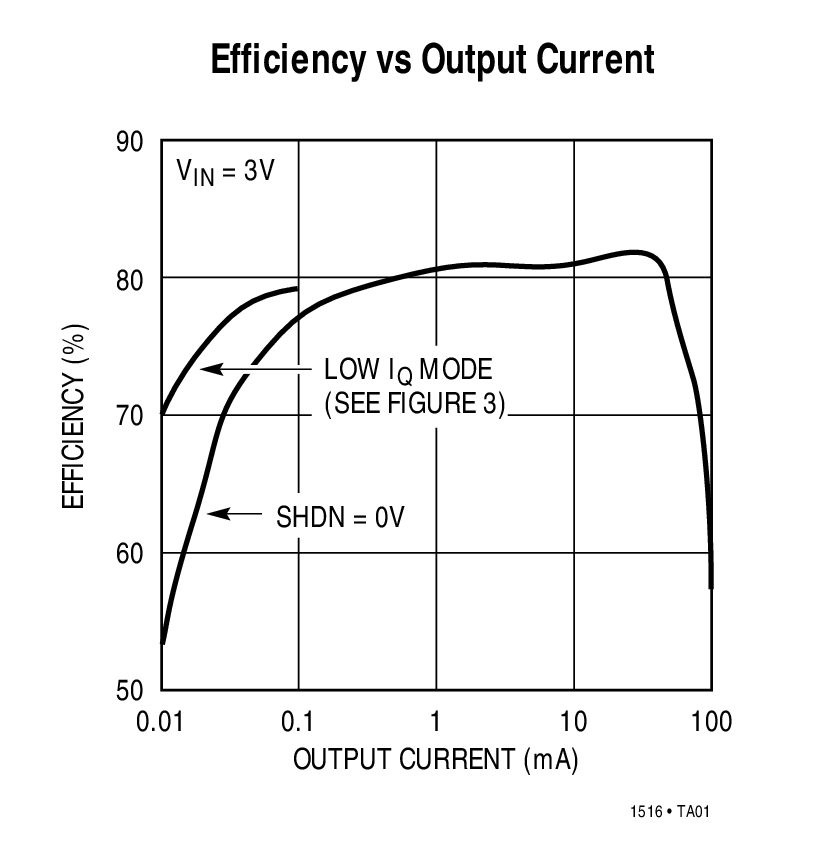

The LTC®1516 is a micropower charge pump DC/DC converter that produces a regulated 5V output from a 2V to 5V supply. Extremely low supply current (12µA typical with no load, < 1µA in shutdown) and low external parts count (two 0.22µF flying capacitors and two 10µF capacitors at V IN and V OUT ) make the LTC1516 ideally suited for small, light load battery-powered applications. Typical efficiency (V IN = 3V) exceeds 70% with load currents between 50µA and 50mA. Modulating the SHDN pin keeps the typical efficiency above 70% with load currents all the way down to 10µA.The LTC1516 operates as either a doubler or a tripler depending on V IN and output load conditions to improve overall efficiency. The part has thermal shutdown and can survive a continuous short from V OUT to GND. In shut-down the load is disconnected from V IN .The LTC1516 is available in an 8-pin SO package in both commercial and industrial temperature grades.

特点

Ultralow Power: Typical Operating ICC = 12µA

Short Circuit/Thermal Protection

Regulated 5V ±4% Output

2V to 5V Input Range

No Inductors

ICC in Shutdown: <1µA

Output Current:20mA (VIN > 2V)

50mA (VIN > 3V)

Shutdown Disconnects Load from VIN

Internal Oscillator: 600kHz

Compact Application Circuit (0.1 in²)

8-Pin SO Package

应用

2-Cell to 5V Conversion

Li-Ion Battery Backup Supplies

Local 3V to 5V Conversion

5V Flash Memory Programmer

Smart Card Readers

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1516CS8	SO-8	C	$4.15	$3.35
LTC1516CS8#PBF	SO-8	C	$4.15	$3.35
LTC1516CS8#TR	SO-8	C		$3.41
LTC1516CS8#TRPBF	SO-8	C		$3.41
LTC1516IS8	SO-8	I	$4.60	$3.70
LTC1516IS8#PBF	SO-8	I	$4.60	$3.70
LTC1516IS8#TR	SO-8	I		$3.76
LTC1516IS8#TRPBF	SO-8	I		$3.76
