LT1358 - LT1358是Dual 25MHz, 600V/μs Op Amps
LT1358是Linear公司的一款精准放大器产品，LT1358是Dual 25MHz, 600V/μs Op Amps，本站介绍了LT1358的封装应用图解、特点和优点、功能等，并给出了与LT1358相关的凌力尔特元器件型号供参考。
LT1358 - Dual 25MHz, 600V/μs Op Amps
LT1358 - Dual 25MHz, 600V/μs Op Amps - Linear Technology（凌力尔特）
功能描述
?
特点

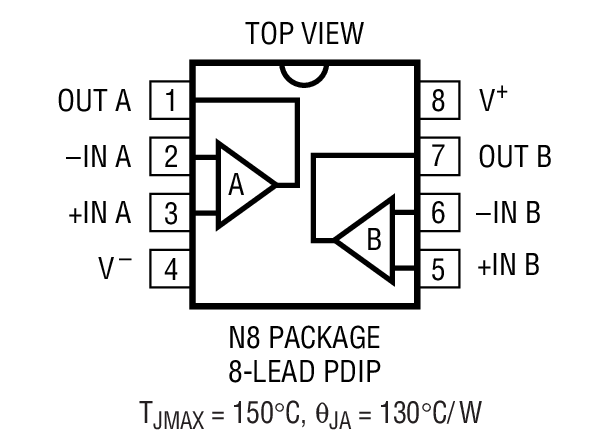

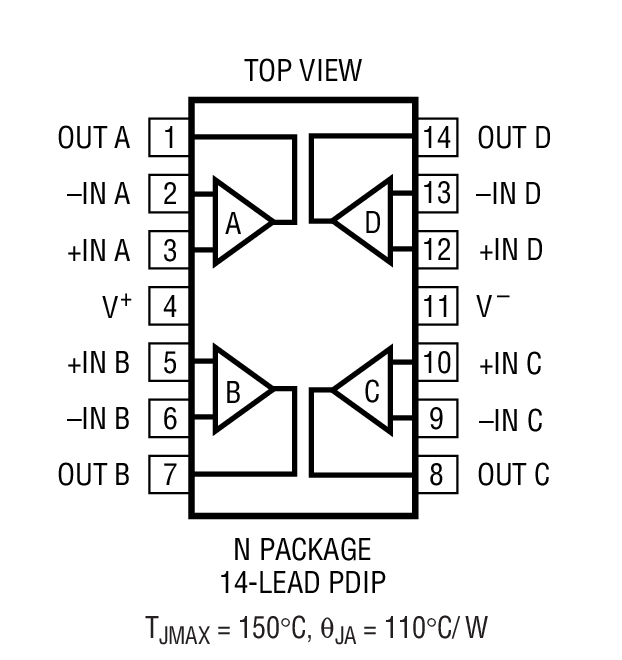

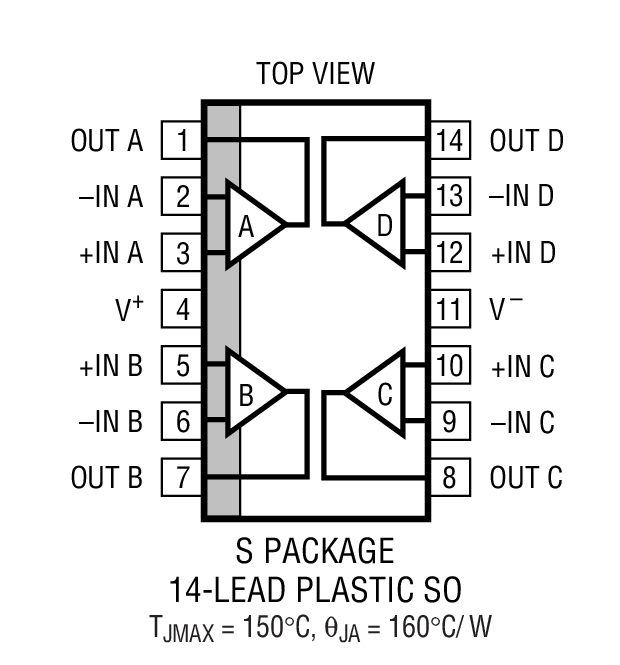

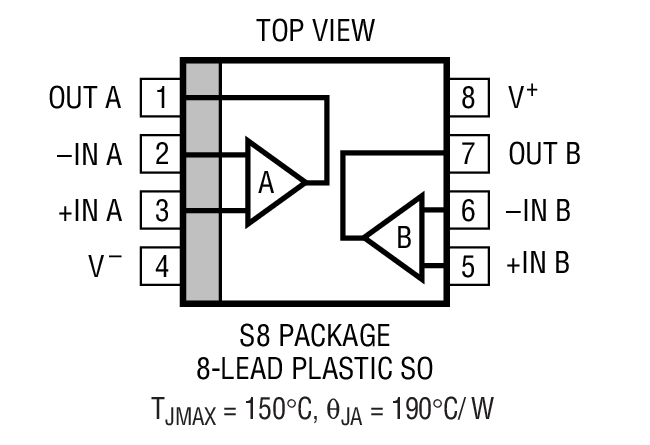

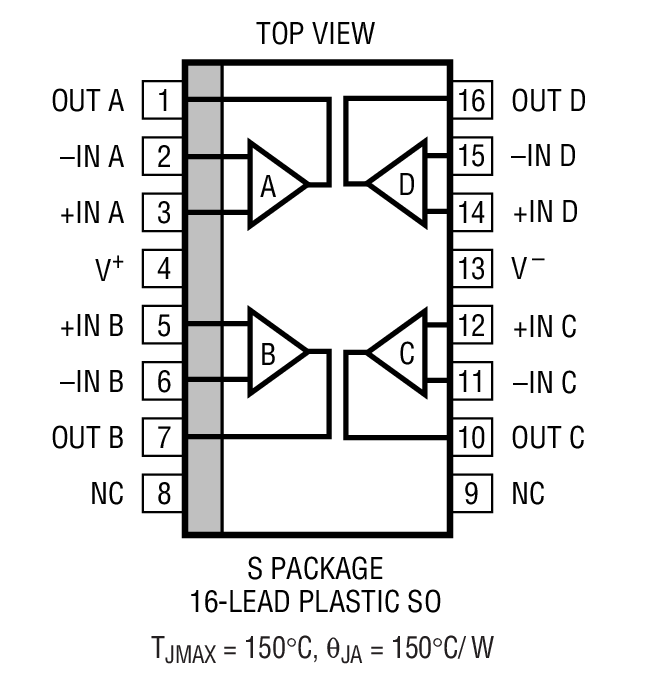

25MHz Gain-Bandwidth 600V/μs Slew Rate 2.5mA Maximum Supply Current per Amplifier Unity Gain Stable C-Load? Op Amp Drives All Capacitive Loads 8nV/rt Hz Input Noise Voltage 600μV Maximum Input Offset Voltage 500nA Maximum Input Bias Current 120nA Maximum Input Offset Current 20V/mV Minimum DC Gain, RL =1k 115ns Settling Time to 0.1%, 10V Step 220ns Settling Time to 0.01%, 10V Step ±12.5V Minimum Output Swing into 500 ohms ±3V Minimum Output Swing into 150 ohms Specified at ±2.5V, ±5V, and ±15V LT1358 is Available in 8-Pin PDIP and SO Packages LT1359 is Available in 14-Pin PDIP, 14-Pin and 16-Pin SO Packages 应用
Wideband Amplifiers Buffers Active Filters Data Acquisition Systems Photodiode Amplifiers以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LT1358CN8 | N-8 | C | $4.83 | $3.90 |
| LT1358CN8#PBF | N-8 | C | $4.83 | $3.90 |
| LT1358CS8 | SO-8 | C | $5.50 | $4.30 |
| LT1358CS8#PBF | SO-8 | C | $5.50 | $4.30 |
| LT1358CS8#TR | SO-8 | C | | $4.36 |
| LT1358CS8#TRPBF | SO-8 | C | | $4.36 |
| LT1358IN8 | N-8 | I | $5.94 | $4.48 |
| LT1358IN8#PBF | N-8 | I | $5.94 | $4.48 |
| LT1358IS8 | SO-8 | I | $6.78 | $4.95 |
| LT1358IS8#PBF | SO-8 | I | $6.78 | $4.95 |
| LT1358IS8#TR | SO-8 | I | | $5.01 |
| LT1358IS8#TRPBF | SO-8 | I | | $5.01 |
