LT1259是Low Cost Dual and Triple 130MHz Current Feedback Amplifiers with Shutdown

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LT1259

LT1259技术文档下载：

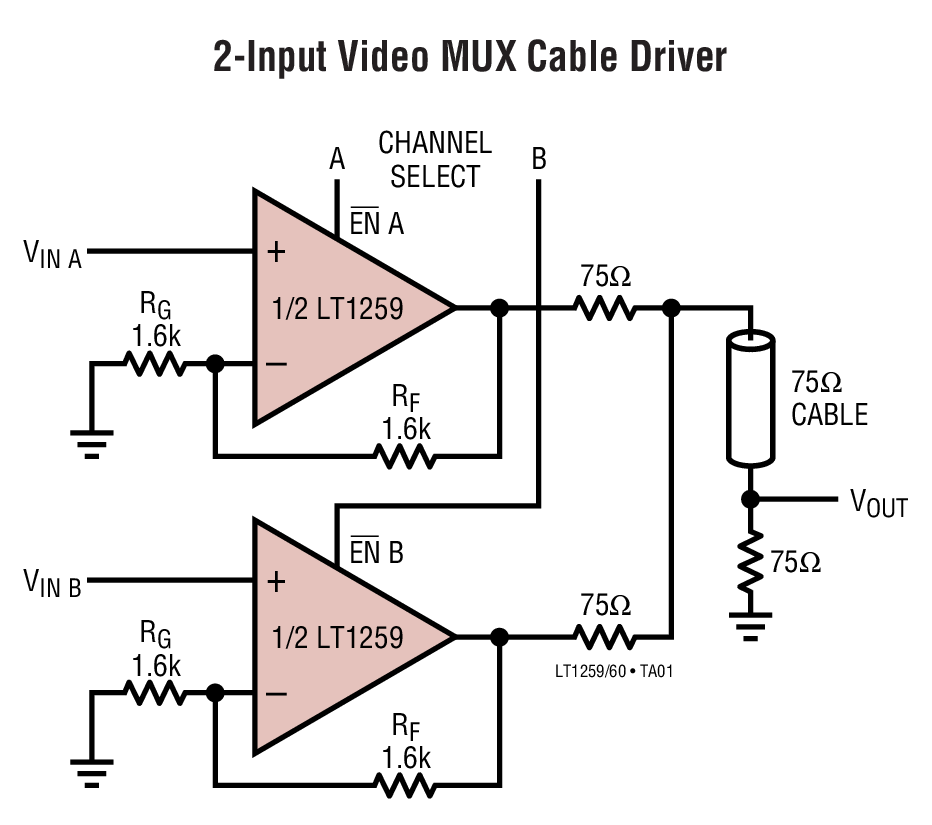

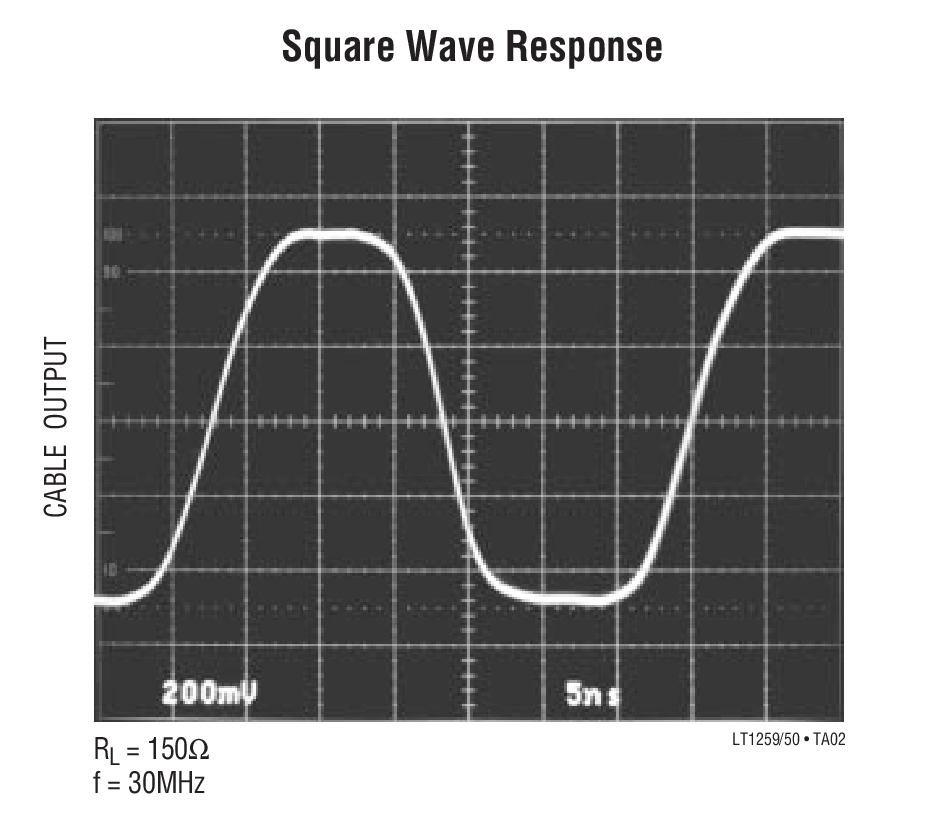

LT1259 - 典型应用图例：

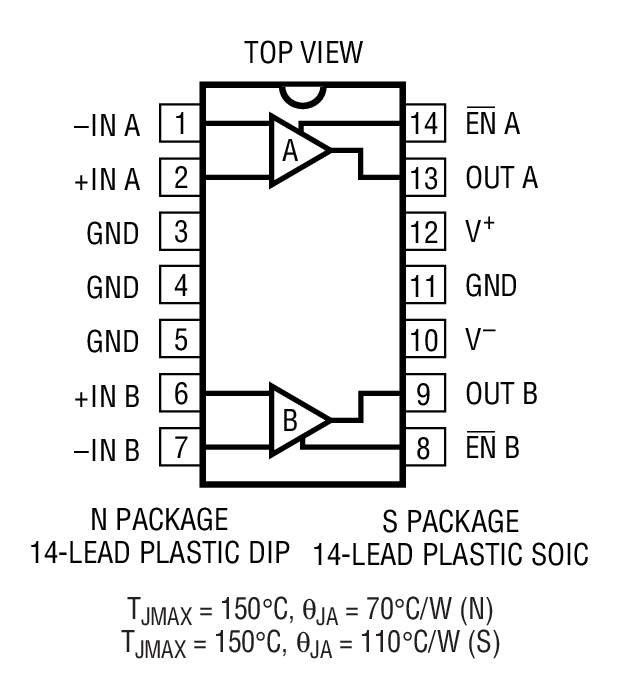

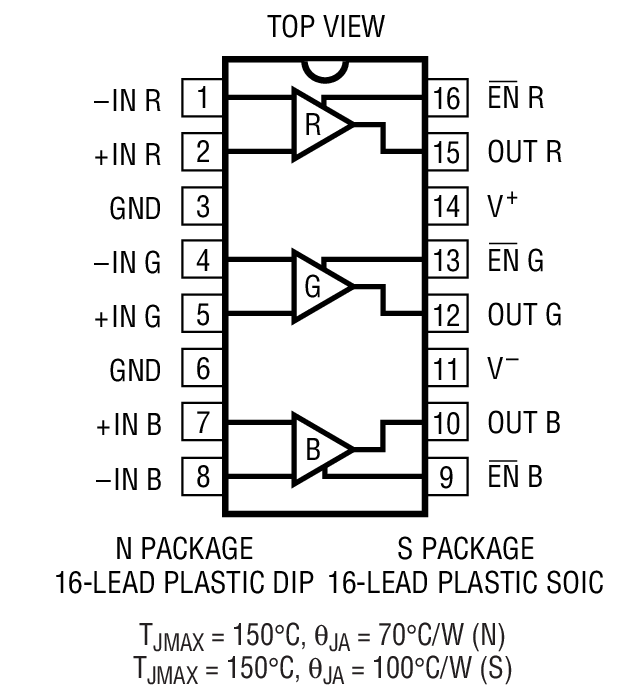

LT1259 - 封装图解：

LT1259 - LT1259是Low Cost Dual and Triple 130MHz Current Feedback Amplifiers with Shutdown

LT1259是Linear公司的一款高速放大器产品，LT1259是Low Cost Dual and Triple 130MHz Current Feedback Amplifiers with Shutdown，本站介绍了LT1259的封装应用图解、特点和优点、功能等，并给出了与LT1259相关的凌力尔特元器件型号供参考。

LT1259 - Low Cost Dual and Triple 130MHz Current Feedback Amplifiers with Shutdown

LT1259 - Low Cost Dual and Triple 130MHz Current Feedback Amplifiers with Shutdown - Linear Technology（凌力尔特）

功能描述

The LT?1259 contains two independent 130MHz current feedback amplifiers, each with a shutdown pin. These amplifiers are designed for excellent linearity while driving cables and other low impedance loads. The LT1260 is a triple version especially suited to RGB video applications. These amplifiers operate on all supplies from single 5V to ±15V and draw only 5mA per amplifier when active.When shut down, the LT1259/LT1260 amplifiers draw zero supply current and their outputs become high impedance. Only two LT1260s are required to make a complete 2-input RGB MUX and cable driver. These amplifiers turn on in only 100ns and turn off in 40ns, making them ideal in spread spectrum and portable equipment applications. The LT1259/LT1260 amplifiers are manufactured on Linear Technology’s proprietary complementary bipolar process.

特点

90MHz Bandwidth on ±5V

0.1dB Gain Flatness >30MHz

Completely Off in Shutdown, 0μA Supply Current

High Slew Rate: 1600V/μs

Wide Supply Range: ±2V(4V) to ±15V(30V)

0mA Output Current

Low Supply Current: 5mA/Amplifier

Differential Gain: 0.016%

Differential Phase: 0.075?

Fast Turn-On Time: 100ns

Fast Turn-Off Time: 40ns

14-Pin and 16-Pin Narrow SO Packages

应用

RGB Cable Drivers

Spread Spectrum Amplifiers

MUX Amplifiers

Composite Video Cable Drivers

Portable Equipment

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1259CN	N-14	C	$2.85	$2.45
LT1259CN#PBF	N-14	C	$2.85	$2.45
LT1259CS	SO-14	C	$3.00	$2.55
LT1259CS#PBF	SO-14	C	$3.00	$2.55
LT1259CS#TR	SO-14	C		$2.61
LT1259CS#TRPBF	SO-14	C		$2.61
LT1259IN	N-14	I	$3.20	$2.70
LT1259IN#PBF	N-14	I	$3.20	$2.70
LT1259IS	SO-14	I	$3.35	$2.80
LT1259IS#PBF	SO-14	I	$3.35	$2.80
LT1259IS#TR	SO-14	I		$2.86
LT1259IS#TRPBF	SO-14	I		$2.86
