LT1195 - LT1195是Low Power, High Speed Operational Amplifier
LT1195是Linear公司的一款高速放大器产品，LT1195是Low Power, High Speed Operational Amplifier，本站介绍了LT1195的封装应用图解、特点和优点、功能等，并给出了与LT1195相关的凌力尔特元器件型号供参考。
LT1195 - Low Power, High Speed Operational Amplifier
LT1195 - Low Power, High Speed Operational Amplifier - Linear Technology（凌力尔特）
功能描述
The LT?1195 is a video operational amplifier optimized for operation on single 5V and ±5V supplies. Unlike many high speed amplifiers, the LT1195 features high open-loop gain, over 75dB, and the ability to drive heavy loads to a full power bandwidth of 8.5MHz at 6VP-P . The LT1195 has a unity-gain stable bandwidth of 50MHz, a 60? phase margin and consumes only 12mA of supply current,making it extremely easy to use.
Because the LT1195 is a true operational amplifier, it is an ideal choice for wideband signal conditioning, fast integrators,peak detectors, active filters,and applications requiring speed, accuracy, and low cost.

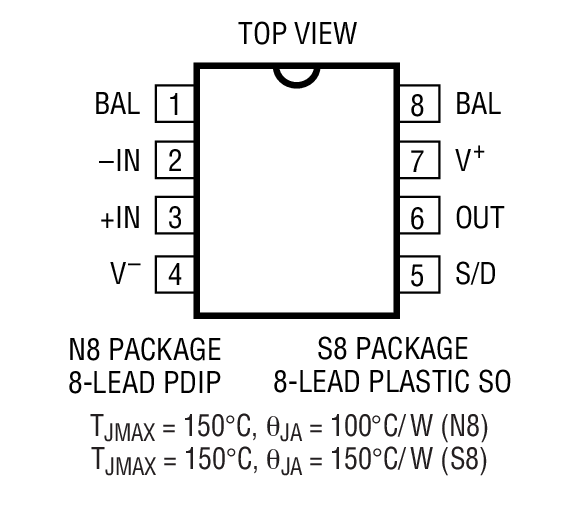

The LT1195 is a low power version of the popular LT1190,and is available in 8-pin miniDIPs and SO packages with standard pinouts. The normally unused Pin 5 is used for a shutdown feature that shuts off the output and reduces power dissipation to a mere 15mW.
特点
Gain-Bandwidth Product: 50MHzUnity-Gain StableSlew Rate: 165V/μsOutput Current: ?20mALow Supply Current: 12mAHigh Open-Loop Gain: 7.5V/mVLow CostSingle Supply 5V OperationIndustry Standard PinoutOutput Shutdown应用

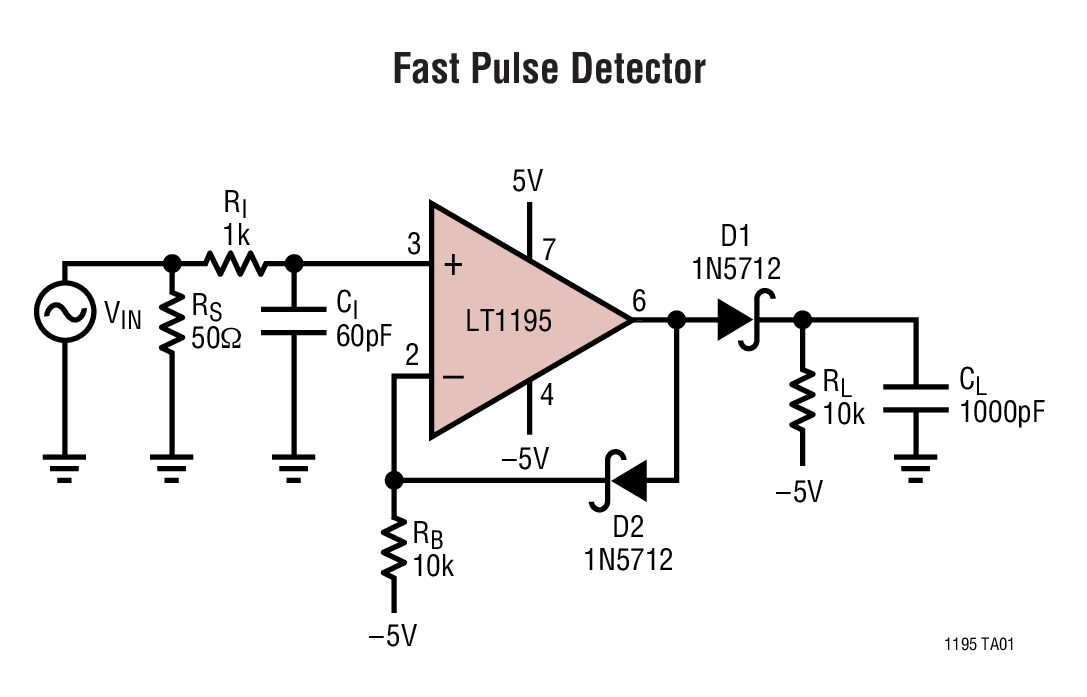

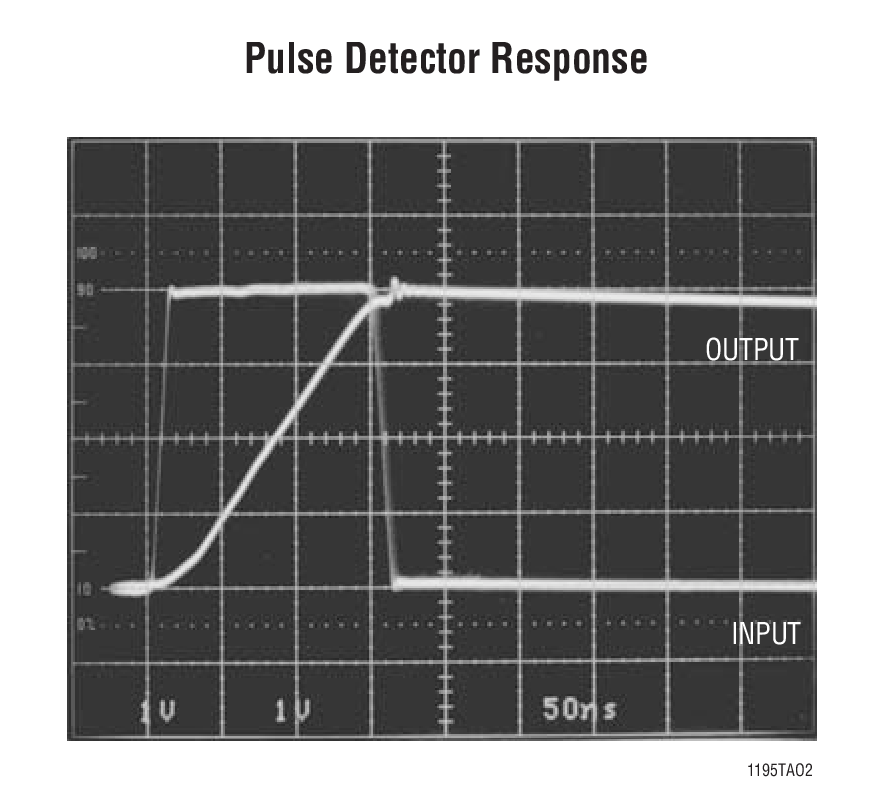

Video Cable DriversVideo Signal ProcessingFast Peak DetectorsFast IntegratorsVideo Cable DriversPulse Amplifiers以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LT1195CN8 | N-8 | C | $2.17 | $1.70 |
| LT1195CN8#PBF | N-8 | C | $2.17 | $1.70 |
| LT1195CS8 | SO-8 | C | $2.50 | $1.90 |
| LT1195CS8#PBF | SO-8 | C | $2.50 | $1.90 |
| LT1195CS8#TR | SO-8 | C | | $1.96 |
| LT1195CS8#TRPBF | SO-8 | C | | $1.96 |
