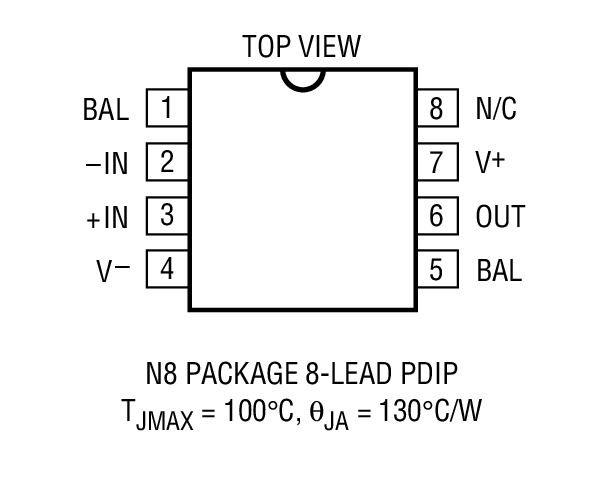

LT1022是LINEAR凌力尔特公司的一款精准放大器产品，LT1022是LT1022是High Speed, Precision JFET Input Operational Amplifier，本站介绍了LT1022的封装应用图解、特点和优点、功能等，并给出了与LT1022相关的LINEAR元器件型号供参考。

LT1022 - LT1022是High Speed, Precision JFET Input Operational Amplifier - 精准放大器 - 信号调理 - 凌力尔特

LT1022 - High Speed, Precision JFET Input Operational Amplifier

LT1022 - High Speed, Precision JFET Input Operational Amplifier - Linear Technology（凌力尔特）

功能描述

The LT?1022 JFET input operational amplifier combines high speed and precision performance.

A 26V/μs slew rate and 8.5MHz gain-bandwidth product are simultaneously achieved with offset voltage of typically 80μV, 1.5μV/°C drift, bias currents of 50pA at 70°C, 500pA at 125°C. The output delivers 20mA of load current without gain degradation.

The 250μV maximum offset voltage specification represents less than 1/2 least significant bit error in a 14-bit, 10V system.

The LT1022A meets or exceeds all OP-16A and OP-16E specifications. It is faster and more accurate withoutstability problems at cold temperatures.

The LT1022 can be used as the output amplifier for 12-bit current output D/A converters, as shown below.

For a more accurate, lower power dissipation, but slower JFET input op amp, please refer to the LT1055 data sheet.

特点

Guaranteed Slew Rate 23V/μs Min.

Guaranteed Offset Voltage 250μV Max-55°C to 125°C 750μV Max.

Guaranteed Drift 5μV/°C Max.

Guaranteed Bias Current70°C 180pA Max.125°C 4nA Max.

Gain-Bandwidth Product: 8.5MHz Typ

Settling Time to 0.05% (10V Step): 0.9µs Typ

应用
