LTC1592B - LTC1592B是具可编程输出范围的 16 位 SoftSpan DAC

LTC1592B是LINEAR凌力尔特公司的一款电流输出 DAC产品，LTC1592B是LTC1592B是具可编程输出范围的 16 位 SoftSpan DAC，本站介绍了LTC1592B的封装应用图解、特点和优点、功能等，并给出了与LTC1592B相关的LINEAR元器件型号供参考。

LTC1592B - LTC1592B是具可编程输出范围的 16 位 SoftSpan DAC - 电流输出 DAC - 数据转换 - 凌力尔特

LTC1592B - 具可编程输出范围的 16 位 SoftSpan DAC

LTC1592 - 具可编程输出范围的 16 位 SoftSpan DAC - Linear Technology（凌力尔特）

功能描述

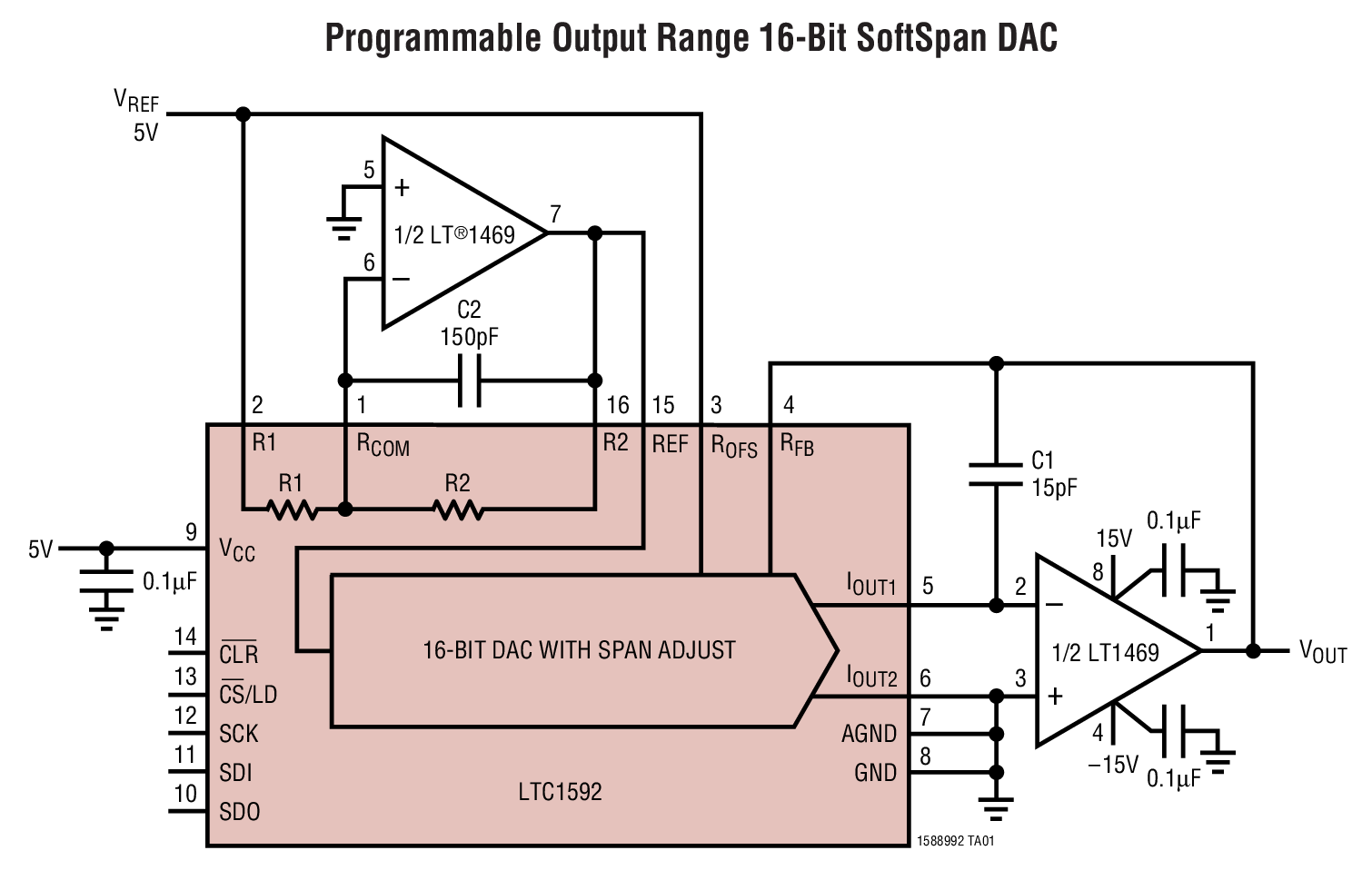

The LTC1588/LTC1589/LTC1592 are serial input 12-/14-/16-bit multiplying current output DACs that operates from a single 5V supply. These SoftSpan? DACs can be software-programmed for either unipolar or bipolar mode through a 3-wire SPI interface. In either mode, the voltage output range can also be software-programmed. Two output ranges in unipolar mode and four output ranges in bipolar mode are available.

INL and DNL are accurate to 1LSB over the industrial temperature range in both unipolar and bipolar modes. True 16-bit 4-quadrant multiplication is achieved with on-chip four quadrant multiplication resistors. The LTC1588/LTC1589/LTC1592 are available in a 16-lead SSOP package.

These devices include an internal deglitcher circuit that reduces the glitch impulse to less than 2nV-s (typ).

The asynchronous clear pin resets the LTC1588/LTC1589/ LTC1592 to 0V in unipolar or bipolar mode.

特点

Six Programmable Output RangesUnipolar Mode: 0V to 5V, 0V to 10VBipolar Mode: ±5V, ±10V, ±2.5V,2.5V to 7.5V

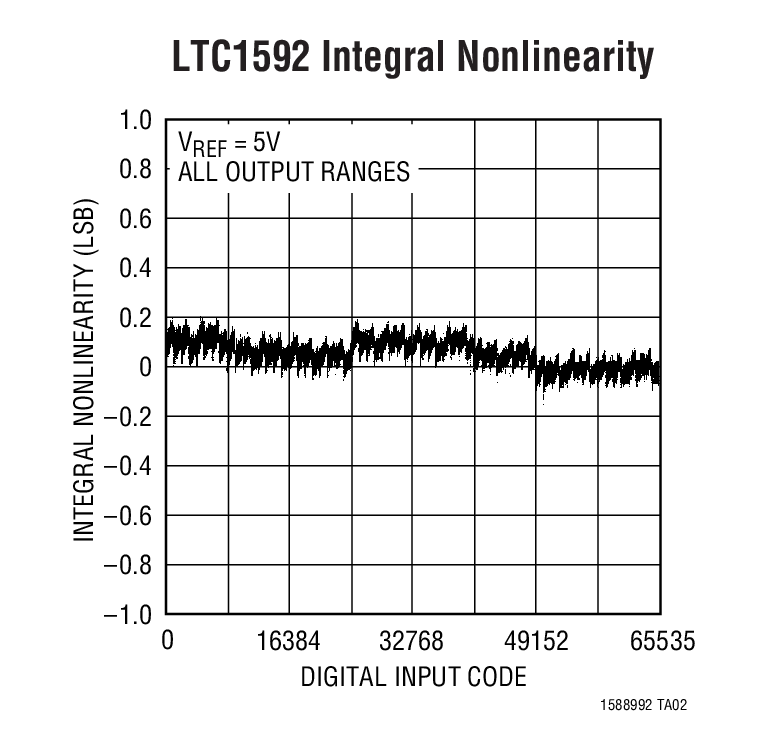

1LSB Max DNL and INL Over the Industrial Temperature Range

Glitch Impulse < 2nV-s

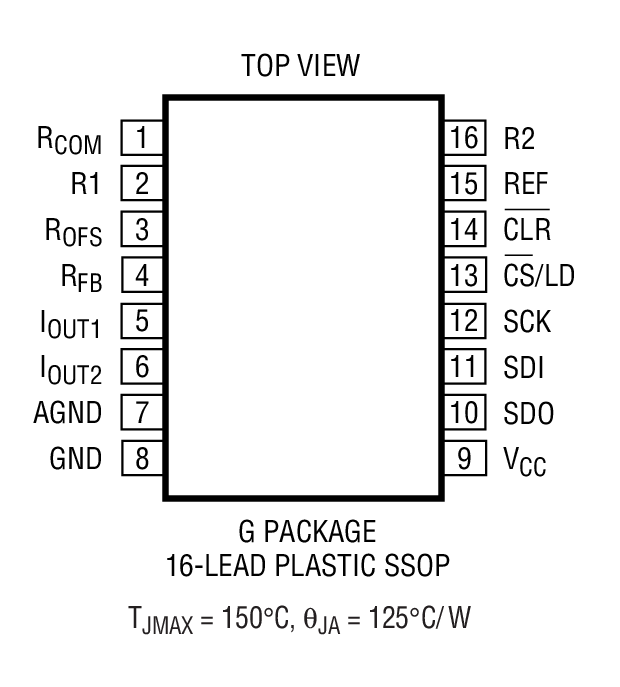

16-Lead SSOP Package

Power-On Reset to 0V

Asynchronous Clear to 0V for All Ranges

应用

Process Control and Industrial Automation

Precision Instrumentation

Direct Digital Waveform Generation

Software-Controlled Gain Adjustment

Automatic Test Equipment

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1592ACG	SSOP-16	C	$34.35	$26.15
LTC1592ACG#PBF	SSOP-16	C	$34.35	$26.15
LTC1592ACG#TR	SSOP-16	C		$26.21
LTC1592ACG#TRPBF	SSOP-16	C		$26.21
LTC1592AIG	SSOP-16	I	$40.35	$30.75
LTC1592AIG#PBF	SSOP-16	I	$40.35	$30.75
LTC1592AIG#TR	SSOP-16	I		$30.81
LTC1592AIG#TRPBF	SSOP-16	I		$30.81
LTC1592BCG	SSOP-16	C	$18.30	$13.95
LTC1592BCG#PBF	SSOP-16	C	$18.30	$13.95
LTC1592BCG#TR	SSOP-16	C		$14.01
LTC1592BCG#TRPBF	SSOP-16	C		$14.01
LTC1592BIG	SSOP-16	I	$22.20	$16.95
LTC1592BIG#PBF	SSOP-16	I	$22.20	$16.95
LTC1592BIG#TR	SSOP-16	I		$17.01
LTC1592BIG#TRPBF	SSOP-16	I		$17.01
