VRG8602 - Positive Adjustable Regulator

RH117 - Positive Adjustable Regulator - Linear Technology（凌力尔特）

功能描述

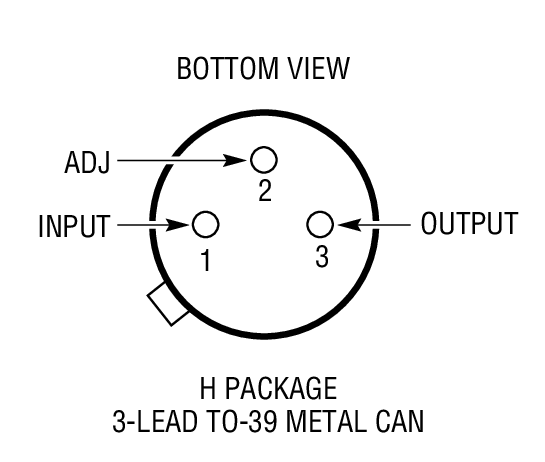

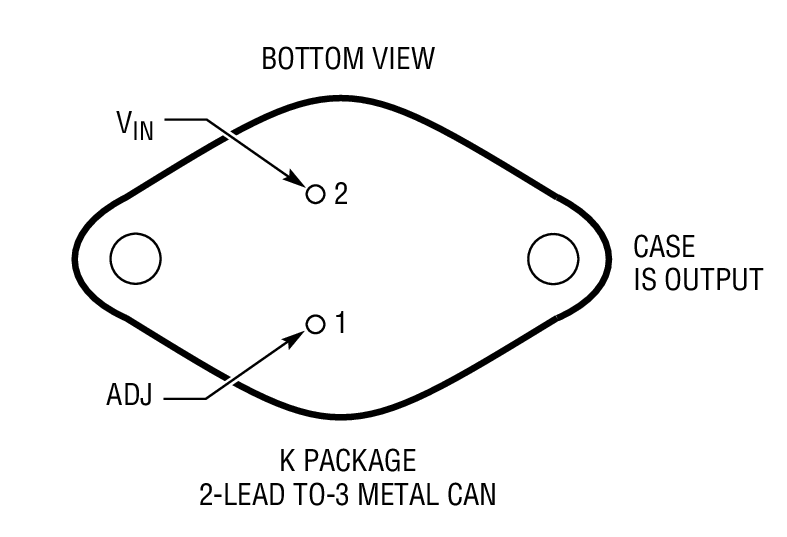

The RH117 is a 3-terminal positive adjustable regulator capable of supplying up to 0.5A (H package) or 1.5A (K package). The output is adjusted using two external resistors for a range of 1.2V to 37V. The devices have full current limit thermal overload safe area protection, all of which remain functional even if the adjustment terminal is disconnected.

The wafer lots are processed to LTC?s in-house Class S flow to yield circuits usable in stringent military applications. In addition to 883 processing, the RH117 is subjected to 100% burn-in in thermal limit.

特点

ABSOLUTE MAXIMUM RATINGS

Power Dissipation...... Internally Limited

Input-to-Output Voltage Differential........ 40V

Operating JunctionTemperature Range ?55°C to 150°C

Storage Temperature Range ?65°C to 150°C

Lead Temperature (Soldering, 10 sec).......300°C

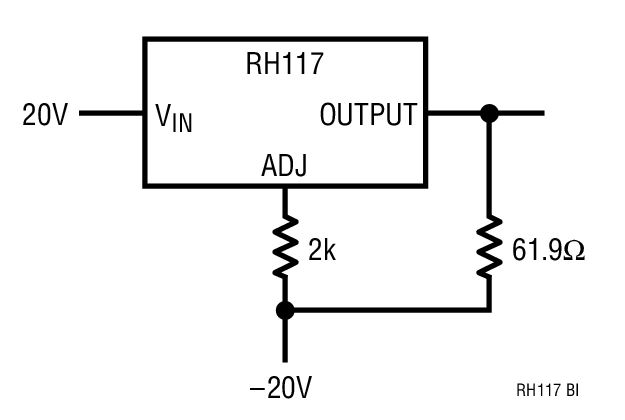

应用

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
