LTC2847是具终端和 3.3V 数字接口的软件可选多协议收发器

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC2847

LTC2847技术文档下载：

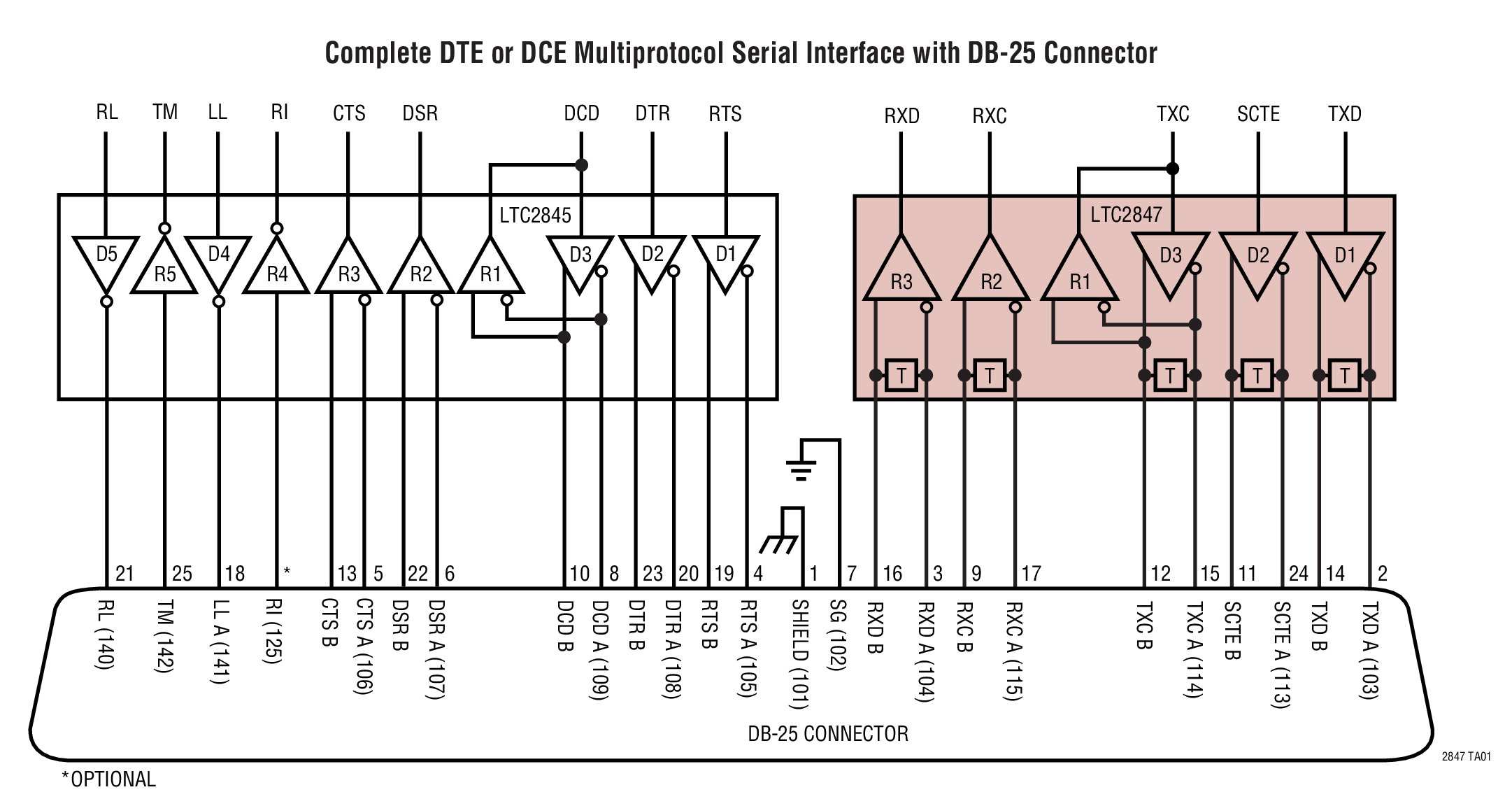

LTC2847 - 典型应用图例：

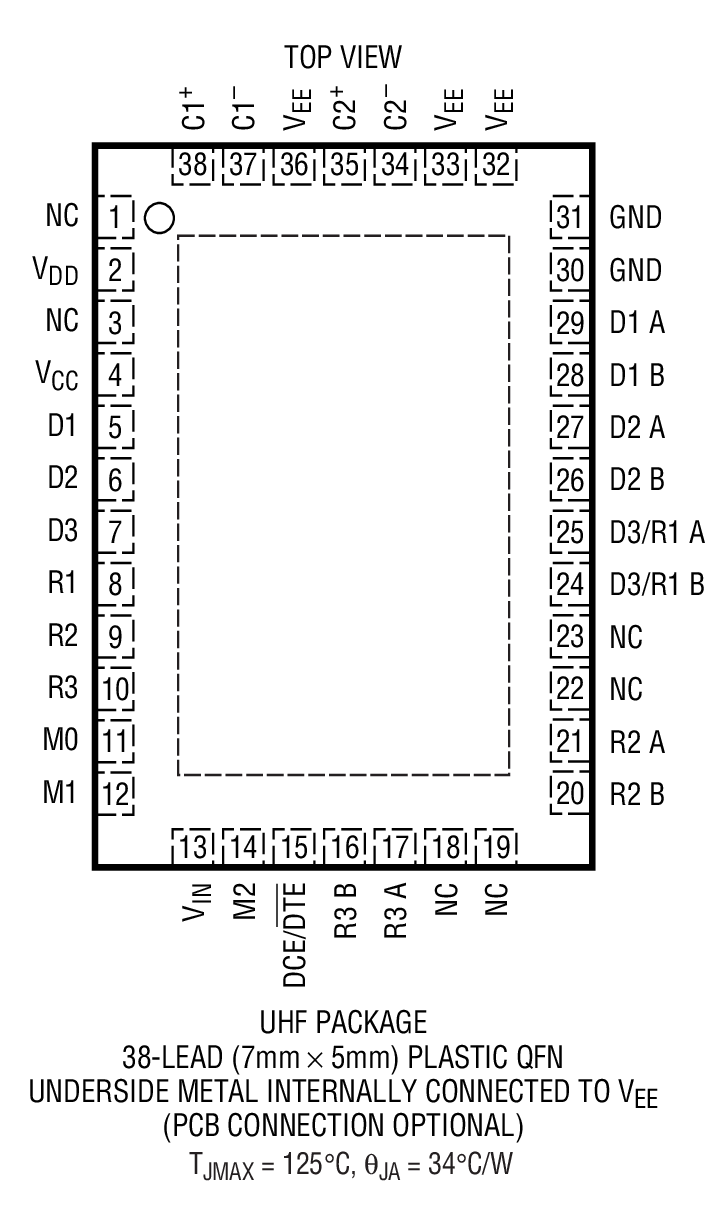

LTC2847 - 封装图解：

LTC2847 - LTC2847是具终端和 3.3V 数字接口的软件可选多协议收发器

LTC2847是Linear公司的一款多协议收发器产品，LTC2847是具终端和 3.3V 数字接口的软件可选多协议收发器，本站介绍了LTC2847的封装应用图解、特点和优点、功能等，并给出了与LTC2847相关的凌力尔特元器件型号供参考。

LTC2847 - 具终端和 3.3V 数字接口的软件可选多协议收发器

LTC2847 - 具终端和 3.3V 数字接口的软件可选多协议收发器 - Linear Technology（凌力尔特）

功能描述

The LTC2847 is a 3-driver/3-receiver multiprotocol transceiver with on-chip cable termination. When combined with the LTC2845, this chip set forms a complete softwareselectable DTE or DCE interface port that supports the RS232, RS449, EIA530, EIA530-A, V.35, V.36 and X.21 protocols. All necessary cable termination is provided inside the LTC2847.

The VCC supplies the drivers, the receivers and an internal charge pump that requires only five space-saving surface mounted capacitors. The VIN supply drives the digital interface circuitry including the receiver output drivers. It can be tied to VCC or be powered off a lower supply (down to 3V) to interface with low voltage ASICs. The LTC2847 is available in a 0.8mm tall, 5mm x 7mm QFN package.

特点

Software-Selectable Transceiver Supports: RS232, RS449, EIA530, EIA530-A, V.35, V.36, X.21

Operates from Single 5V Supply

Separate Supply Pin for Digital Interface Works down to 3V

On-Chip Cable Termination

Complete DTE or DCE Port with LTC2845

Available in 38-Pin 5mm x 7mm QFN Package

应用

Data Networking

CSU and DSU

Data Routers

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC2847CUHF	5x7 QFN-38	C	$14.90	$10.90
LTC2847CUHF#PBF	5x7 QFN-38	C	$14.90	$10.90
LTC2847CUHF#TR	5x7 QFN-38	C		$11.00
LTC2847CUHF#TRPBF	5x7 QFN-38	C		$11.00
LTC2847IUHF	5x7 QFN-38	I	$17.10	$12.50
LTC2847IUHF#PBF	5x7 QFN-38	I	$17.10	$12.50
LTC2847IUHF#TR	5x7 QFN-38	I		$12.60
LTC2847IUHF#TRPBF	5x7 QFN-38	I		$12.60
