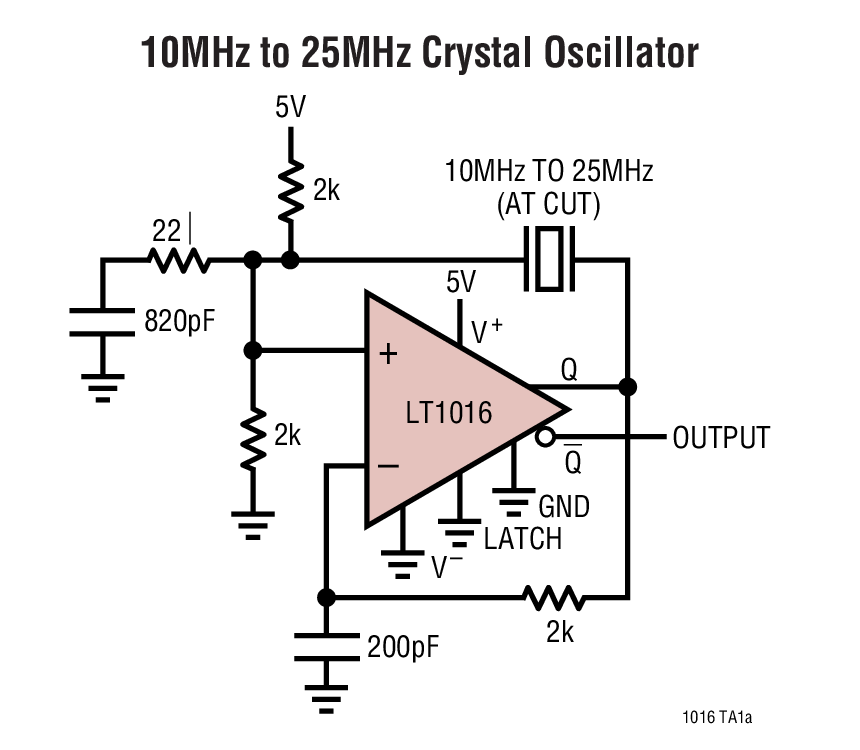

LT1016典型应用图例一

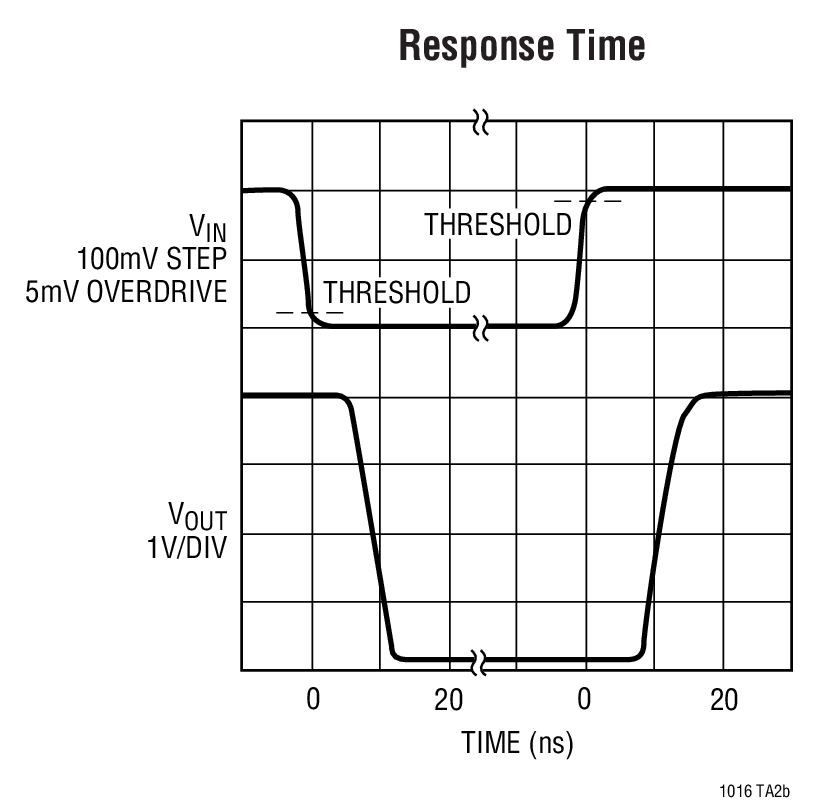

LT1016典型应用图例二
LT1016 - 封装图解：
LT1016封装图解一
LT1016封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1016介绍

LT1016 - LT1016是Ultra Fast Precision 10ns Comparator

LT1016是LINEAR凌力尔特公司的一款高速比较器产品，LT1016是LT1016是Ultra Fast Precision 10ns Comparator，本站介绍了LT1016的封装应用图解、特点和优点、功能等，并给出了与LT1016相关的LINEAR元器件型号供参考。

LT1016 - LT1016是Ultra Fast Precision 10ns Comparator - 高速比较器 - 信号调理 - 凌力尔特

LT1016 - Ultra Fast Precision 10ns Comparator

LT1016 - Ultra Fast Precision 10ns Comparator - Linear Technology（凌力尔特）

功能描述

The H (Metal Can), J (Ceramic), and K (Metal Can) Packages From Linear Technology Are Now Obsolete

The LT1016 is an UltraFast 10ns comparator that interfaces directly to TTL/CMOS logic while operating off either ±5V or single 5V supplies. Tight offset voltage specifications and high gain allow the LT1016 to be used in precision applications. Matched complementary outputs further extend the versatility of this comparator.

A unique output stage provides active drive in both directions for maximum speed into TTL/CMOS logic or passive loads, yet does not exhibit the large current spikes found in conventional output stages. This allows the LT1016 to remain stable with the outputs in the active region which, greatly reduces the problem of output “glitching” when the input signal is slow moving or is low level.

The LT1016 has a LATCH pin which will retain input data at the outputs, when held high. Quiescent negative power supply current is only 3mA. This allows the negative supply pin to be driven from virtually any supply voltage with a simple resistive divider. Device performance is not affected by variations in negative supply voltage.

Linear Technology offers a wide range of comparators in addition to the LT1016 that address different applications. See the Related Parts section on the back page of the data sheet.

特点
  • UltraFast™ (10ns typ)
  • Operates Off Single +5V Supply, or ±5V
  • Complementary Output to TTL
  • Low Offset Voltage
  • No Minimum Input Slew Rate Requirement
  • No Power Supply Current Spiking
  • Output Latch Capability
    • 应用
  • High Speed A to D Converters
  • High Speed Sampling Circuits
  • Line Receiver
  • Extended Range V to F Converters
  • Fast Pulse Height/Width Discriminators
  • Zero-Crossing Detectors
  • Current Sense for Switching Regulators
  • High Speed Triggers
  • Crystal Oscillators
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1016CN8 N-8 C $3.67 $2.90
    LT1016CN8#PBF N-8 C $3.67 $2.90
    LT1016CS8 SO-8 C $4.08 $3.15
    LT1016CS8#PBF SO-8 C $4.08 $3.15
    LT1016CS8#TR SO-8 C $3.21
    LT1016CS8#TRPBF SO-8 C $3.21
    LT1016IN8 N-8 I $5.83 $4.75
    LT1016IN8#PBF N-8 I $5.83 $4.75
    LT1016IS8 SO-8 I $6.67 $5.40
    LT1016IS8#PBF SO-8 I $6.67 $5.40
    LT1016IS8#TR SO-8 I $5.46
    LT1016IS8#TRPBF SO-8 I $5.46
