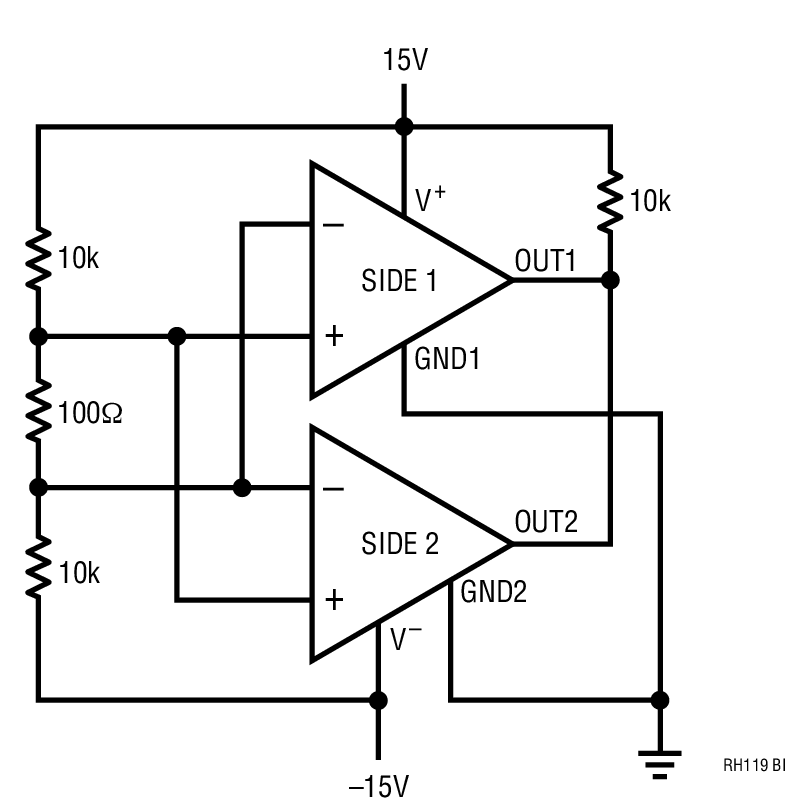

RH119J8 - 典型应用图例：

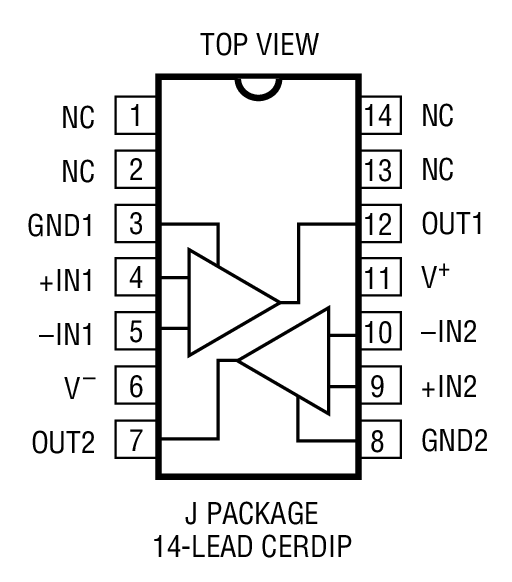

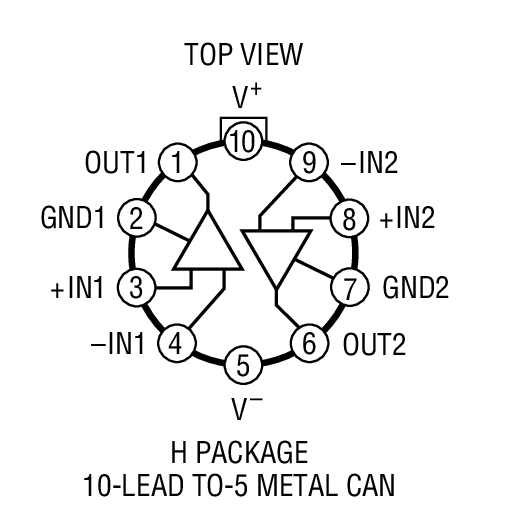

RH119J8 - 封装图解：

RH119J8RH119J8

RH119J8 - RH119J8是High Performance Dual Comparator

RH119J8是Linear公司的一款合乎航天使用要求的比较器产品，RH119J8是High Performance Dual Comparator，本站介绍了RH119J8的封装应用图解、特点和优点、功能等，并给出了与RH119J8相关的凌力尔特元器件型号供参考。

RH119J8 - High Performance Dual Comparator

RH119 - High Performance Dual Comparator - Linear Technology（凌力尔特）

功能描述

The RH119 dual comparator features low input offset voltage and offset current, high voltage gain, guaranteed common mode rejection and input protection diodes.

The RH119 is capable of operation over a supply range from 5V to ±15V and can drive 25mV leads from each open collector output. A separate GND pin allows the RH119 to isolate system grounds.

The wafer lots are processed to Linear Technology’s in-house Class S flow to yield circuits usable in stringent military applications.

特点

ABSOLUTE MAXIUM RATINGS

Supply Voltage.....36V

Output to Negative Supply Voltage.....36V

Ground to Negative Supply Voltage.....25V

Ground to Positive Supply Voltage.....18V

Diffierential Input Voltage.....±5V

Differential Input Current.....?5mA

Input Voltage (See Note 1) Output Short-Circuit Duration 10 sec

Operating Temperature Range.....?55°C to 125°C

Storage Temperature Range.....?65°C to 150°C
