RH1078MW是Micropower, Dual, Single Supply Precision Op Amp

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> RH1078MW

RH1078MW技术文档下载：

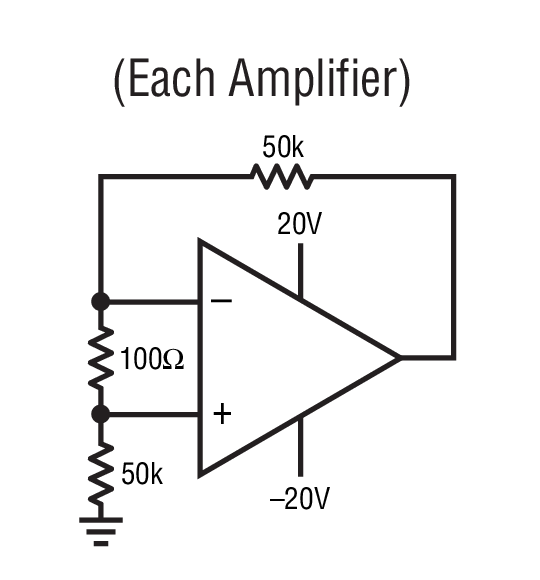

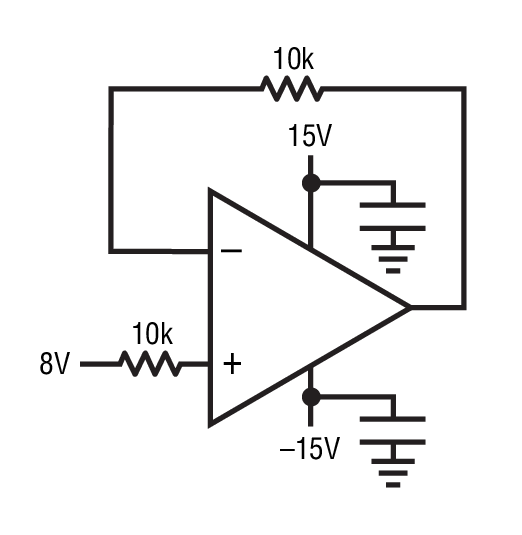

RH1078MW - 典型应用图例：

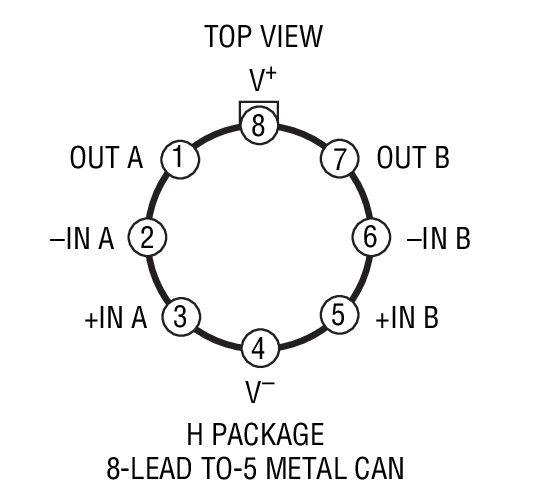

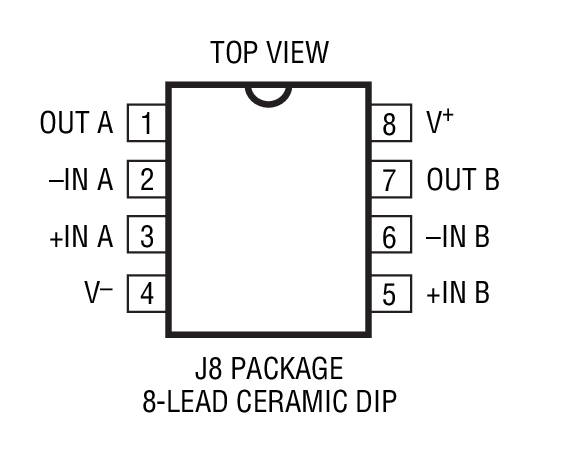

RH1078MW - 封装图解：

RH1078MWRH1078MW

RH1078MW - RH1078MW是Micropower, Dual, Single Supply Precision Op Amp

RH1078MW是Linear公司的一款合乎航天使用要求的放大器产品，RH1078MW是Micropower, Dual, Single Supply Precision Op Amp，本站介绍了RH1078MW的封装应用图解、特点和优点、功能等，并给出了与RH1078MW相关的凌力尔特元器件型号供参考。

RH1078MW - Micropower, Dual, Single Supply Precision Op Amp

RH1078M - Micropower, Dual, Single Supply Precision Op Amp - Linear Technology（凌力尔特）

功能描述

The RH1078M is a micropower dual op amp in the standard 8-pin configuration. This device is optimized for single supply operation at 5V. Specifications for ±15V are also provided.

The wafer lots are processed to LTC's in-house Class S flow to yield circuits usable in stringent military applications.

特点

ABSOLUTE MAXIMUM RATINGS

Supply Voltage.....±22V

Differential Input Voltage.....±30V

Input VoltageEqual to Positive Supply Voltage 0.5V Below Negative Supply Voltage

Output Short-Circuit Duration.....Indefinite

Operating Temperature Range.....–55°C to 125°C

Storage Temperature Range.....–55°C to 150±C

Lead Temperature (Soldering, 10 sec).....300°C

应用

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
