LTC1348是3.3V/5V Low Power RS232 3-Driver/5-Receiver Transceiver

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC1348

LTC1348技术文档下载：

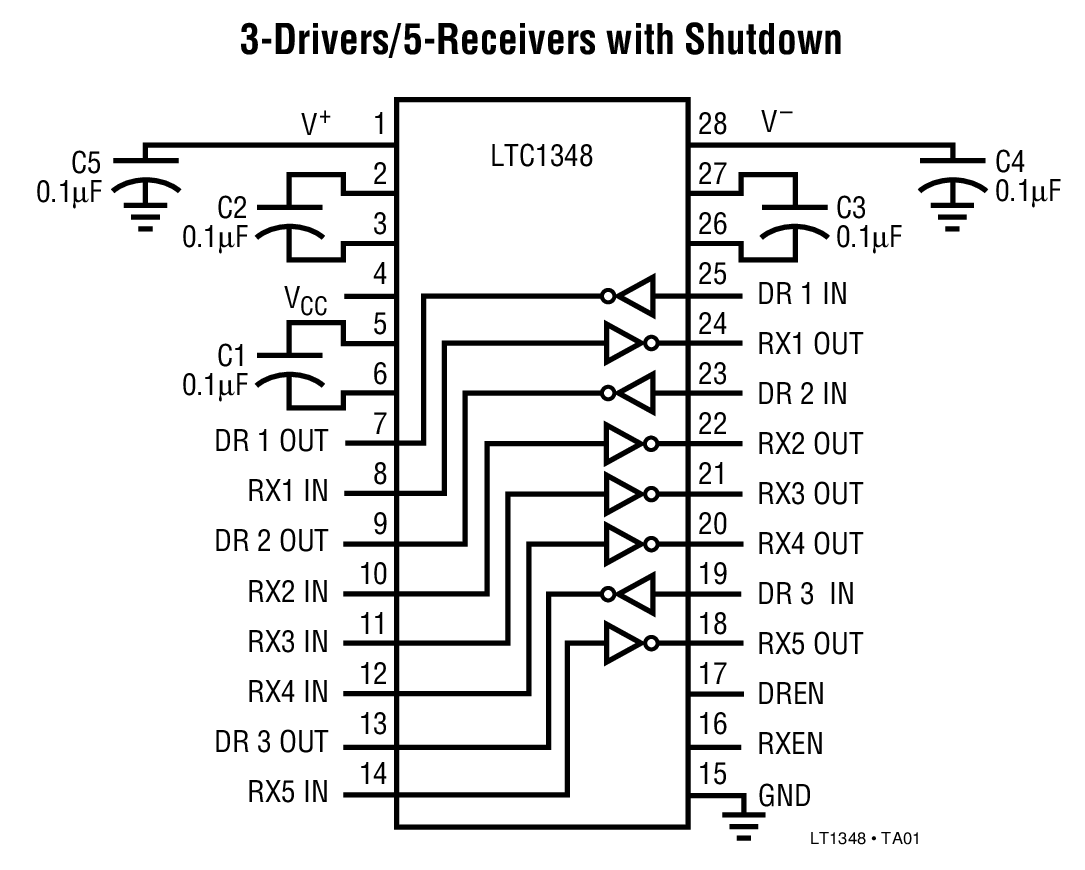

LTC1348 - 典型应用图例：

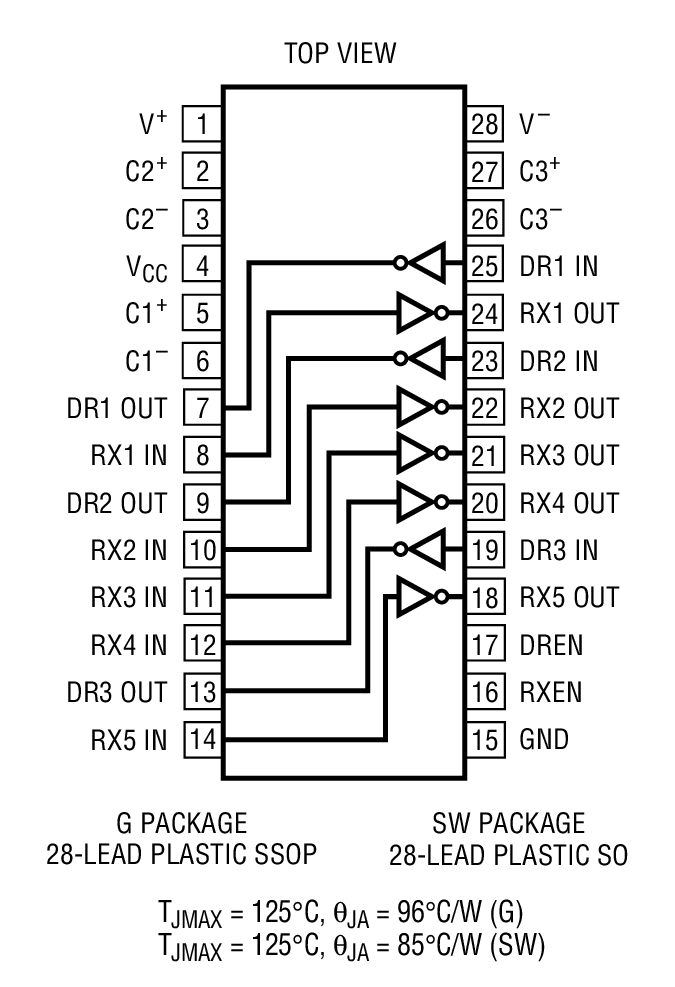

LTC1348 - 封装图解：

LTC1348 - LTC1348是3.3V/5V Low Power RS232 3-Driver/5-Receiver Transceiver

LTC1348是Linear公司的一款RS232 / RS562 收发器产品，LTC1348是3.3V/5V Low Power RS232 3-Driver/5-Receiver Transceiver，本站介绍了LTC1348的封装应用图解、特点和优点、功能等，并给出了与LTC1348相关的凌力尔特元器件型号供参考。

LTC1348 - 3.3V/5V Low Power RS232 3-Driver/5-Receiver Transceiver

LTC1348 - 3.3V/5V Low Power RS232 3-Driver/5-Receiver Transceiver - Linear Technology（凌力尔特）

功能描述

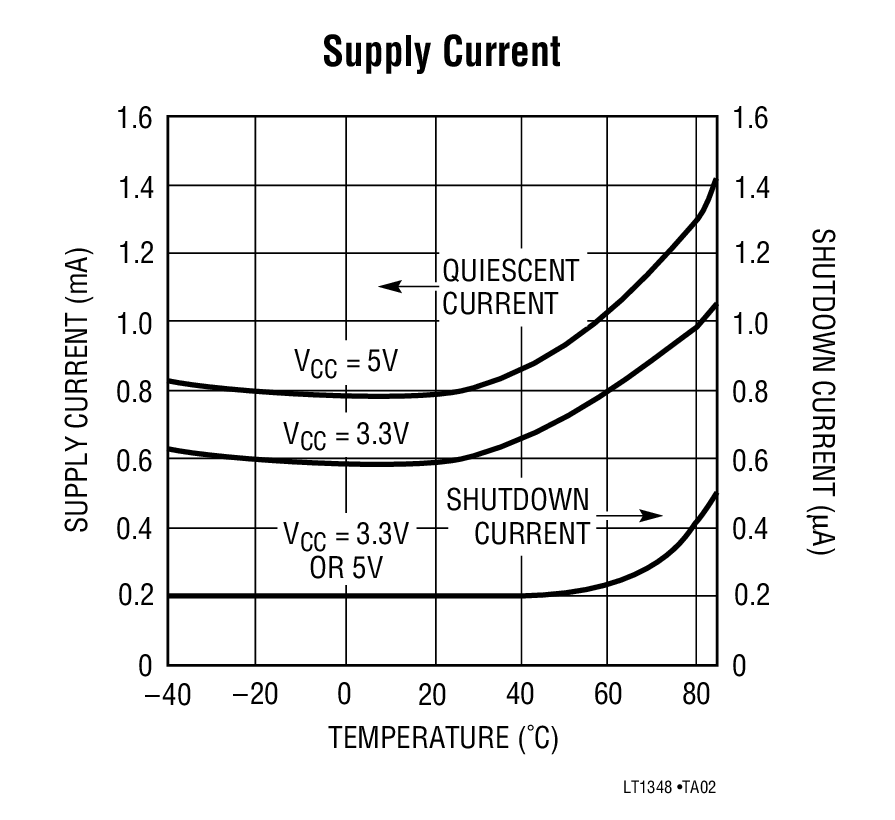

The LTC?1348 is a 3-driver/5-receiver RS232 transceiver with very low supply current. The charge pump only requires five 0.1μF capacitors. The LTC1348 provides full RS232 output levels when operated over a wide supply range of 3V to 5.5VThe transceiver operates in one of four modes: Normal, Receiver Disable, Receiver Alive and Shutdown. In Normal or Receiver Disable mode, ICC is only 600μA at 3.3V and 800μA at 5V in the no load condition. In Shutdown mode, the supply current is further reduced to 0.2μA. In Receiver Alive mode, all five receivers are kept alive and the supply current is 15μA. All RS232 outputs assume a high impedance state in Shutdown or Receiver Alive mode or with the power off. The receiver outputs assume a high impedance state in Receiver Disable or with the power off.The LTC1348 is fully compliant with all data rate and overvoltage RS232 specifications. The transceiver operates up to 120kbaud with all drivers loaded with 1000pF, 3kohms. Both driver outputs and receiver inputs can be forced to ?25V without damage and can survive multiple ±10kV ESD strikes.

特点

Low Supply Current: 600µA at 3.3V

Supply Current in Shutdown: 0.2µA

Supply Current in Receiver Alive Mode: 15µA

ESD Protection over ±10kV

Operates from a Single 3V to 5.5V Supply

Operates to 120kBaud with 0.1µF Flying Capacitors

Three-State Outputs Are High Impedance When Off

Output Overvoltage Does Not Force Current Back into Supplies

RS232 I/O Lines Can Be Forced to ±25V Without Damage

Flowthrough Architecture

应用

Notebook Computers

Palmtop Computers

Printers

Portable Instruments

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1348CG	SSOP-28	C	$5.85	$4.65
LTC1348CG#PBF	SSOP-28	C	$5.85	$4.65
LTC1348CG#TR	SSOP-28	C		$4.75
LTC1348CG#TRPBF	SSOP-28	C		$4.75
LTC1348CSW	SW-28	C	$5.45	$4.40
LTC1348CSW#PBF	SW-28	C	$5.45	$4.40
LTC1348CSW#TR	SW-28	C		$4.50
LTC1348CSW#TRPBF	SW-28	C		$4.50
LTC1348IG	SSOP-28	I	$6.75	$5.35
LTC1348IG#PBF	SSOP-28	I	$6.75	$5.35
LTC1348IG#TR	SSOP-28	I		$5.45
LTC1348IG#TRPBF	SSOP-28	I		$5.45
LTC1348ISW	SW-28	I	$6.25	$5.05
LTC1348ISW#PBF	SW-28	I	$6.25	$5.05
LTC1348ISW#TR	SW-28	I		$5.15
LTC1348ISW#TRPBF	SW-28	I		$5.15
