MSK196RH - MSK196RH是RH6105 Radiation Hardened Micropower Precision, Rail-to-Rail Input Current Sense Amplifier

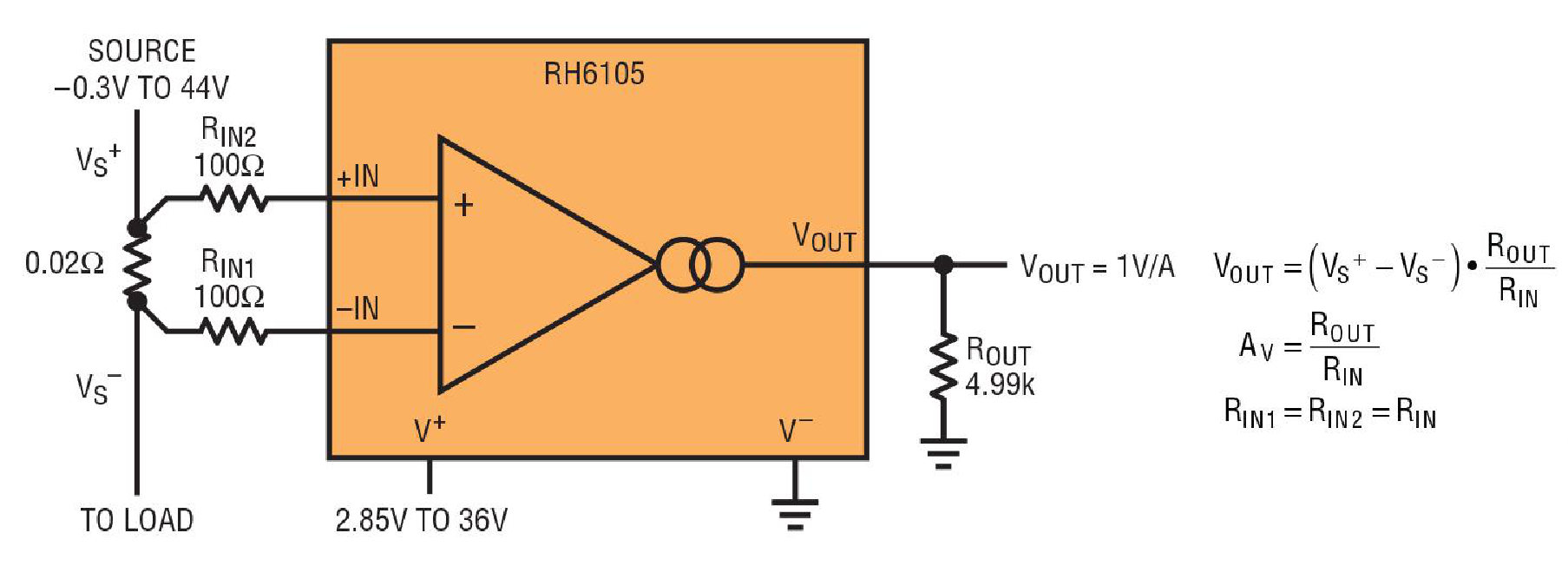

MSK196RH是LINEAR凌力尔特公司的一款合乎航天使用要求的放大器产品，MSK196RH是MSK196RH是RH6105 Radiation Hardened Micropower Precision, Rail-to-Rail Input Current Sense Amplifier，本站介绍了MSK196RH的封装应用图解、特点和优点、功能等，并给出了与MSK196RH相关的LINEAR元器件型号供参考。

MSK196RH - MSK196RH是RH6105 Radiation Hardened Micropower Precision, Rail-to-Rail Input Current Sense Amplifier - 合乎航天使用要求的放大器 - 航天和严酷环境 - 凌力尔特

MSK196RH - RH6105 Radiation Hardened Micropower Precision, Rail-to-Rail Input Current Sense Amplifier

RH6105 Radiation Hardened Micropower Precision, Rail-to-Rail Input Current Sense Amplifier - Linear Technology（凌力尔特）

功能描述

The RH6105 is a micropower, precision current sense amplifier with a very wide input common mode range. The RH6105 monitors unidirectional current via the voltage across an external sense resistor. The input common mode range extends from –0.3V to 44V, with respect to the negative supply voltage (V–). This allows the RH6105 to operate as a high side current sense monitor or a low side current sense monitor. It also allows the RH6105 to monitor current on a negative supply voltage, as well as continuously monitor a battery from full charge to depletion. The inputs of RH6105 can withstand differential voltages up to ±44V, which makes it ideal for monitoring a fuse or MOSFET switch.

The RH6105 can operate from an independent power supply of 2.85V to 36V. When V+ is powered down, the sense pins are biased off. This prevents loading of the monitored circuit, irrespective of the sense voltage. The RH6105 is currently available only from MS Kennedy in packaged form.

Third Party Vendor Availability

Linear Technology partners with third party vendors who assemble and test packaged products with LTC RH Dice inside.

Part NumberDescriptionMSK196RHRail To Rail Current Sense AmplifierViewMSK496RHQuad Rail-To-Rail Current Sense AmplifierMSK6000RHDual High Side Driver with Current Sense

特点

Processed in Compliance with LTC Certified MIL-PRF-38535 Class V Flow*

Very Wide, Over-the-Top, Input Common Mode Range - Extends 44V Above V– (Independent of V+) - Extends –0.3V Below V–

Wide Power Supply Range: 2.85V to 36V

Input Offset Voltage: 400μV Maximum

Gain Accuracy: 1% Maximum

Gain Configurable with External Resistors

High Impedance Sense Input When Powered Down

应用

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
