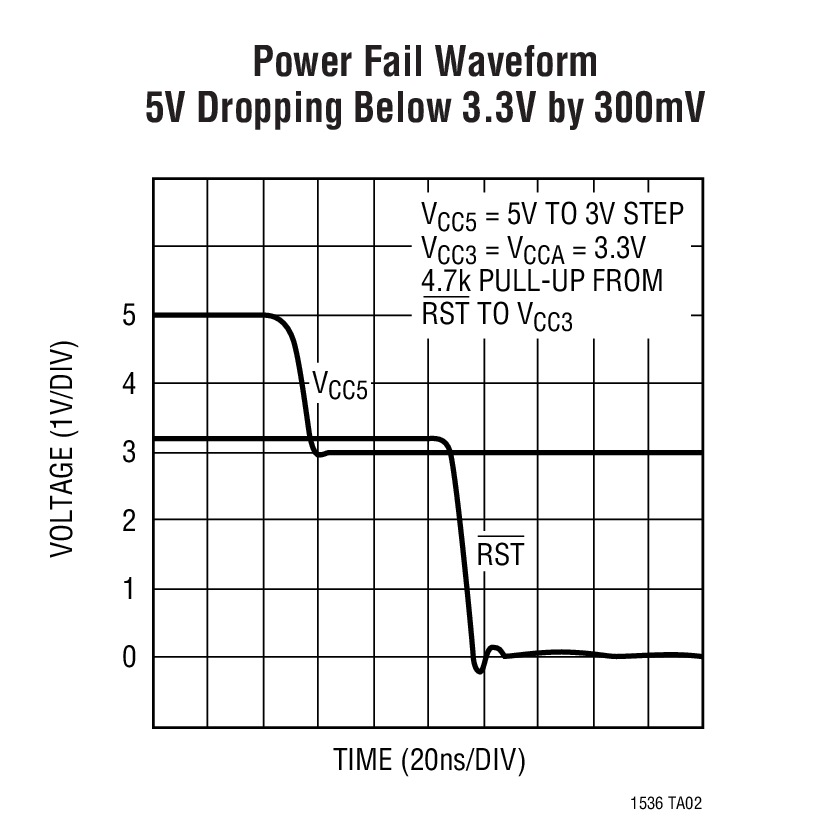

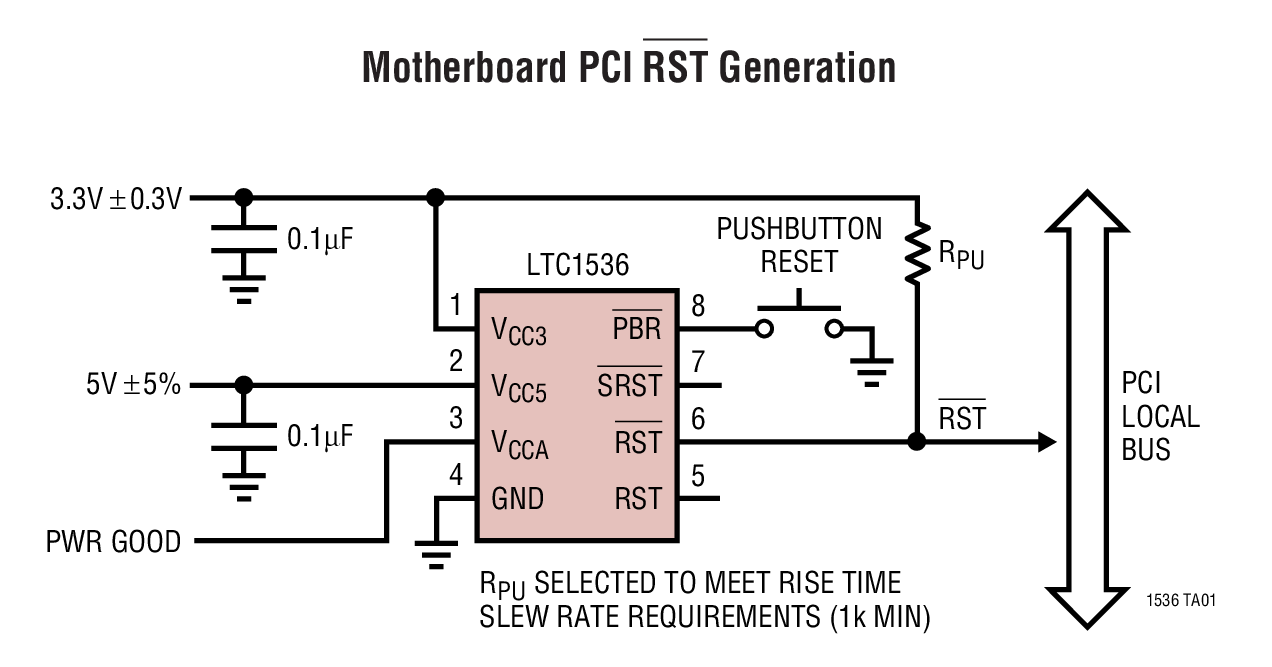

LTC1536 - 典型应用图例：

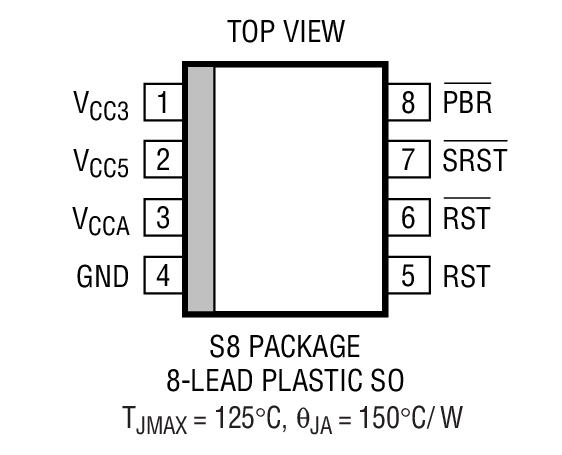

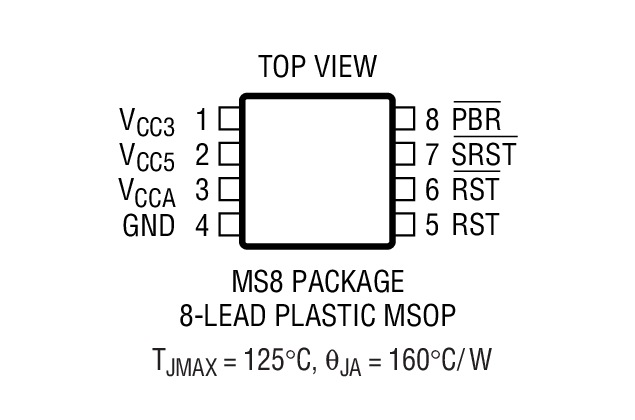

LTC1536 - 封装图解：

LTC1536 - LTC1536是Precision Triple Supply Monitor for PCI Applications

LTC1536是Linear公司的一款三电源监视器产品，LTC1536是Precision Triple Supply Monitor for PCI Applications，本站介绍了LTC1536的封装应用图解、特点和优点、功能等，并给出了与LTC1536相关的凌力尔特元器件型号供参考。

LTC1536 - Precision Triple Supply Monitor for PCI Applications

LTC1536 - Precision Triple Supply Monitor for PCI Applications - Linear Technology（凌力尔特）

功能描述

The LTC1536 is designed for PCI local bus applications with multiple supply voltages that require low power, small size, high speed and high accuracy supply monitoring. For 3.3V and 5V supplies that are >500mV below spec or for the condition when the 5V supply falls below the 3.3V supply, the LTC1536 has a very fast response time capable of meeting the PCI tFAIL timing specification. Tight 0.75% threshold accuracy and glitch immunity ensure reliable reset operation without false triggering. The RST output is guaranteed to be in the correct state for Vcc5 or Vcc3 down to 1V. The 100μA typical supply current makes the LTC1536 ideal for power-conscious systems. A manual pushbutton reset input provides the ability to generate a very narrow ?soft? reset pulse (100μs typ) or a 200ms reset pulse equivalent to a power-on reset. Both SRST and RST outputs are open-drain and can be OR-tied with other reset sources.

特点

Simultaneously Monitors 5V, 3.3V and Adjustable Inputs

Guaranteed Threshold Accuracy: ?0.75%

Low Supply Current: 100μA

Internal Reset Time Delay: 200ms

Manual Pushbutton Reset Input

Active Low and Active High Reset Outputs

Active Low ?Soft? Reset Output

Power Supply Glitch Immunity

Guaranteed Reset for Either Vcc3>/=1V or Vcc5 >/=1V

Meets PCI tFAIL Timing Specifications Rev 2.1

8-Pin SO and MSOP Packages

应用

PCI-Based Systems

Desktop Computers

Notebook Computers

Intelligent Instruments

Portable Battery-Powered Equipment

Network Servers
