LTC2247是14-Bit, 40Msps Low Power 3V ADC

Linear（凌力尔特）| Linear产品型号搜索

当前位置：Linear公司 > > 凌力尔特芯片 >> LTC2247

LTC2247技术文档下载：

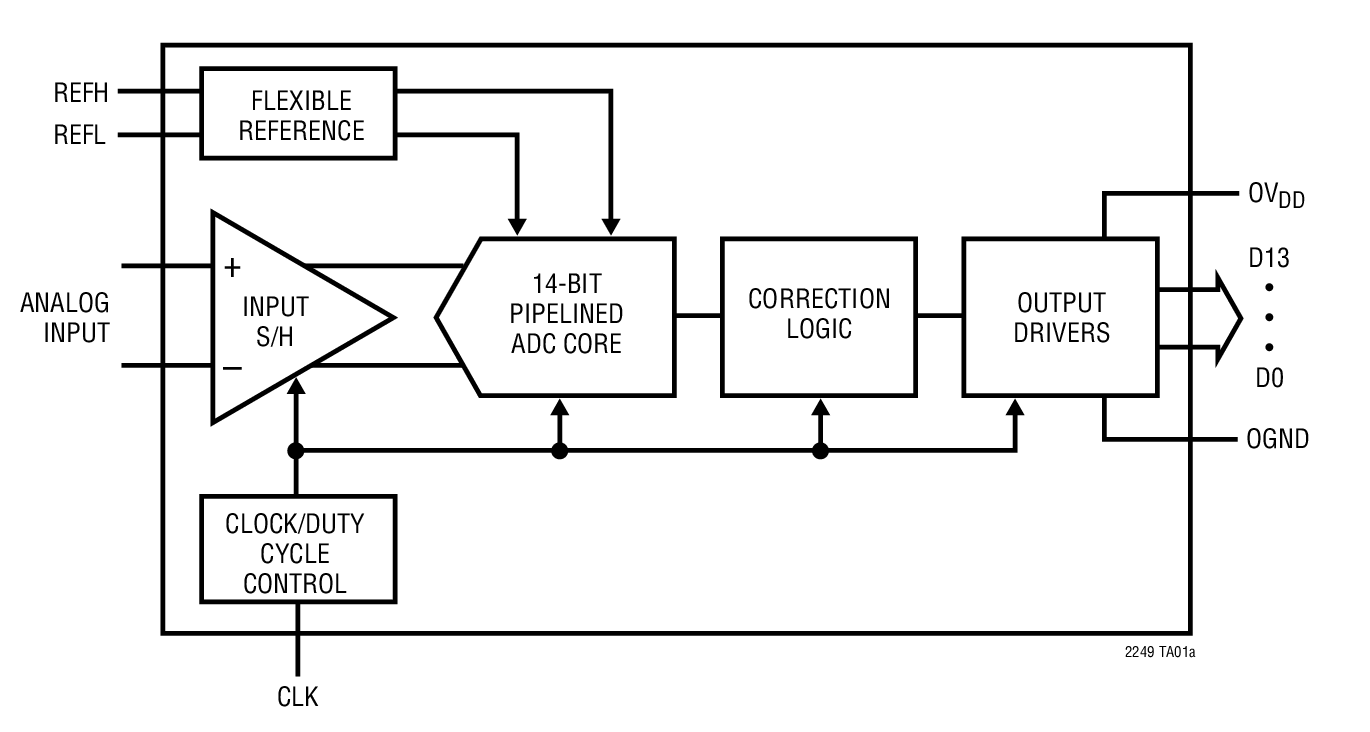

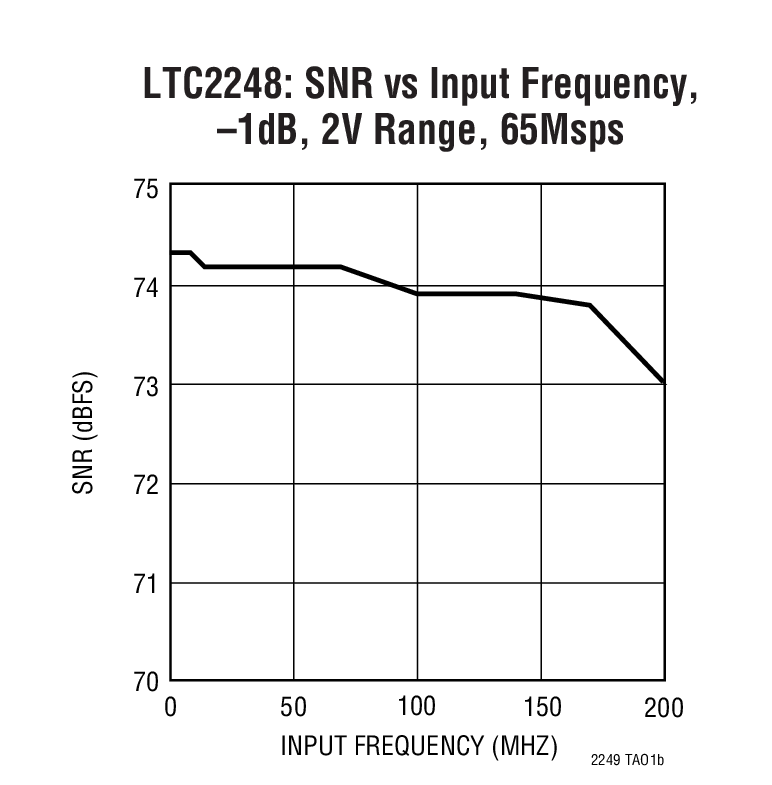

LTC2247 - 典型应用图例：

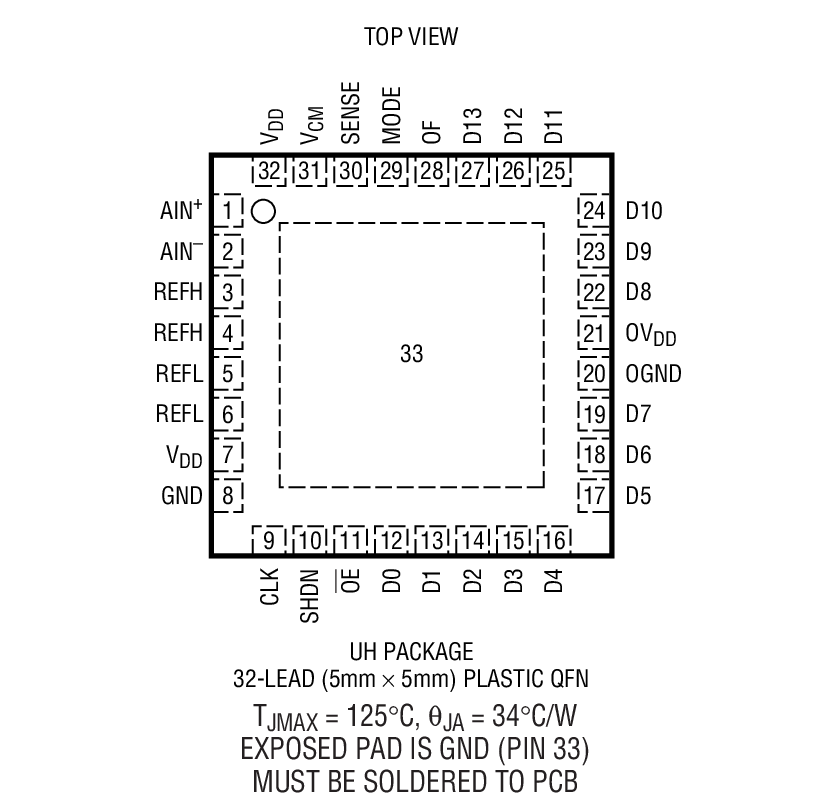

LTC2247 - 封装图解：

LTC2247 - LTC2247是14-Bit, 40Msps Low Power 3V ADC

LTC2247是Linear公司的一款高速 ADC产品，LTC2247是14-Bit, 40Msps Low Power 3V ADC，本站介绍了LTC2247的封装应用图解、特点和优点、功能等，并给出了与LTC2247相关的凌力尔特元器件型号供参考。

LTC2247 - 14-Bit, 40Msps Low Power 3V ADC

LTC2247 - 14-Bit, 40Msps Low Power 3V ADC - Linear Technology（凌力尔特）

功能描述

The LTC2248/LTC2247/LTC2246 are 14-bit 65Msps/40Msps/25Msps, low power 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2248/LTC2247/LTC2246 are perfect for demanding imaging and communications applications with AC performance that includes 74dB SNR and 80dB SFDR for signals well beyond the Nyquist frequency.

DC specs include ±1LSB INL (typ), ±0.5LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 1LSBRMS.

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic.

A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

特点

Sample Rate: 65Msps/40Msps/25Msps

Single 3V Supply (2.7V to 3.4V)

Low Power: 205mW/120mW/75mW

74.3dB SNR

90dB SFDR

No Missing Codes

Flexible Input: 1VP-P to 2VP-P Range

575MHz Full Power Bandwidth S/H

Clock Duty Cycle Stabilizer

Shutdown and Nap Modes

Pin Compatible Family125Msps: LTC2253 (12-Bit), LTC2255 (14-Bit)105Msps: LTC2252 (12-Bit), LTC2254 (14-Bit)80Msps: LTC2229 (12-Bit), LTC2249 (14-Bit)65Msps: LTC2228 (12-Bit), LTC2248 (14-Bit)40Msps: LTC2227 (12-Bit), LTC2247 (14-Bit)25Msps: LTC2226 (12-Bit), LTC2246 (14-Bit)10Msps: LTC2225 (12-Bit), LTC2245 (14-Bit)

32-Pin (5mm × 5mm) QFN Package

应用

Wireless and Wired Broadband Communication

Imaging Systems

Ultrasound

Spectral Analysis

Portable Instrumentation

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC2247CUH	5x5 QFN-32	C	$21.93	$15.85
LTC2247CUH#PBF	5x5 QFN-32	C	$21.93	$15.85
LTC2247CUH#TR	5x5 QFN-32	C		$15.95
LTC2247CUH#TRPBF	5x5 QFN-32	C		$15.95
LTC2247IUH	5x5 QFN-32	I	$26.28	$19.00
LTC2247IUH#PBF	5x5 QFN-32	I	$26.28	$19.00
LTC2247IUH#TR	5x5 QFN-32	I		$19.10
LTC2247IUH#TRPBF	5x5 QFN-32	I		$19.10
