LTC4401-1 - LTC4401-1是RF Power Controllers with 250kHz Loop BW and 45dB Dynamic Range
LTC4401-1是Linear公司的一款功率放大器控制器产品，LTC4401-1是RF Power Controllers with 250kHz Loop BW and 45dB Dynamic Range，本站介绍了LTC4401-1的封装应用图解、特点和优点、功能等，并给出了与LTC4401-1相关的凌力尔特元器件型号供参考。
LTC4401-1 - RF Power Controllers with 250kHz Loop BW and 45dB Dynamic Range
LTC4401-1 - RF Power Controllers with 250kHz Loop BW and 45dB Dynamic Range - Linear Technology（凌力尔特）
功能描述

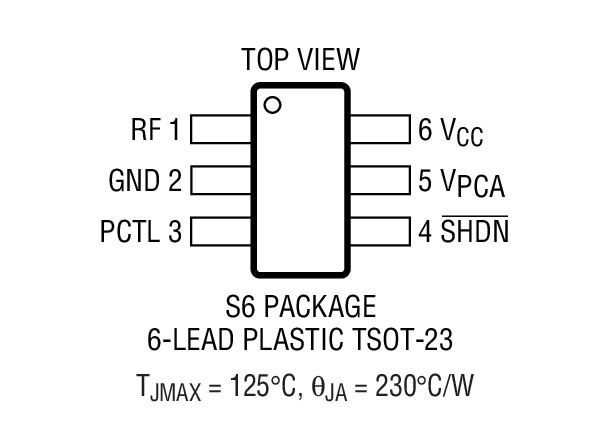

The LTC4401-1 is a SOT-23 RF power controller for slow turn-on RF power amplifiers operating in the 300MHz to 2.7GHz range. The loop bandwidth is set at 250kHz to improve frequency stability when controlling slow turn-on RF power amplifiers such as the Conexant CX77301/CX77302, CX77304, CX77314, Anadigics AWT6107 and the RF Micro Devices RF3160.

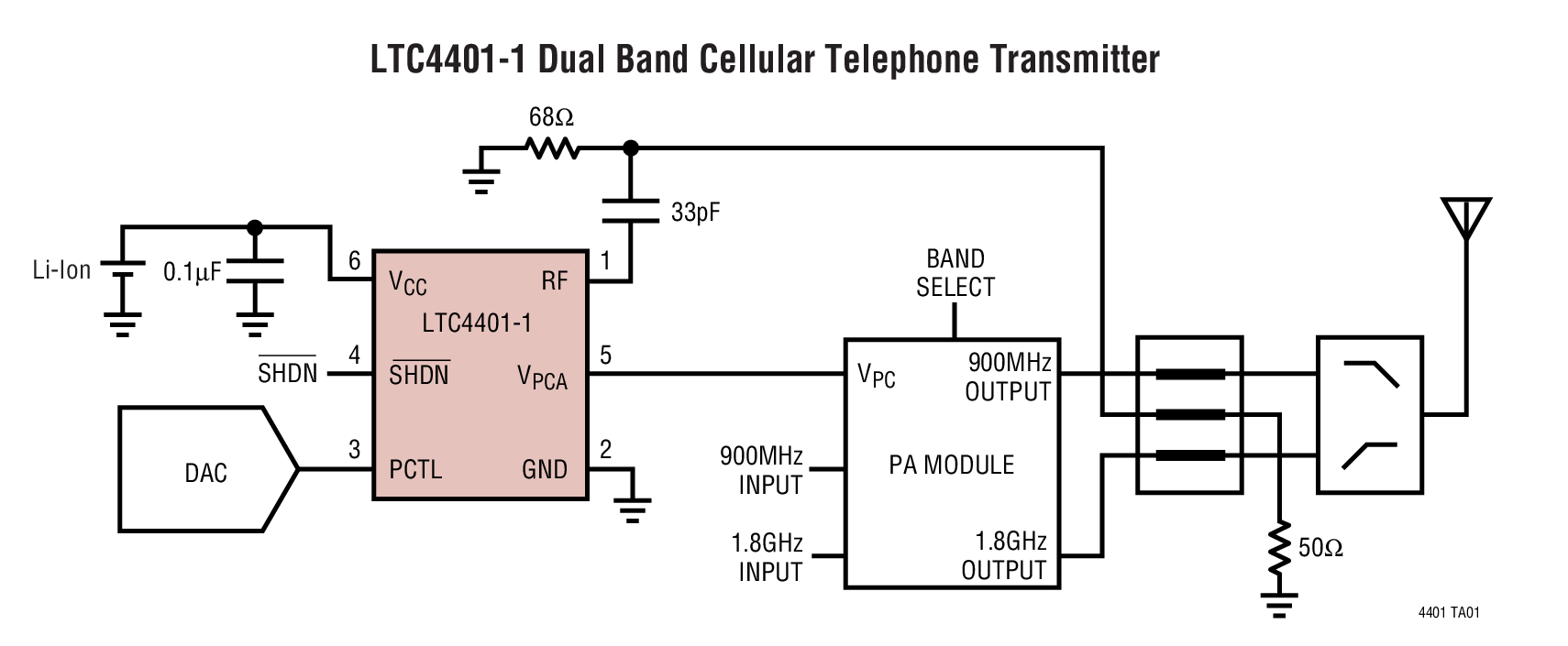

RF power is controlled by driving the RF amplifier power control pins and sensing the resultant RF output power via a directional coupler. The RF sense voltage is peak detected using an on-chip Schottky diode. This detected voltage is compared to the DAC voltage at the PCTL pin to control the output power. The RF power amplifier is protected against high power control pin voltages.
Internal and external offsets are cancelled over temperature by an autozero control loop, allowing accurate low power programming. The shutdown feature disables the part and reduces the supply current to <10µA.

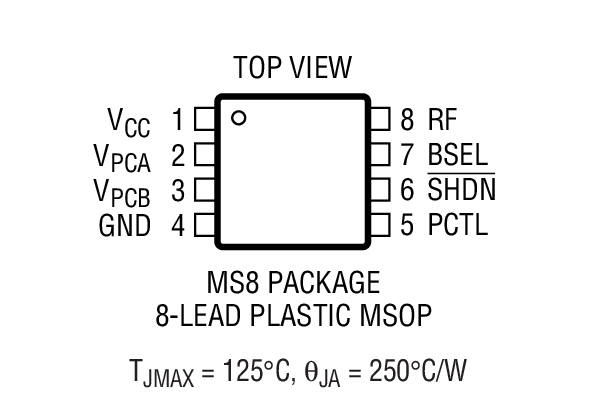

A dual control channel version (LTC4401-2) is also available in an 8-pin MSOP package.
特点
RF Power Amplifier Control in ThinSOT™ Package Internal Schottky Diode Detector with > 45dB Range Wide Input Frequency Range:300MHz to 2.7GHz (LTC4401-1)300MHz to 2GHz (LTC4401-2) Autozero Loop Cancels Offset Errors and Temperature Dependent Offsets Wide VCC Range: 2.7V to 6V Automatic Bandwidth Control Improves Low Power Ramp Response Allows Direct Connection to Battery RF Output Power Set by External DAC Internal Frequency Compensation Rail-to-Rail Power Control Output Power Control Signal Overvoltage Protection Low Operating Current: 1mA Low Shutdown Current: 10µA Two Pole PCTL Input Filtering Low Profile (1mm) SOT-23 (ThinSOT™) (LTC4401-1) and 8-Pin MSOP (LTC4401-2) Packages应用
GSM/GPRS Cellular Telephones PCS Devices Wireless Data Modems U.S. TDMA Cellular Phones以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LTC4401-1ES6 | SOT-23 | E | $1.47 | |
| LTC4401-1ES6#PBF | SOT-23 | E | $1.47 | |
| LTC4401-1ES6#TR | SOT-23 | E | $1.47 | $1.25 |
| LTC4401-1ES6#TRM | SOT-23 | E | $1.47 | $1.27 |
| LTC4401-1ES6#TRMPBF | SOT-23 | E | $1.47 | $1.27 |
| LTC4401-1ES6#TRPBF | SOT-23 | E | $1.47 | $1.25 |
