当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC4241
LTC4241技术文档下载：
LTC4241技术文档产品手册下载
LTC4241 - 典型应用图例：

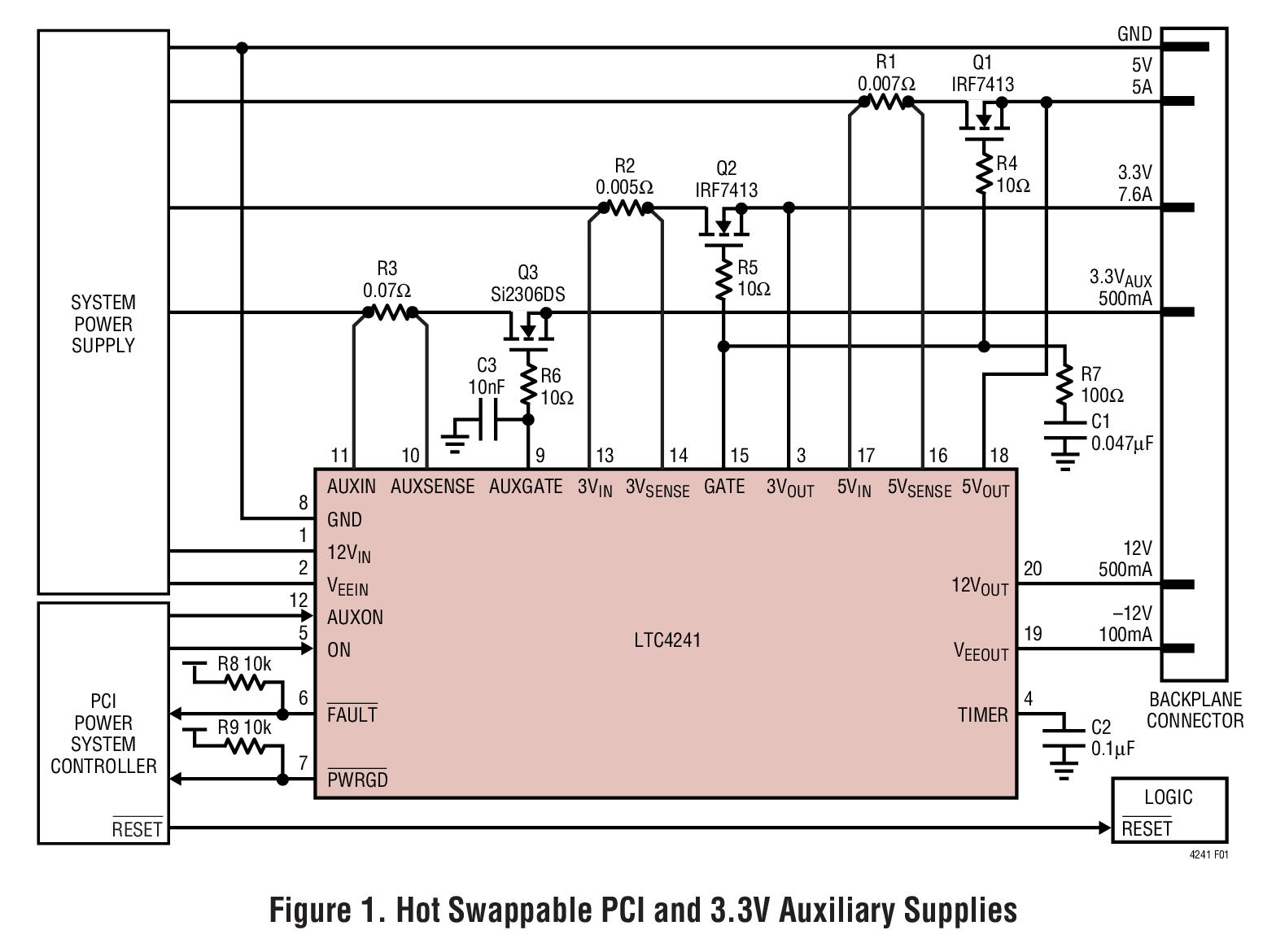

LTC4241典型应用图例一
LTC4241 - 封装图解：

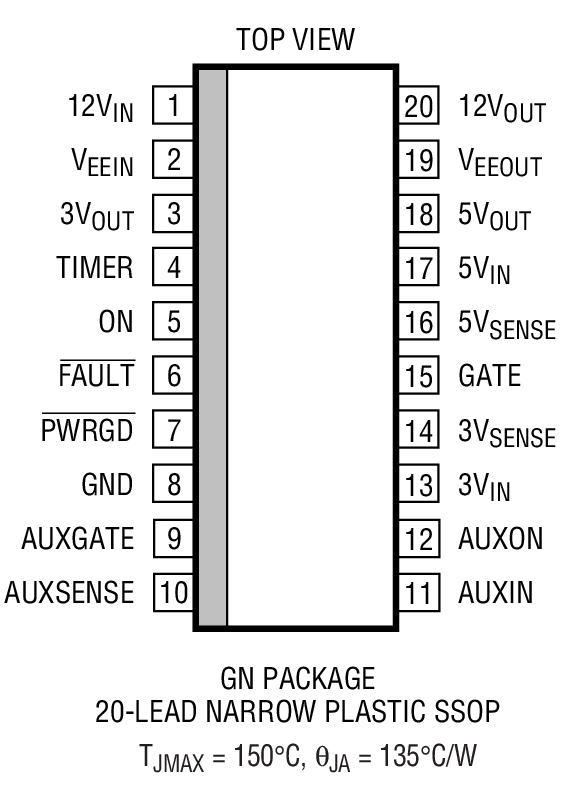

LTC4241封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC4241介绍

LTC4241 - LTC4241是PCI-Bus with 3.3V Auxiliary Hot Swap Controller

LTC4241是LINEAR凌力尔特公司的一款PCI 热插拔控制器产品，LTC4241是LTC4241是PCI-Bus with 3.3V Auxiliary Hot Swap Controller，本站介绍了LTC4241的封装应用图解、特点和优点、功能等，并给出了与LTC4241相关的LINEAR元器件型号供参考。

LTC4241 - LTC4241是PCI-Bus with 3.3V Auxiliary Hot Swap Controller - PCI 热插拔控制器 - 监视、控制和保护 - 凌力尔特

LTC4241 - PCI-Bus with 3.3V Auxiliary Hot Swap Controller

LTC4241 - PCI-Bus with 3.3V Auxiliary Hot Swap Controller - Linear Technology（凌力尔特）

功能描述

The LTC4241 is a Hot Swap controller that allows a board to be safely inserted and removed from a live PCI-bus slot. It has a primary controller that controls the four PCI supplies and an independent auxiliary controller to controlthe 3.3V auxiliary supply. External N-channel transistors are used to control the 3.3V, 5V and 3.3V auxiliary supplies while on-chip switches control the –12V and 12V supplies. The 3.3V, 5V and 3.3V auxiliary supplies can be ramped upat an adjustable rate. Electronic circuit breakers protect all five supplies against overcurrent faults. The foldback current limit feature reduces current spikes and power dissipation when shorts occur. The PWRGD output of the primary controller indicates when all four PCI supplies are within tolerance. The FAULT output indicates an overcurrent condition for any of the five supplies.

The LTC4241 is available in the 20-pin narrow SSOP package.

特点
  • Allows Safe Board Insertion and Removal from a Live PCI Slot
  • Controls 3.3V, 5V, –12V, 12V and 3.3V Auxiliary Supplies
  • Independent 3.3V Auxiliary Supply Hot Swap™ Controller
  • Adjustable Foldback Current Limit with Circuit Breaker
  • Adjustable Supply Voltage Power-Up Rate
  • High Side Drive for External N-Channel FETs
  • –12V and 12V On-Chip Switches
  • Fault and Power Good Outputs
    • 应用
  • PCI-Based Servers
  • Computer Systems
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC4241CGN SSOP-20 C $2.15 $1.75
    LTC4241CGN#PBF SSOP-20 C $2.15 $1.75
    LTC4241CGN#TR SSOP-20 C $1.81
    LTC4241CGN#TRPBF SSOP-20 C $1.81
    LTC4241IGN SSOP-20 I $2.55 $2.05
    LTC4241IGN#PBF SSOP-20 I $2.55 $2.05
    LTC4241IGN#TR SSOP-20 I $2.11
    LTC4241IGN#TRPBF SSOP-20 I $2.11
