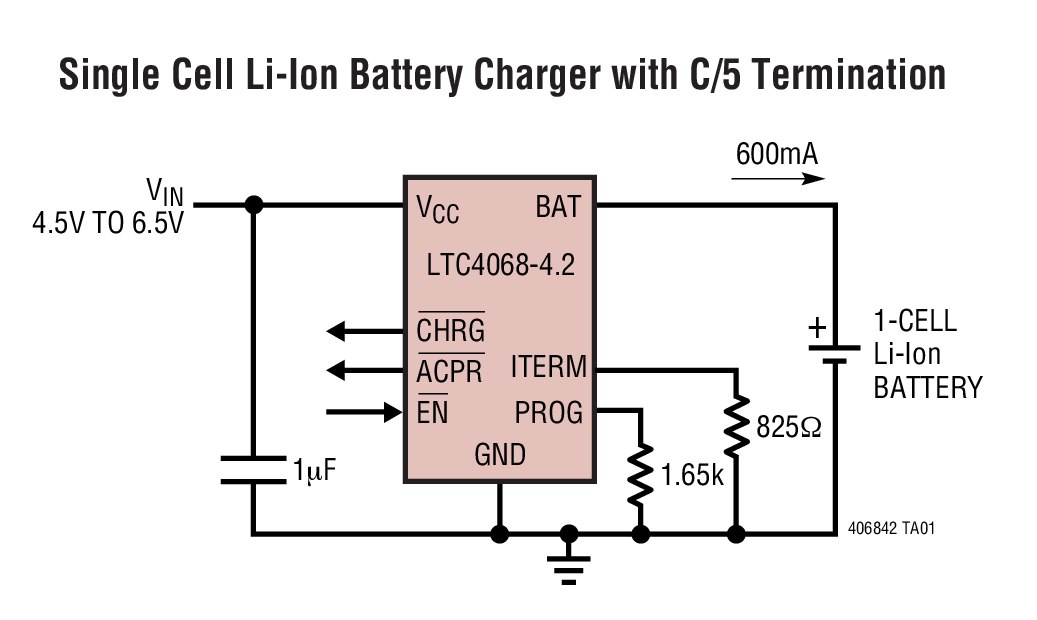

LTC4068-4.2典型应用图例一

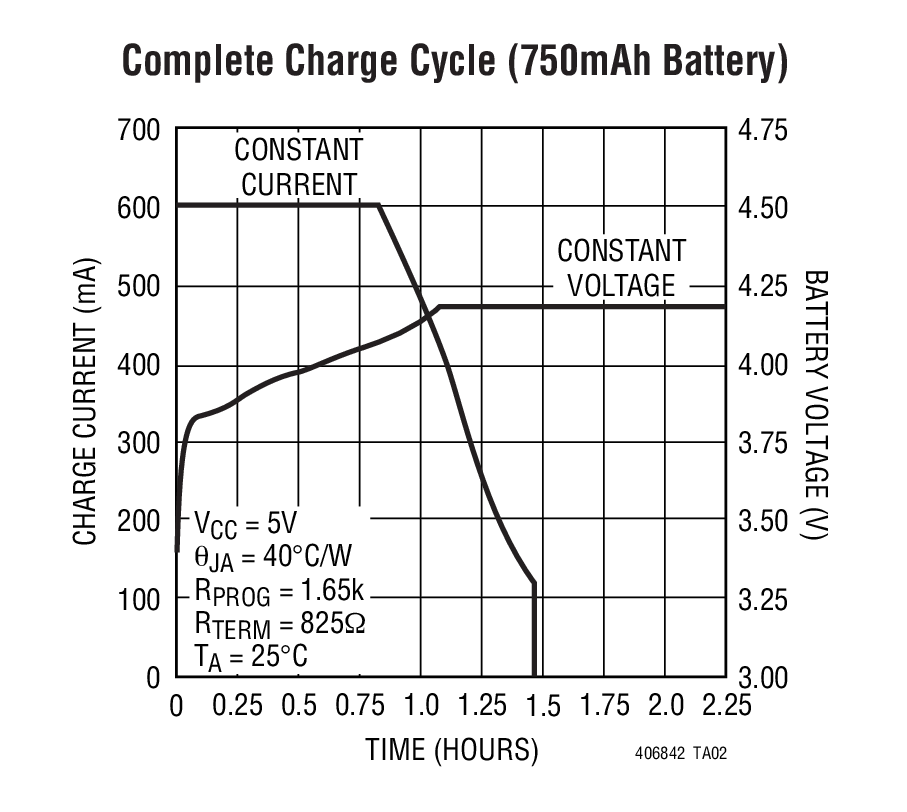

LTC4068-4.2典型应用图例二
LTC4068-4.2 - 封装图解：

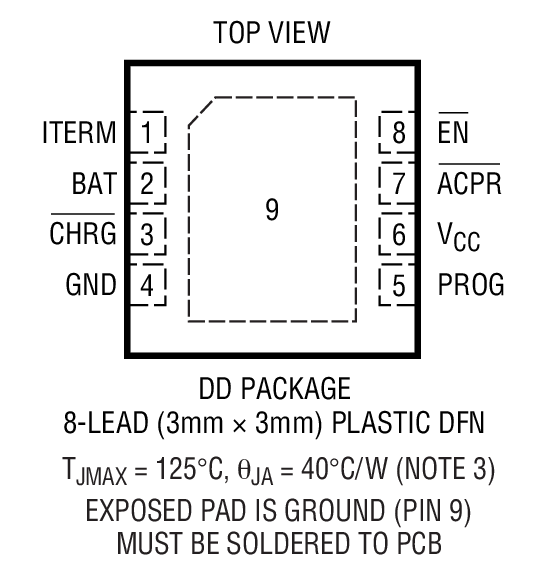

LTC4068-4.2封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC4068-4.2介绍

LTC4068-4.2 - LTC4068-4.2是Standalone Linear Li-Ion Battery Charger with Programmable Termination

LTC4068-4.2是LINEAR凌力尔特公司的一款线性充电器产品，LTC4068-4.2是LTC4068-4.2是Standalone Linear Li-Ion Battery Charger with Programmable Termination，本站介绍了LTC4068-4.2的封装应用图解、特点和优点、功能等，并给出了与LTC4068-4.2相关的LINEAR元器件型号供参考。

LTC4068-4.2 - LTC4068-4.2是Standalone Linear Li-Ion Battery Charger with Programmable Termination - 线性充电器 - 电源管理 - 凌力尔特

LTC4068-4.2 - Standalone Linear Li-Ion Battery Charger with Programmable Termination

LTC4068-4.2 - Standalone Linear Li-Ion Battery Charger with Programmable Termination - Linear Technology（凌力尔特）

功能描述

The LTC4068 is a complete constant-current/constantvoltage linear charger for single cell lithium-ion batteries. Its DFN package and low external component count make the LTC4068 ideally suited for portable applications. Furthermore, the LTC4068 is designed to work within USB power specifications.

No external sense resistor or external blocking diode are required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature conditions. The charge voltage is fixed at 4.2V and the charge current is programmed with a resistor. The LTC4068 terminates the charge cycle when the charge current drops below the programmed termination threshold after the final float voltage is reached.

When the input supply (wall adapter or USB supply) is removed, the LTC4068 enters a low current state dropping the battery drain current to less than 2µA. Other features include charge current monitor, undervoltage lockout, automatic recharge and status pins to indicate charge termination and the presence of adequate input voltage.

Protected by U.S. Patents, including 6522118.

特点
  • Programmable Charge Current Up to 950mA
  • Complete Linear Charger in DFN Package
  • No MOSFET, Sense Resistor or Blocking Diode Required
  • Thermal Regulation Maximizes Charge Rate Without Risk of Overheating*
  • Charges Directly from a USB Port
  • Programmable Charge Current Termination
  • Preset 4.2V Charge Voltage with ±1% Accuracy
  • Charge Current Monitor Output for Gas Gauging*
  • Automatic Recharge
  • Charge Status Output
  • “AC Present” Output
  • 2.9V Trickle Charge Threshold (LTC4068)
  • Available Without Trickle Charge (LTC4068X)
  • Soft-Start Limits Inrush Current
  • Low Profile (3mm x 3mm x 0.75mm) DFN Package
    • 应用
  • Cellular Telephones, PDAs, MP3 Players
  • Bluetooth Applications
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC4068EDD-4.2 3x3 DFN-8 E $2.41 $1.70
    LTC4068EDD-4.2#PBF 3x3 DFN-8 E $2.41 $1.70
    LTC4068EDD-4.2#TR 3x3 DFN-8 E $1.80
    LTC4068EDD-4.2#TRPBF 3x3 DFN-8 E $1.80
    LTC4068XEDD-4.2 3x3 DFN-8 E $2.41 $1.70
    LTC4068XEDD-4.2#PBF 3x3 DFN-8 E $2.41 $1.70
    LTC4068XEDD-4.2#TR 3x3 DFN-8 E $1.80
    LTC4068XEDD-4.2#TRPBF 3x3 DFN-8 E $1.80
