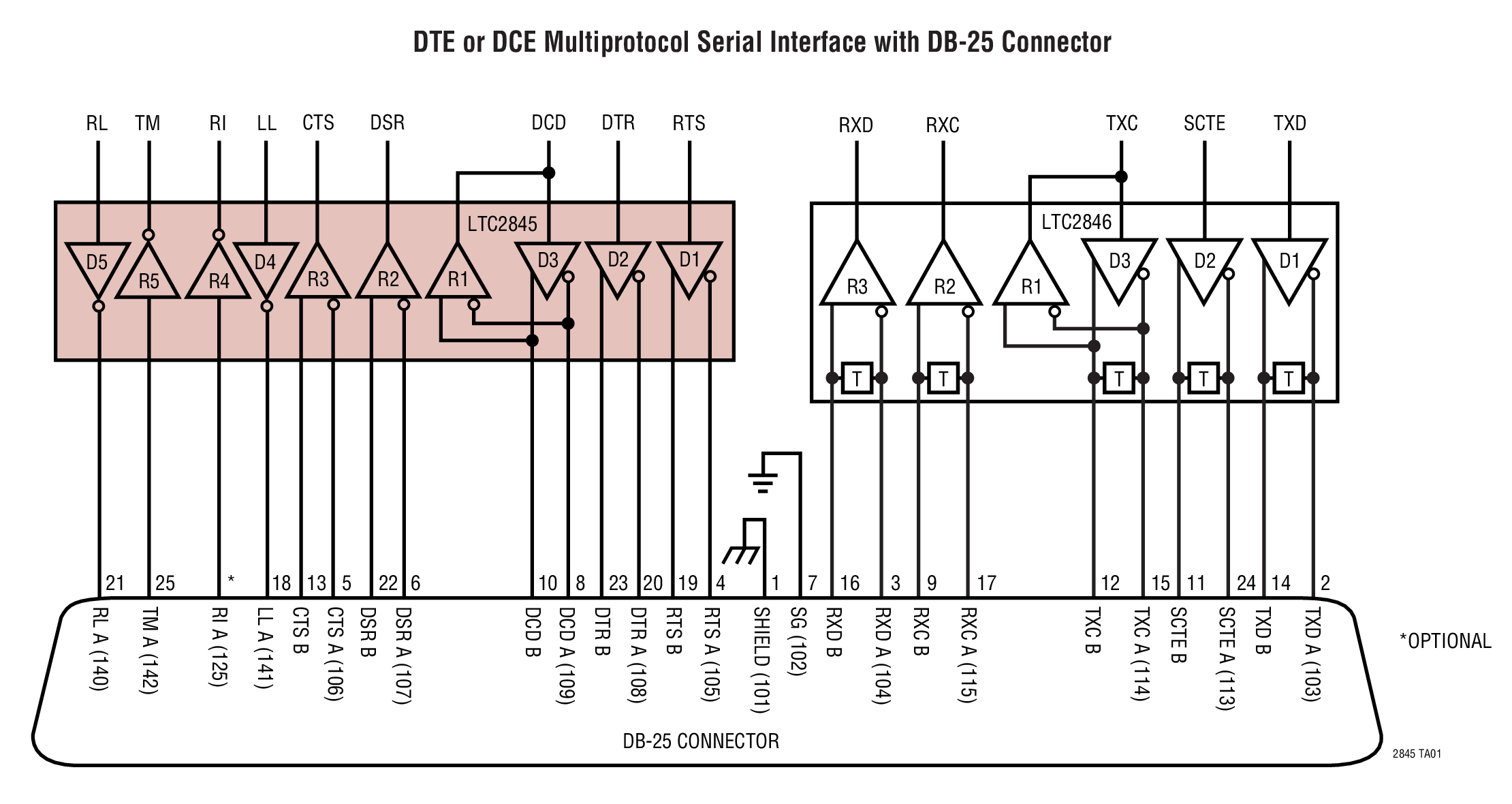

LTC2845 - 典型应用图例：

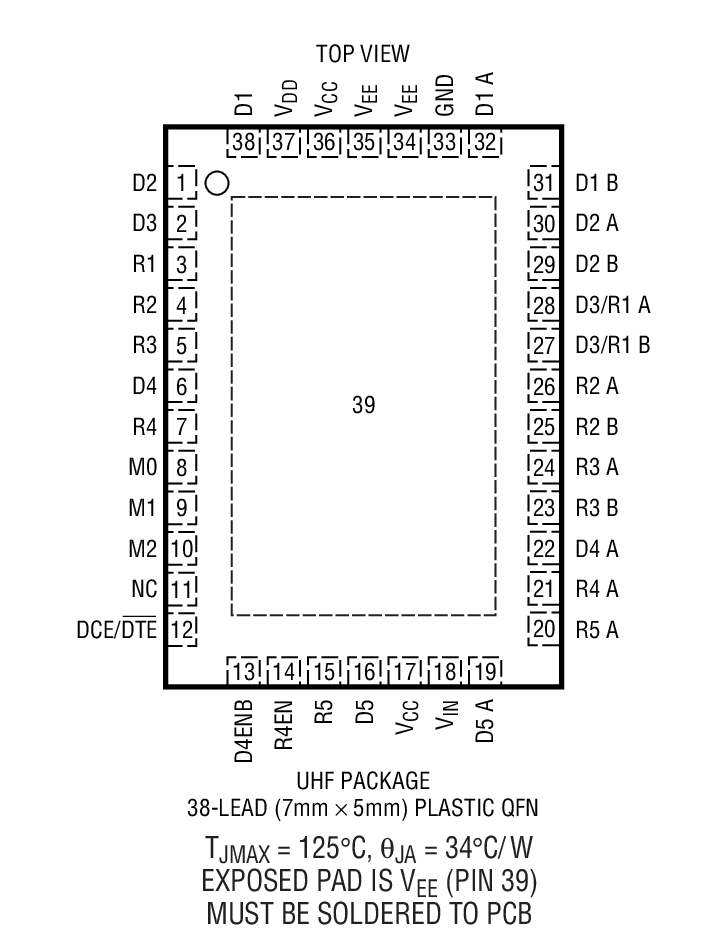

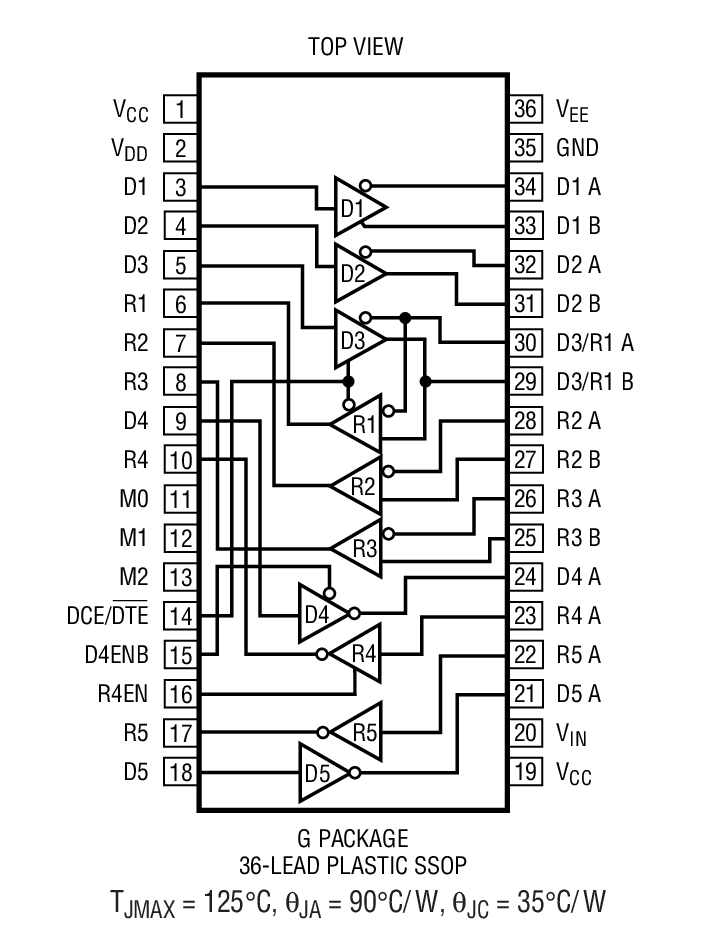

LTC2845 - 封装图解：

LTC2845 - LTC2845是3.3V 软件可选多协议收发器

LTC2845是Linear公司的一款多协议收发器产品，LTC2845是3.3V 软件可选多协议收发器，本站介绍了LTC2845的封装应用图解、特点和优点、功能等，并给出了与LTC2845相关的凌力尔特元器件型号供参考。

LTC2845 - 3.3V 软件可选多协议收发器

LTC2845 - 3.3V 软件可选多协议收发器 - Linear Technology（凌力尔特）

功能描述

The LTC2845 is a 5-driver/5-receiver multiprotocol transceiver. The LTC2845 and LTC2846 form the core of a complete software-selectable DTE or DCE interface port that supports the RS232, RS449, EIA530, EIA530-A, V.35, V.36 or X.21 protocols.

The LTC2845 operates from a 3.3V supply and supplies provided by the LTC2846. This part is available in a 36-lead SSOP and 38-lead (7mm x 5mm) QFN package. The LTC2845 and LTC2847 in QFN packages offer the smallest multiprotocol serial port available.

特点

Software-Selectable Transceiver Supports: RS232, RS449, EIA530, EIA530-A, V.35, V.36, X.21

Operates from Single 3.3V Supply with LTC2846 or a Single 5V Supply with 3.3V Logic with LTC2847

TUV Rheinland of North America Inc. Certified NET1, NET2 and TBR2 Compliant, Report No.: TBR2/050101/02

Complete DTE or DCE Port with LTC2846 or LTC2847

Available in a 36-Lead Narrow (0.209 inch) SSOP and 38-Lead (7mm x 5mm) QFN package

应用

Data Networking

CSU and DSU

Data Routers

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC2845CG	SSOP-36	C	$8.00	$6.75
LTC2845CG#PBF	SSOP-36	C	$8.00	$6.75
LTC2845CG#TR	SSOP-36	C		$6.83
LTC2845CG#TRPBF	SSOP-36	C		$6.83
LTC2845CUHF	5x7 QFN-38	C	$9.60	$7.00
LTC2845CUHF#PBF	5x7 QFN-38	C	$9.60	$7.00
LTC2845CUHF#TR	5x7 QFN-38	C		$7.10
LTC2845CUHF#TRPBF	5x7 QFN-38	C		$7.10
LTC2845IG	SSOP-36	I	$9.15	$7.75
LTC2845IG#PBF	SSOP-36	I	$9.15	$7.75
LTC2845IG#TR	SSOP-36	I		$7.83
LTC2845IG#TRPBF	SSOP-36	I		$7.83
LTC2845IUHF	5x7 QFN-38	I	$11.35	$8.30
LTC2845IUHF#PBF	5x7 QFN-38	I	$11.35	$8.30
LTC2845IUHF#TR	5x7 QFN-38	I		$8.40
LTC2845IUHF#TRPBF	5x7 QFN-38	I		$8.40
